Operation
6.2 Aligning the SIMATIC MV325 reader
SIMATIC MV320 / SIMATIC MV325
Operating Instructions, 08/2015, C79000-G8976-C352-03
31
Aligning the SIMATIC MV325 reader
1. Press a button or the trigger button of the reader.
2. Hold down the button or trigger button.

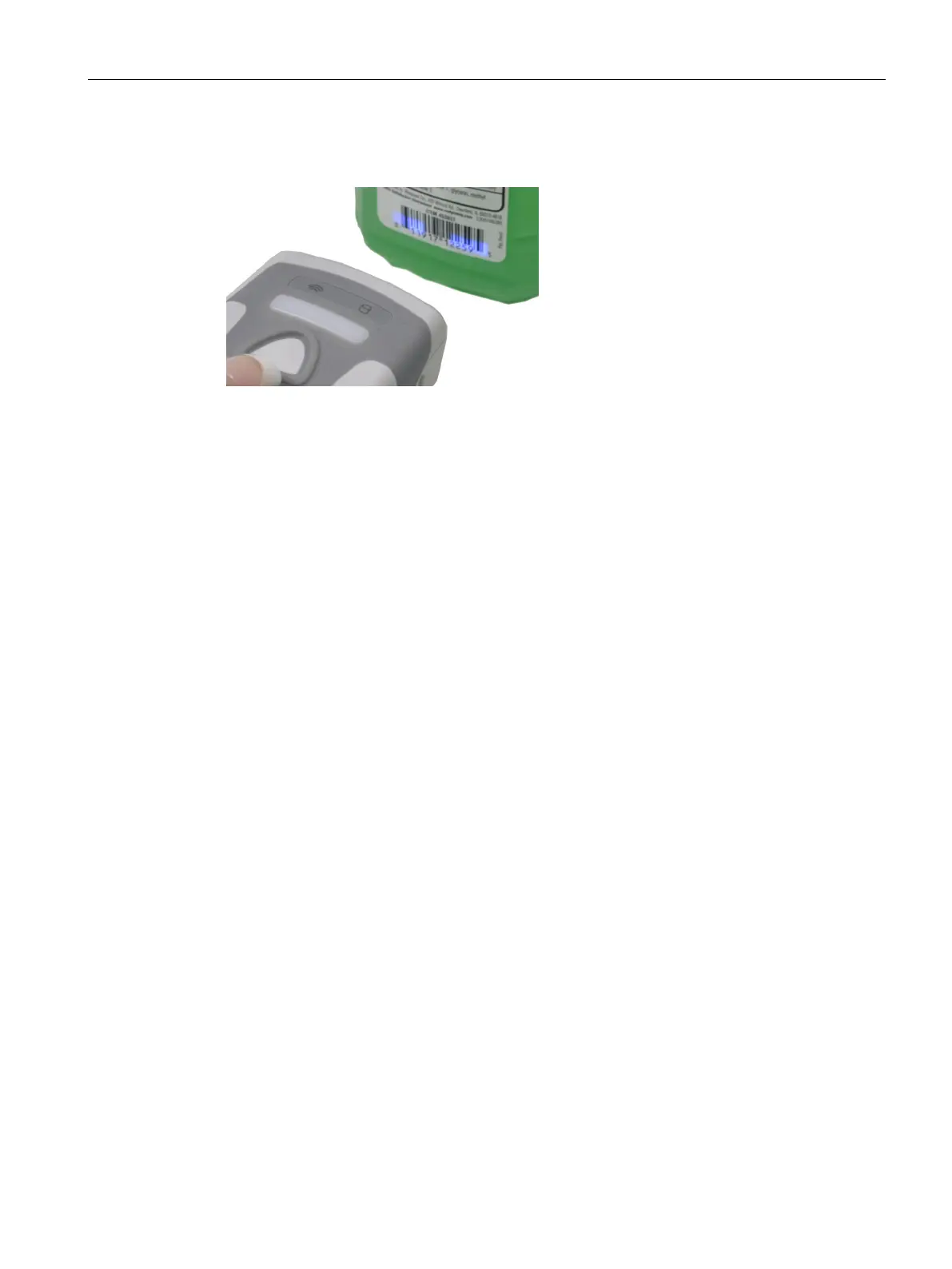

The two blue beams sent out by the reader are used for targeting.
3. The blue beams must be directed to the center of the barcode.
If the barcode is in the viewing field of the device and at the optimum read distance
(approximately 10 cm from the device), the barcode will be read automatically.
The reader beeps and vibrates and the read confirmation LED flashes green.
