Installing and connecting (SIMATIC MV325)
3.3 Charging station with base plate secured to a working surface
SIMATIC MV320 / SIMATIC MV325
Operating Instructions, 08/2015, C79000-G8976-C352-03
19
Charging station with base plate secured to a working surface
1. Insert the USB cable or power cable with the cylindrical side into the charging station.

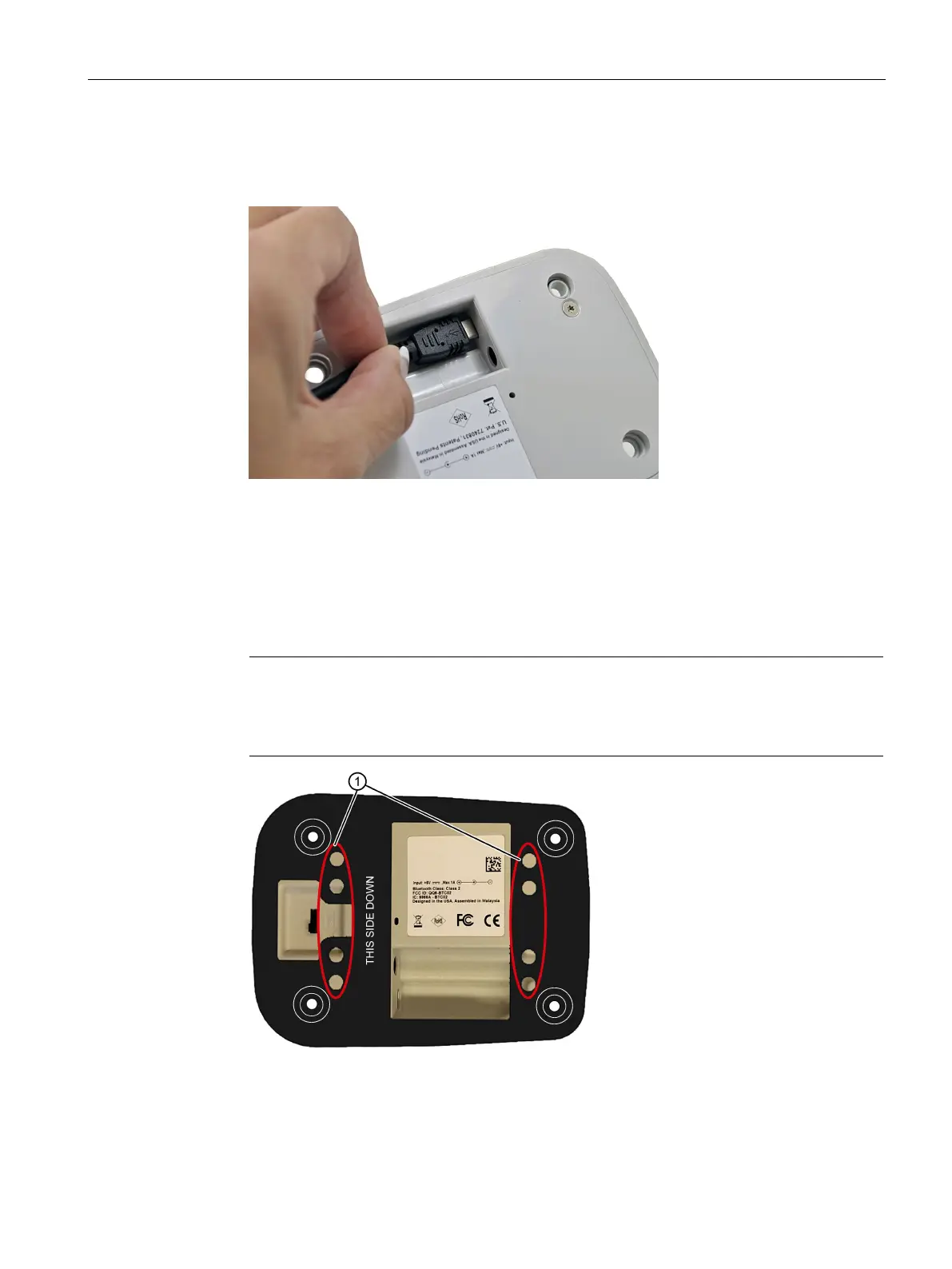

Figure 3-8 Inserting the USB cable/power cable into the charging station
To mount the charging station on a working surface:
2. Lay the side of the base plate marked with "THIS SIDE DOWN" on the supporting
surface.
3. Secure the base plate to the working surface with screws through the pre-drilled mounting
holes
①.
Note
Mounting screws are not supplied with the product
Since the mounting surfaces can differ, the mounting screws are not sup
plied with the
Figure 3-9 Base plate: Mounting holes
