Installing and connecting (SIMATIC MV325)
3.2 Mounting the charging station with base plate and rubber feet
SIMATIC MV320 / SIMATIC MV325
18 Operating Instructions, 08/2015, C79000-G8976-C352-03
5. To prevent the charging station from slipping: Secure the rubber feet to the round
markers
③ on the underside of the base plate.

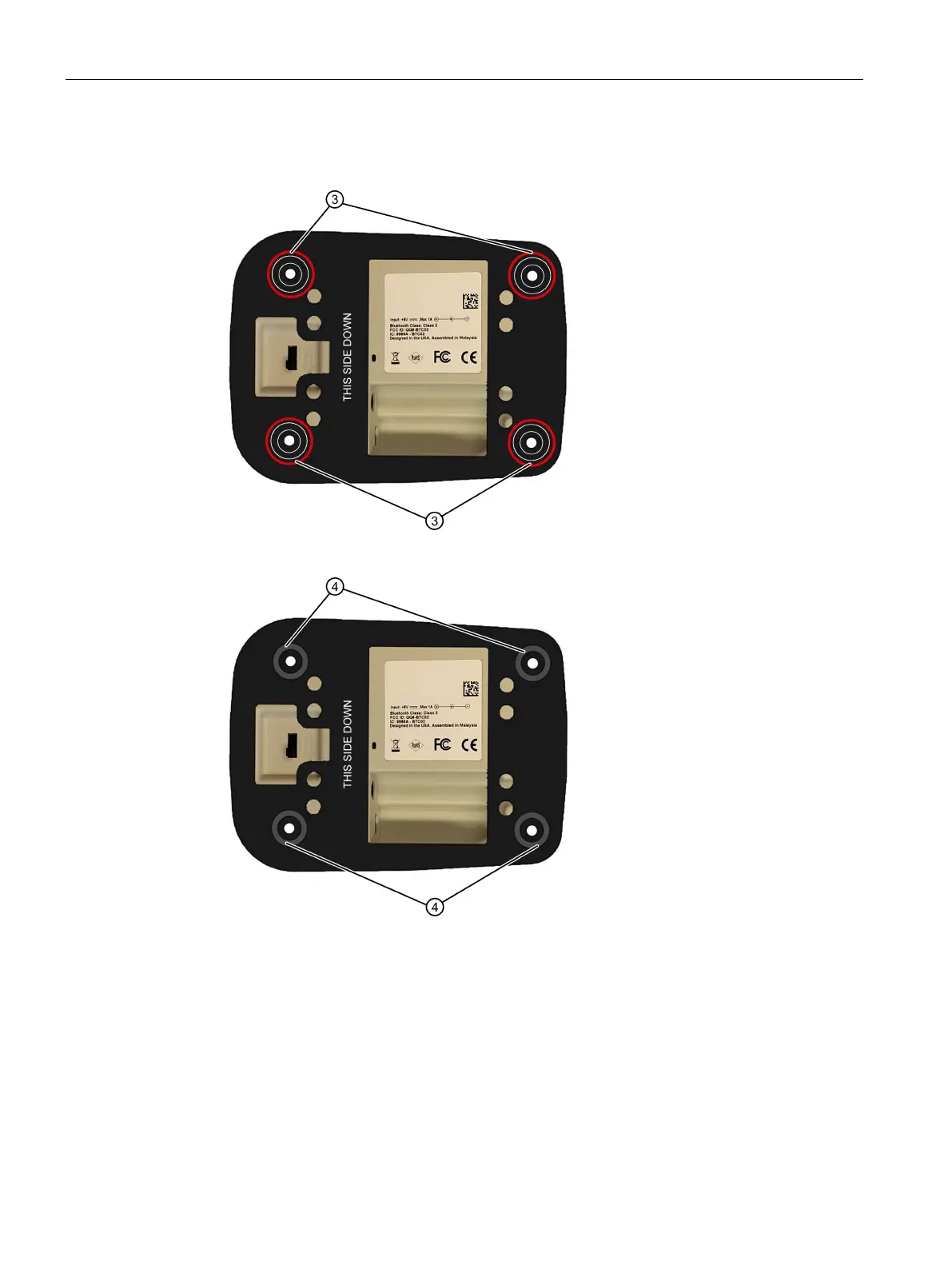

Figure 3-6 Base plate: Rubber feet markers ③
Figure 3-7 Base plate: Rubber feet ④ secured
The charging station is ready for use.
