Installing and connecting (SIMATIC MV325)
3.2 Mounting the charging station with base plate and rubber feet
SIMATIC MV320 / SIMATIC MV325
Operating Instructions, 08/2015, C79000-G8976-C352-03
17
4. Secure the charging station with the supplied screws ② in the threaded holes ① of the
base plate.

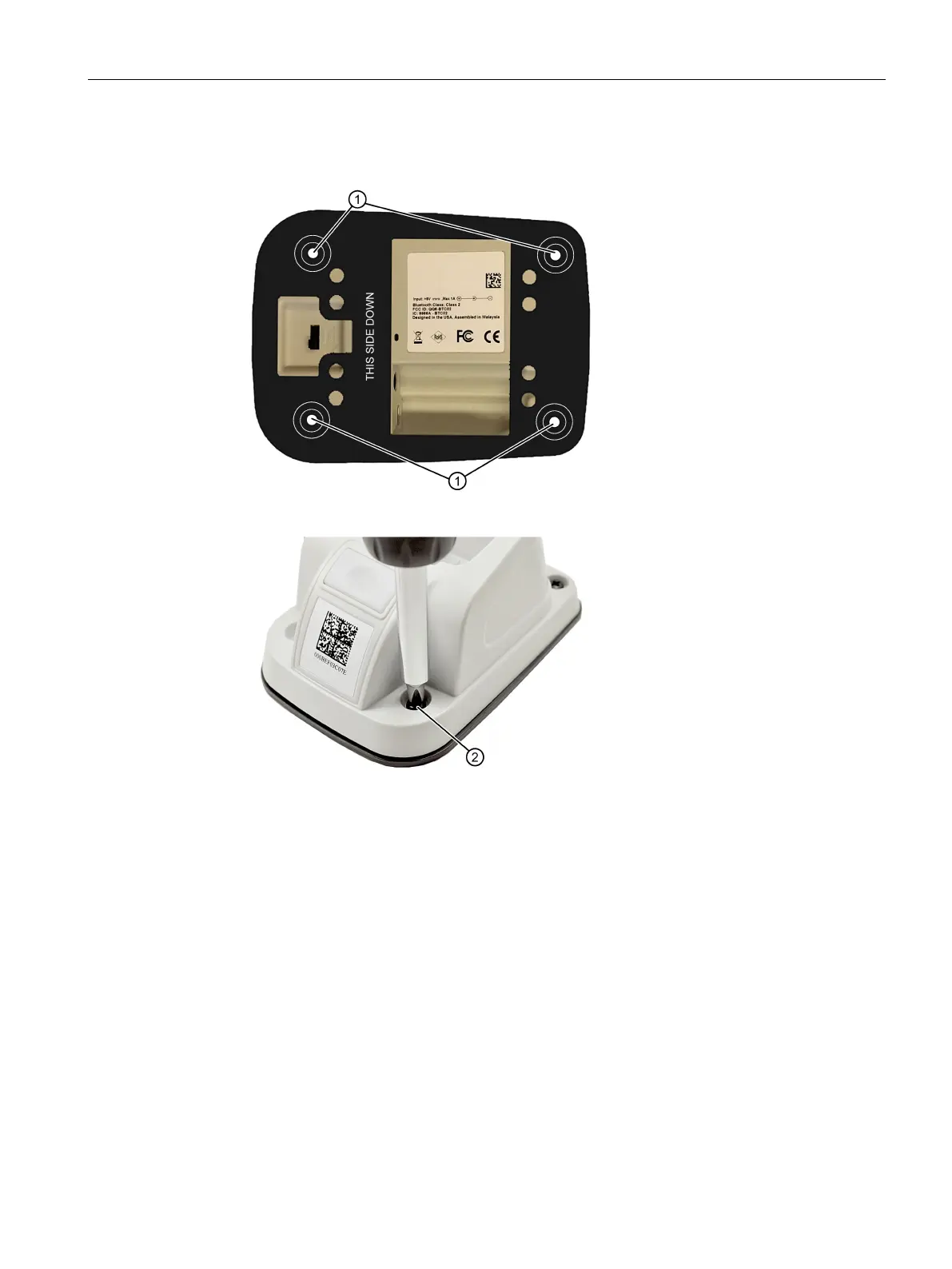

Figure 3-4 Base plate: Threaded holes
Figure 3-5 Charging station: Tightening the screws
You have secured the charging station to the base plate.
