Installing and connecting (SIMATIC MV325)
3.3 Charging station with base plate secured to a working surface
SIMATIC MV320 / SIMATIC MV325
20 Operating Instructions, 08/2015, C79000-G8976-C352-03
4. Place the charging station on the secured base plate.
5. Secure the charging station with the supplied screws
② in the threaded holes ① of the
base plate.

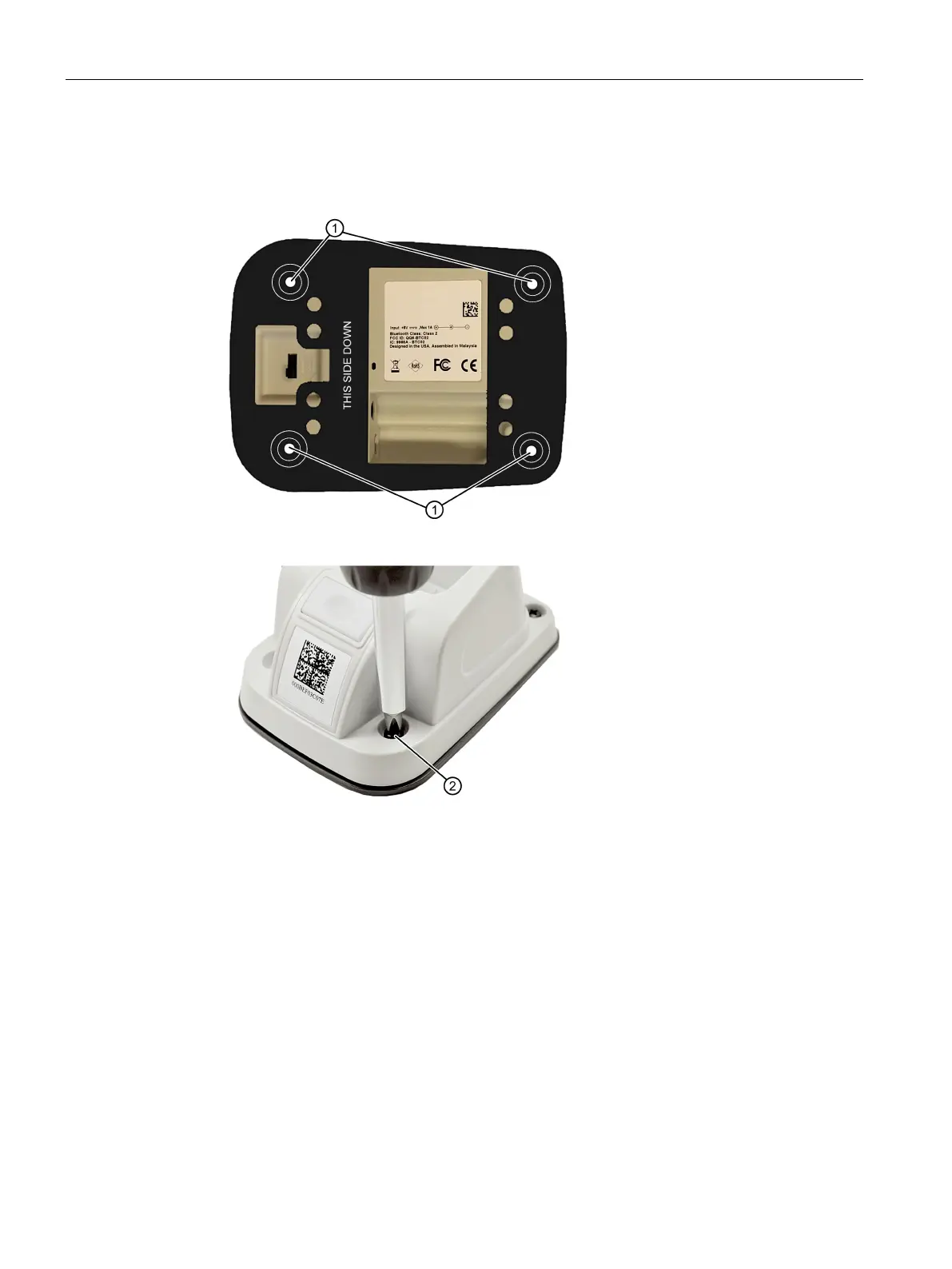

Figure 3-10 Base plate: Threaded holes
Figure 3-11 Charging station: Tightening the screws
You have secured the charging station with the base plate on the working surface.
The charging station is ready for use.
