Siemens SIMATIC S5 Series User Manual

4
4-8
Working with S5-DOS/ST
C79000-G8576-C760-03
When supplied, the STEP 5 software for the PC is set so that the
external prommer is loaded. If you want to change this setting,
start the program:
DR:\STEP5\S5_ST\S5DRV.EXE
You can then select the driver to be loaded when STEP 5 is started
in the submenu PROMMER:
 Internal programming interface (only with PG 7xx).
 Parallel external prommer on an LPT port.
 Serial external prommer on a COM port (only for PCs).

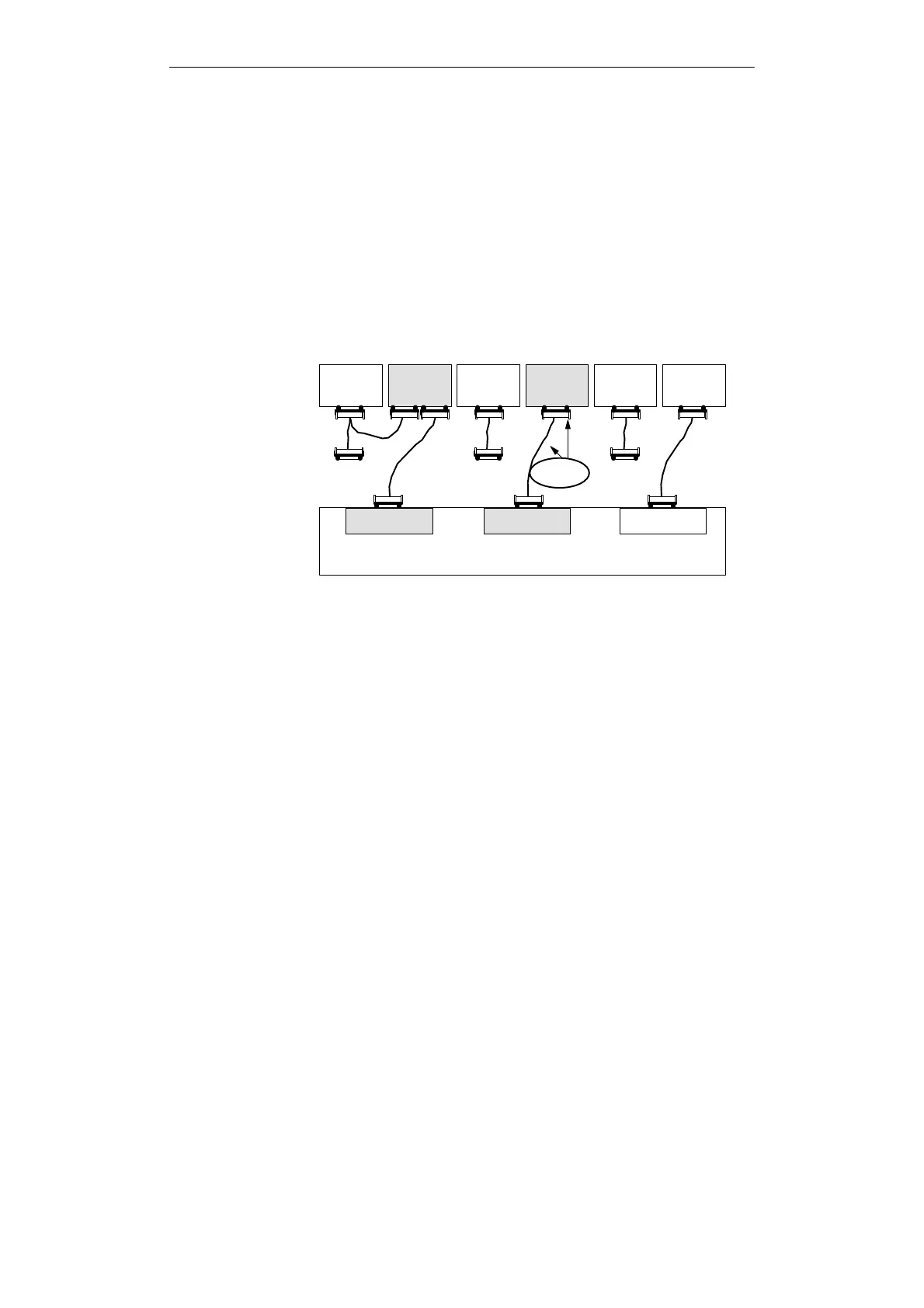

Printer
parallel
PROMMER
parallel
Printer
serial
PROMMER
serial
Mouse
PLC
LPT 1 COM 1-4/ V.24
COM 1(2)/ TTY,
active
PG/PC
in LPT 1
(if required)
in COM 1-4
(if required)
in COM 1-4
(if required)
(1)
..
..
.. .. ..
..
..
..
..
.. .... ..
PC only
Loading the Driver
Connection
PG-Prommer
Installing Hardware

Siemens SIMATIC S5 Series Specifications

General

Series	SIMATIC S5
Manufacturer	Siemens
Category	Controller
Programming Language	STEP 5
Modular Design	Yes
Power Supply	24V DC
Communication Interfaces	RS-232, RS-485
Memory Type	EPROM, RAM
Digital Inputs/Outputs	Varies depending on module configuration
Analog Inputs/Outputs	Varies depending on module configuration
CPU Type	Varies by model
Memory	Varies by model
Operating Temperature	0°C to 60°C
