Working with S5-DOS/ST
C79000-G8576-C760-03
4.2 Connecting a PLC to the PG
To be able to link up with a PLC, your PG must have an active
TTY port (20 mA).
If the COM 1 port available is a V.24 interface, the AG-S5
interface must be simulated by means of an S5 converter

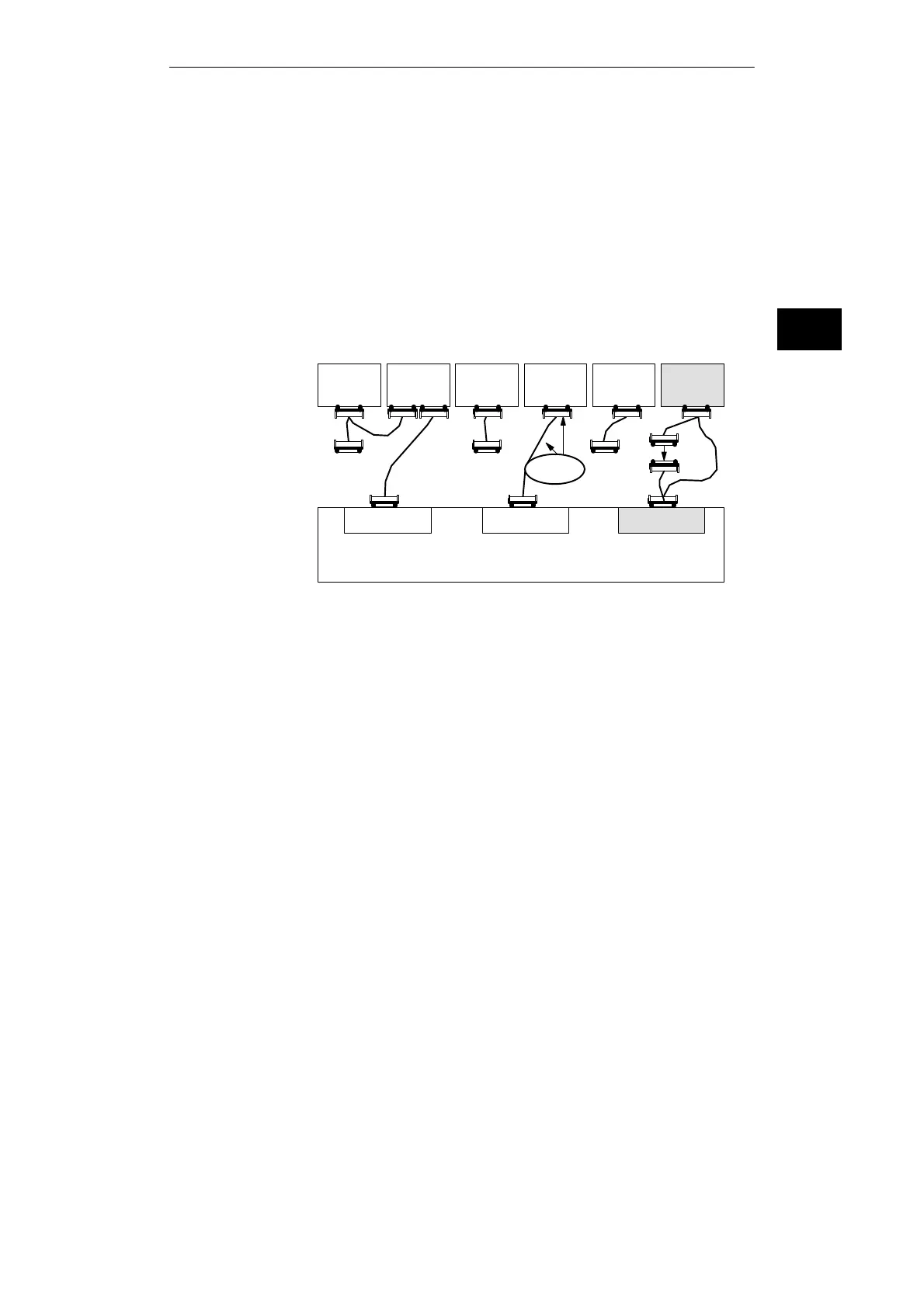

The programmable controller (PLC) and the PG are connected via
a direct connection (4) or by two connecting cables. If the port
assignment described in section 4.4 is not used, the connections
will have to be adapted accordingly.
COM 1(2)/ TTY,
active
Printer
parallel
PROMMER
parallel
Printer
serial
PROMMER
serial
Mouse
PLC
LPT 1 COM 1-4/ V.24
PG/PC
in LPT 1
(if required)
in COM 1-4
(if required)
in COM 1-4
(if required)
PLC-S5
(7), (8)
(4)
(3)
..
..
.. .. .. .. .. ..
..
....
.. ..
..
..
PC only
PLC Port
PG with Active TTY
COM 1 Port
Installing Hardware

Siemens SIMATIC S5 Series Specifications

General

Series	SIMATIC S5
Manufacturer	Siemens
Category	Controller
Programming Language	STEP 5
Modular Design	Yes
Power Supply	24V DC
Communication Interfaces	RS-232, RS-485
Memory Type	EPROM, RAM
Digital Inputs/Outputs	Varies depending on module configuration
Analog Inputs/Outputs	Varies depending on module configuration
CPU Type	Varies by model
Memory	Varies by model
Operating Temperature	0°C to 60°C
