Siemens SIMATIC S5 Series User Manual

7
7-3
Working with S5-DOS/ST
C79000-G8576-C760-03
User
PC keyboard
Keyboard file
S5KXS01X.S5K
(S5KXS01X.COM)*
Emulator
MS-DOS
PC HW
STEP 5 SW
Keyboard file
EXAMPLE.S5K
S5ODS10X.EXE
Key editor
S5ODS10X.RES
Resource file
edit if necessary
copy
* S5KXS01X.COM → PG Emulator
S5KXS01X.EXE → PC Package Emulator (Basic Package)
S5KXS01K.EXE → PC Package Emulator (Mini PLCs)
If you wish to load another keyboard assignment for STEP 5, it is
advisable that you are familiar with the following:
 the S5 keyboard itself,
 the functions of the S5 keyboard, and
 the file structure of the S5 software.
You will find an explanation of the S5-specific keys in the STEP 5
manual, in Appendix 4.

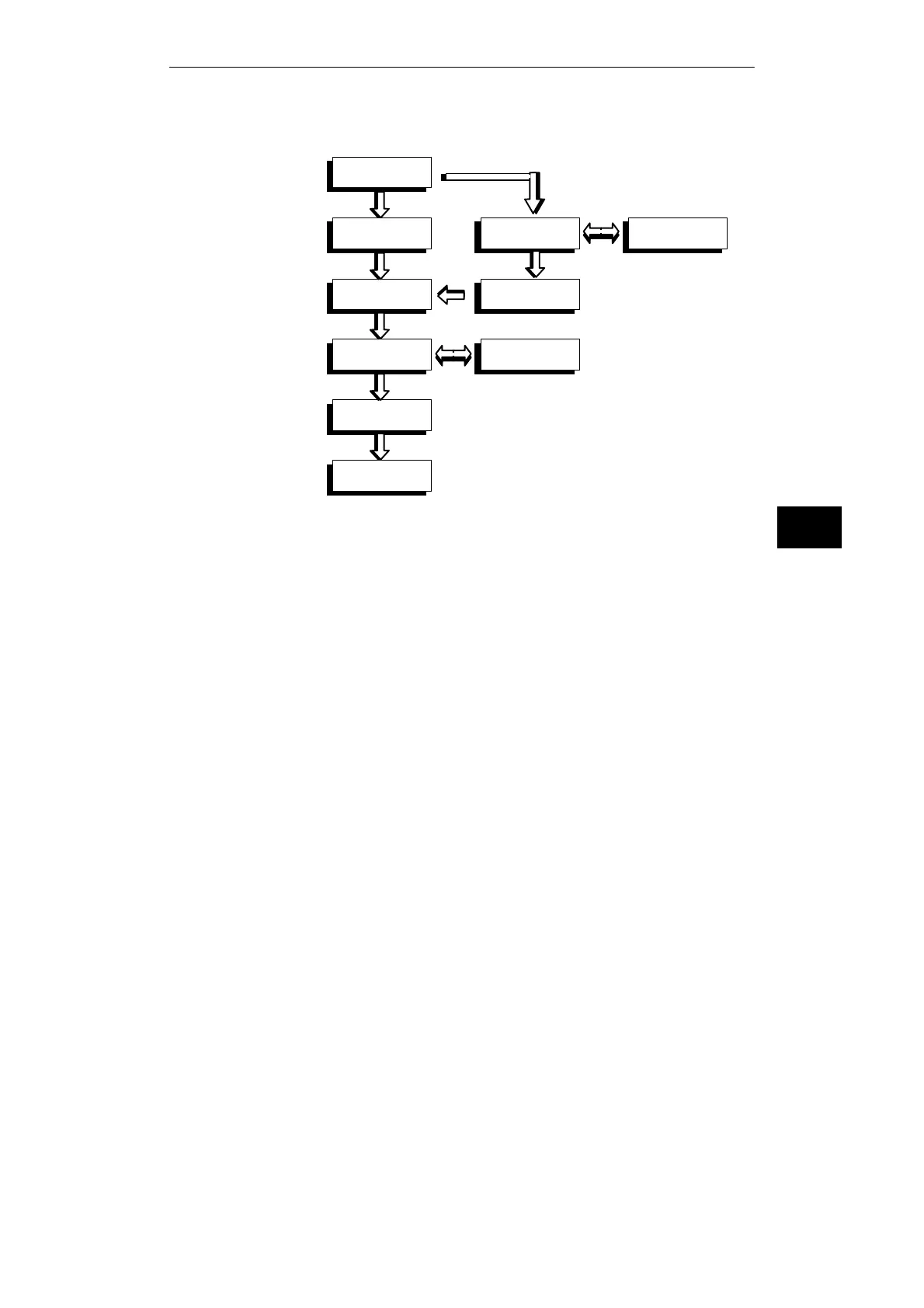

Data Flow
Requirements
Keyboard Editor
