7.3.1 Components of client diagnostics
Status information

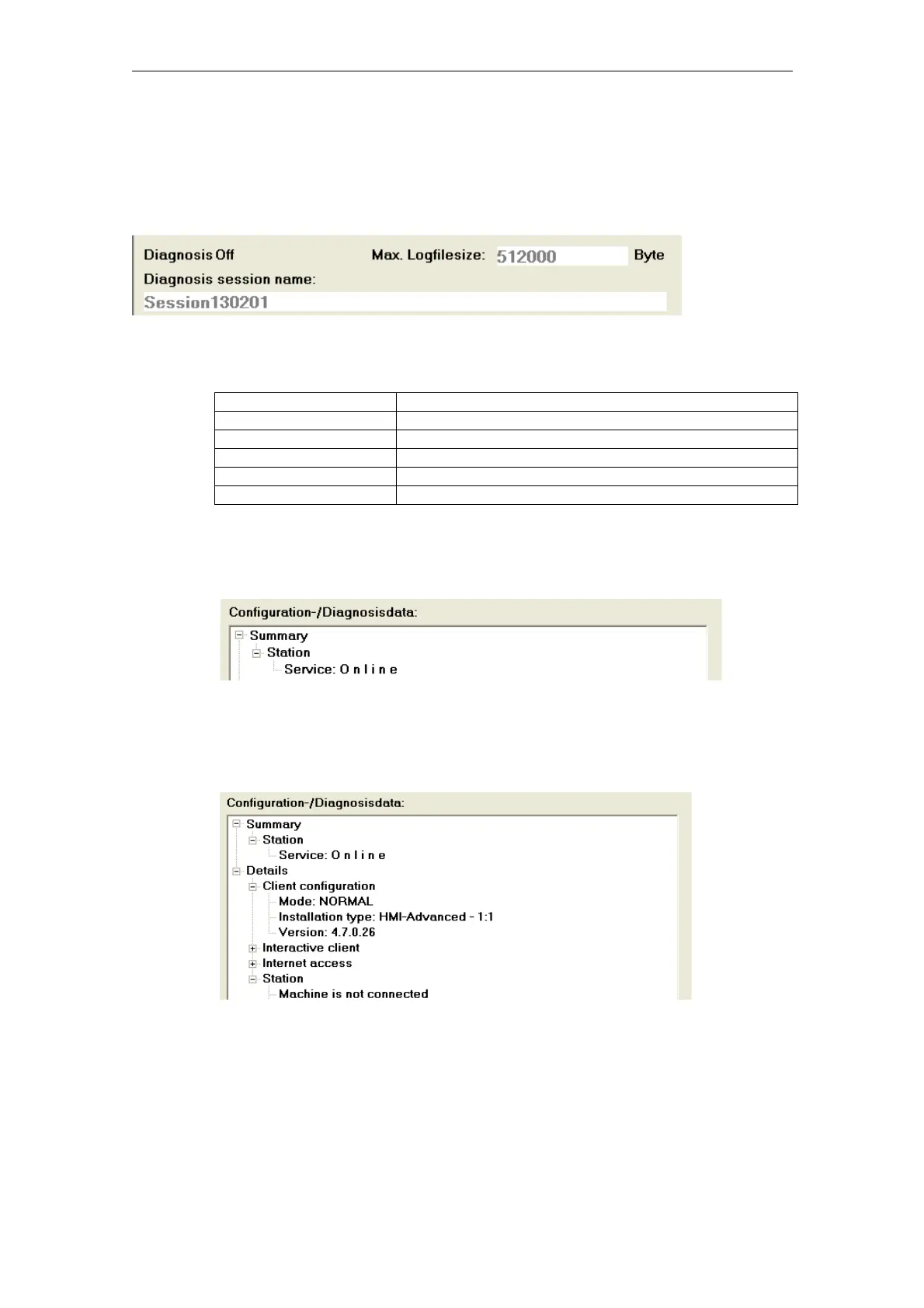

Fig. 7-20: Session name
Operating functions
Softkey Description
Change maximum file size of log files
Change the name of the diagnostics session
Update diagnostics information
Save diagnostic data of a diagnostics session
Start a diagnostics session
Summary of diagnostics functions
When diagnostics is started, a summary states whether the client is connected to
the Internet.
Fig. 7-21: Diagnostics summary
Detailed information
More precise information required for further diagnostics is shown under Details.
Fig. 7-22: Detailed diagnostics
Client configuration
This display informs the user whether the installation is a normal 1:1 or a 1:N
configuration.
