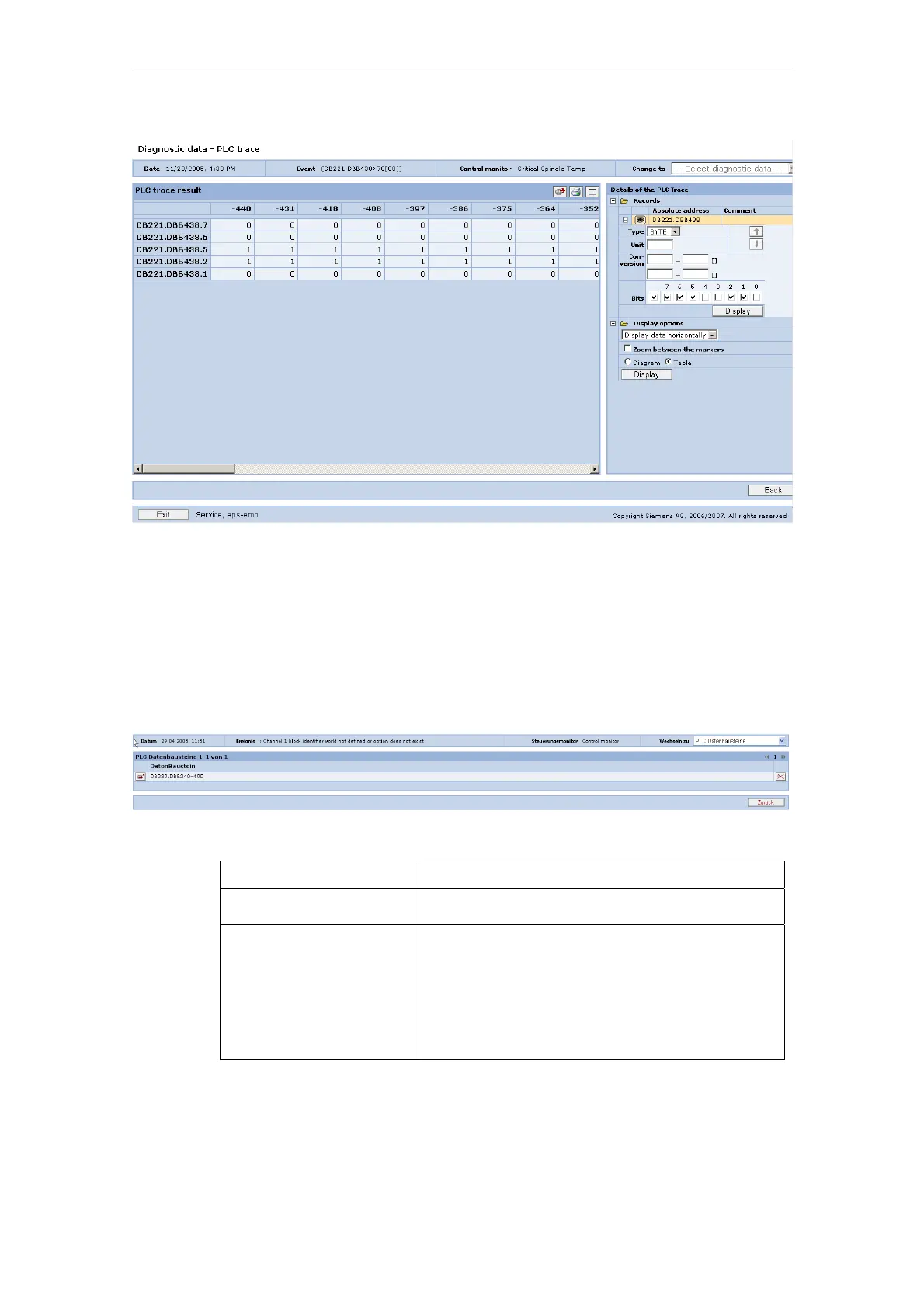

Fig. 2-13: PLC trace values displayed horizontally
PLC traces uploaded with an event can be displayed in the browser and evaluated
with graphical tools. Incorrect signal curves can easily be found by displaying
variable values in the graphical display, setting markings and zooming.
PLC data blocks / list
PLC data blocks uploaded from the control on an event can be saved to a data
carrier.
Fig. 2-14: PLC data block display
Function Description
Save PLC data block You can save a PLC data block to an external
data carrier.
Delete PLC data block You cannot delete individual PLC data blocks from
machine events; it is only possible to delete the
entire event entry.
Note:
Deleting individual details from an event
constitutes illegal manipulation of the archived
document.
