Mounting and connection
4.2 Mounting
SIMOCODE pro - Fail-Safe Digital Modules
Manual, 11/2017, NEB631679702000/RS-AA/002
25

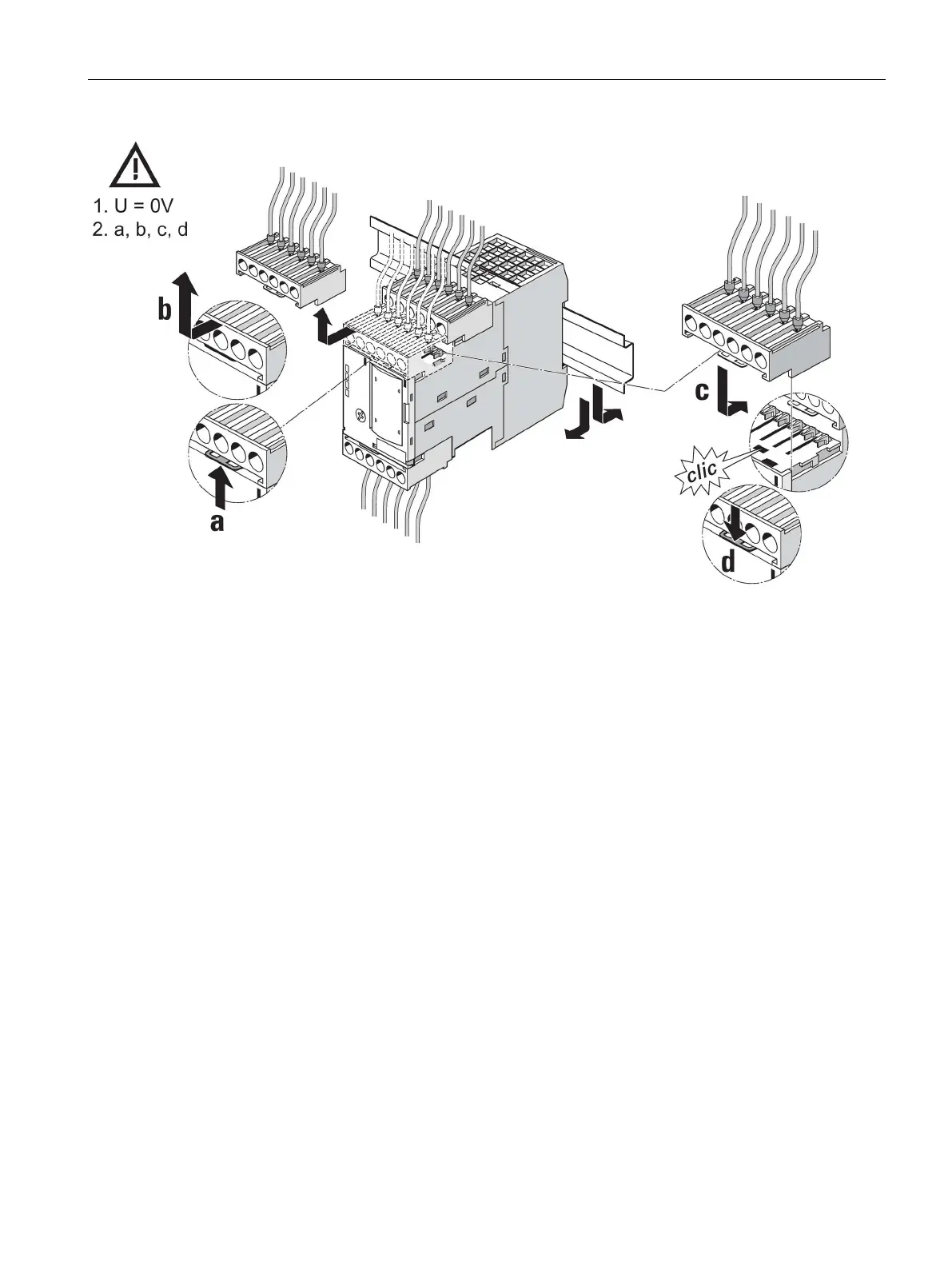

Figure 4-2 Mounting on a standard rail (2)
The terminal blocks can be removed in the order a, b and mounted in the order c, d.
