9.2 DM-F Local, sensor circuits
SIMOCODE pro - Fail-Safe Digital Modules
Manual, 11/2017, NEB631679702000/RS-AA/002
65
9.2.2
DM-F LOCAL, 2-channel, with cross-circuit detection and automatic start
3UF7320-1A.00-0
● With cross-circuit detection
● 2 NC contacts
● 2-channel
● Sensor input automatic start

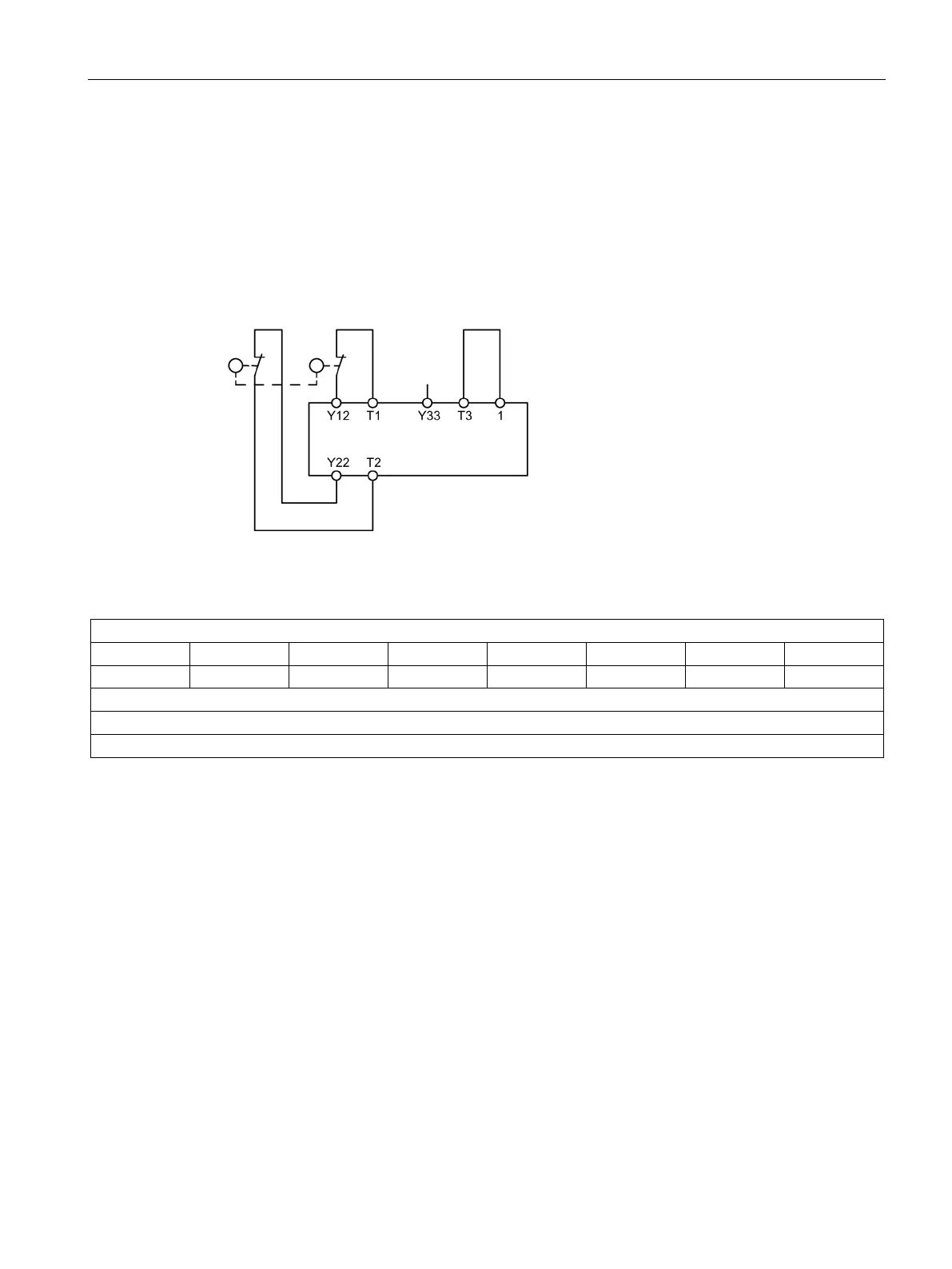

Figure 9-4 Circuit diagram, 3UF7320-1A.00-0 with cross-circuit detection, 2 NC contacts, 2-channel,
automatic start
DIP switch
1 2 3 4 5 6 7 8
1
1
1
-
0
0
-
-
Max. levels
Safety Integrity Level in accordance with IEC 61508/EN 62061: to SIL 3
Performance Level in accordance with EN ISO 13849-1: PL e
DIP switch settings, 3UF7320-1A.00-0 with cross-circuit detection, 2 NC contacts, 2-channel, automatic start
