Mounting and connection
4.2 Mounting
24
SIMOCODE pro - Fail-Safe Digital Modules
Manual, 11/2017, NEB631679702000/RS-AA/002
Note
Taking the ambient conditions into account, you must install the devices in control cabinets
with the IP23, IP43 or IP54
degree of protection.
Note
Please note the information in the operatin
g instructions.
Mounting on a standard rail
The 3UF73 fail-safe digital module is suitable for snap mounting on a standard 35 mm rail to
DIN EN 60715.
Will result in death or serious injury. Can lead to electric shock and burns.
Disconnect the terminal blocks from the power supply.

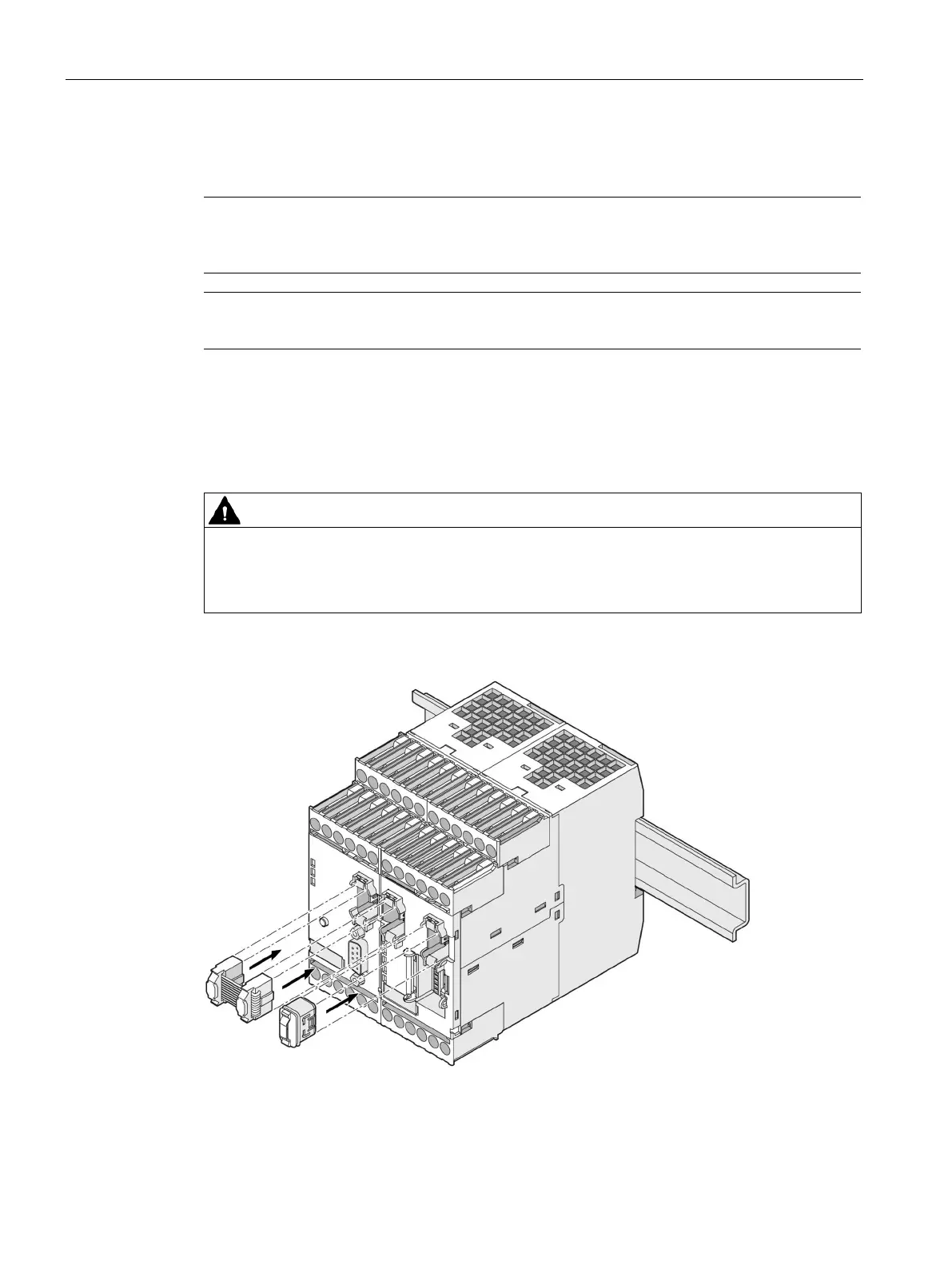

Figure 4-1 Mounting on a standard rail (1)
