Siemens SIMOCODE pro

Operation
5.2 DM-F PROFIsafe
SIMOCODE pro - Fail-Safe Digital Modules
38 Manual, 11/2017, NEB631679702000/RS-AA/002
Function of the SET / RESET button:
● Display of the current PROFIsafe address: Press the SET / RESET button briefly:
LEDs 1 to 10 indicate the current PROFIsafe address.
● Resetting of faults (also possible via "TEST/RESET" button on basic unit):
Press the SET / RESET button for approx. 3 s: The DM-F PROFIsafe is restarted; but
there is no need to switch off the power supply.

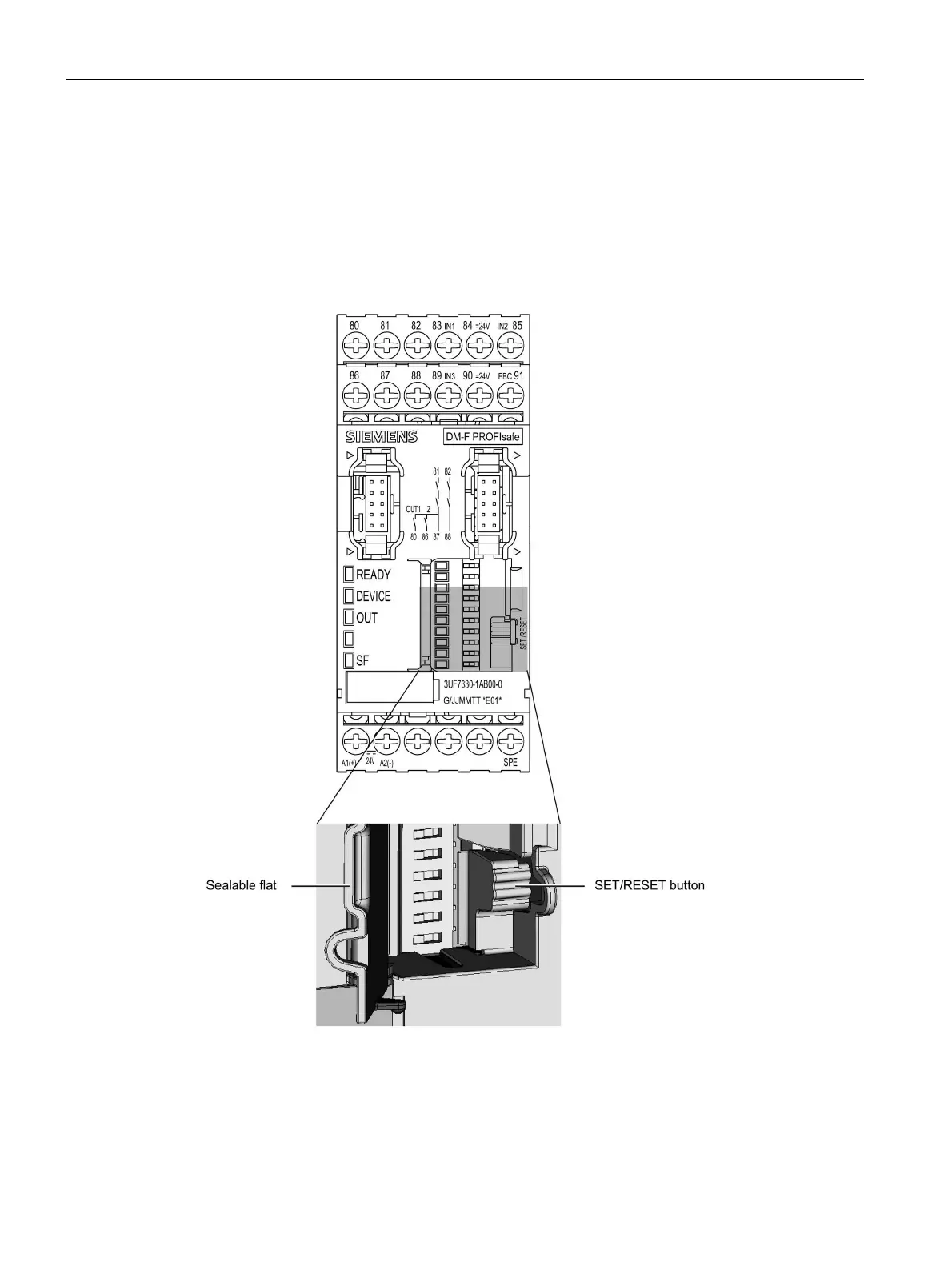

Figure 5-5 DM-F PROFIsafe with SET / RESET button
