4-4 SIMODRIVE base line A Start-Up
1FK7063 - 5AF71
0
5
10
15
20
25
30
35
0 500 1000 1500 2000 2500 3000 3500
Speed [min-1]
Torque [Nm]
S1 (100K)
S1 (60K)
S3 - 25%
S3 - 40%
S3 - 60%

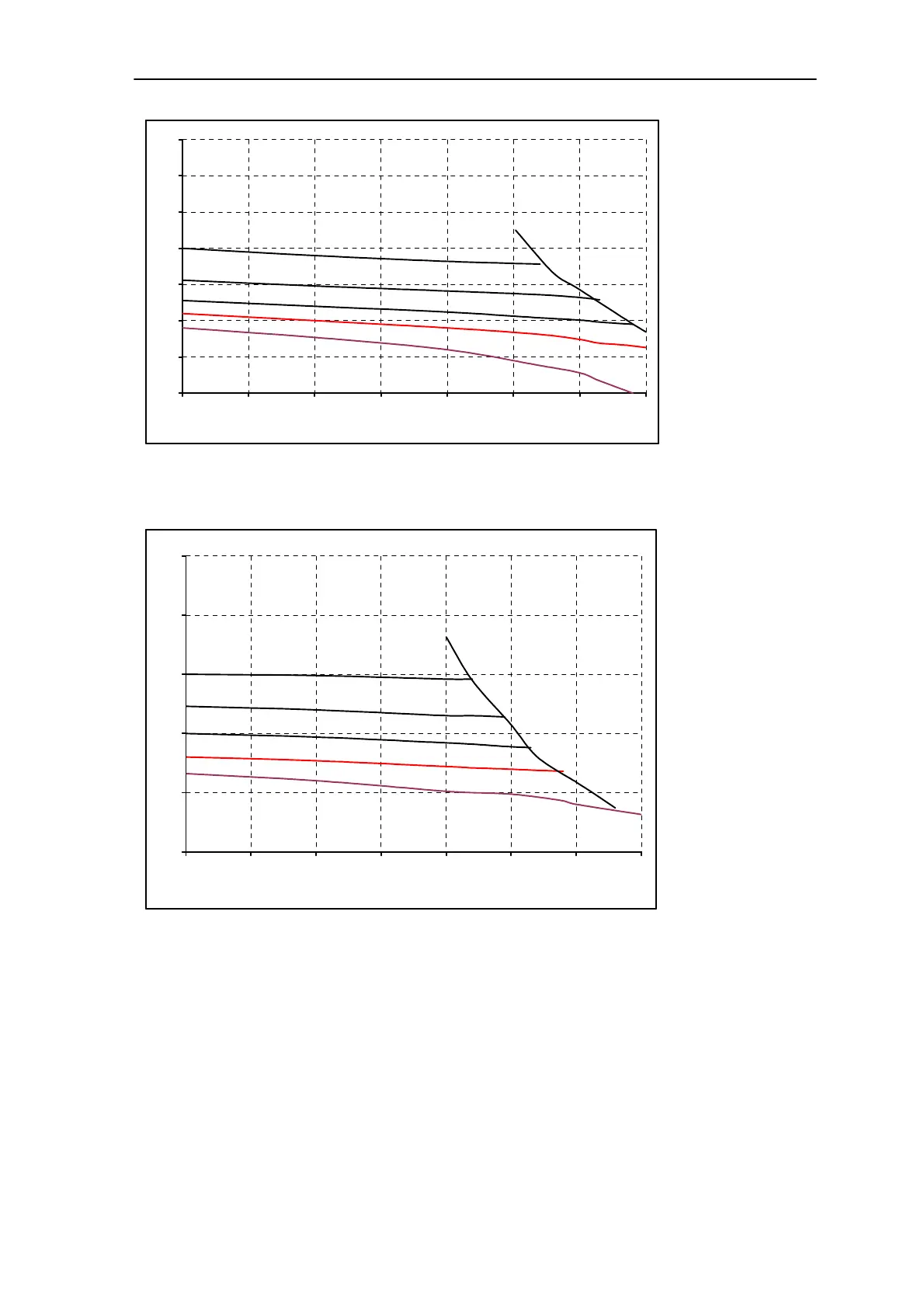

Fig. 4-3 Motor speed – torque diagram 1FK7063-5AF71-1S□0
1FK7080 - 5AF71
0
5
10
15
20
25
0 500 1000 1500 2000 2500 3000 3500
Speed [min-1]
Torque [Nm]
S1 (100K)
S1 (60K)
S3 - 25%
S3 - 40%
S3 - 60%
Fig. 4-4 Motor speed – torque diagram 1FK7080-5AF71-1S□0
