Siemens SIMODRIVE base line A User Manual

Servomotor
SIMODRIVE base line A Start-Up 4-5
1FK7083 - 5AF71
0
10
20
30
0 500 1000 1500 2000 2500 3000 3500
Speed [min-1]
Torque [Nm]
S1 (100K)
S1 (60K)
S3 - 25%
S3 - 40%
S3 - 60%
2

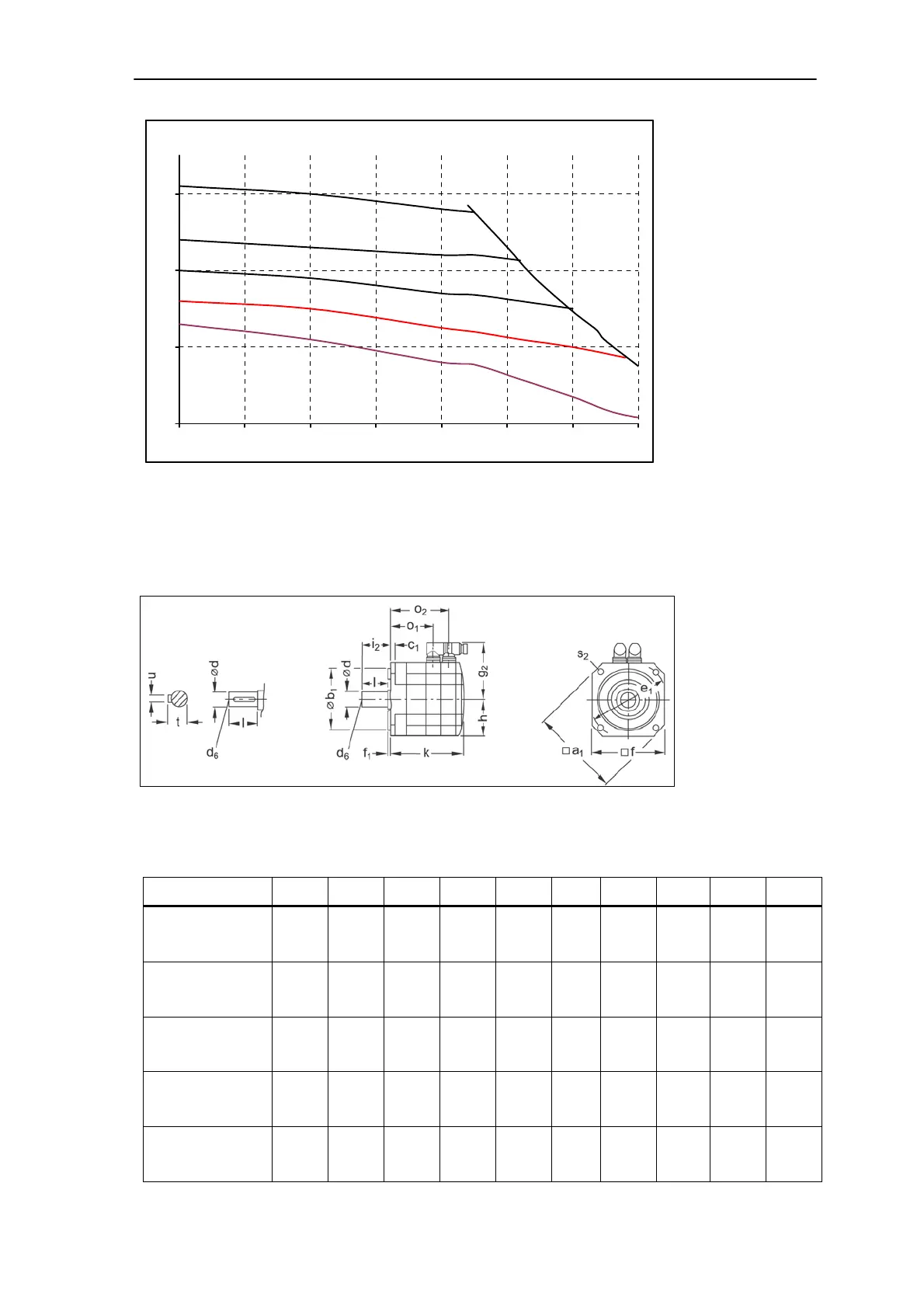

Fig. 4-5 Motor speed – torque diagram 1FK7083-5AF71-1S□0
Dimension Please refer to Fig.4-1 and Table 4-3 for the mounting dimensions of the
servomotor.
Fig.4-6 Motor size
Table 4-3 Motor dimensions
Order No. a
1
b
1
c
1
e
1
f f
1
g
2
h i
2
s
2
1FK7042-
5AF71-1S□0
120 80 10 100 96 3 90 48 40 7
1FK7060-
5AF71-1S□0
155 110 10 130 126 3.5 105 63 50 9
1FK7063-
5AF71-1S□0
155 110 10 130 126 3.5 105 63 50 9
1FK7080-
5AF71-1S□0
186 130 13 165 155 3.5 119.5 77.5 58 11
1FK7083-
5AF71-1S□0
186 130 13 165 155 3.5 119.5 77.5 58 11
