Interfaces
3.6 Onboard measuring system interface (C230-2, C240)
SIMOTION C
58 Operating Instructions, 02/2012
0D[LPXPHQFRGHUSXOVHVSHUUHYROXWLRQLQFUHY
GXULQJF\FOHV
GXULQJF\FOHV
GXULQJF\FOHV
0D[LPXPGDWDZLGWK
([DPSOH)LUWUHHHQFRGHUSURILOH[ELWGDWDZLGWK
0LQLPXPPHVVDJHOHQJWK
1XPEHURIUHYROXWLRQV
/HDGLQJ]HURVRIHQFRGHU
1XPEHURILQFUHPHQWV
6XEVHTXHQW]HURVRIHQFRGHU
;;
;;
;;
;;;

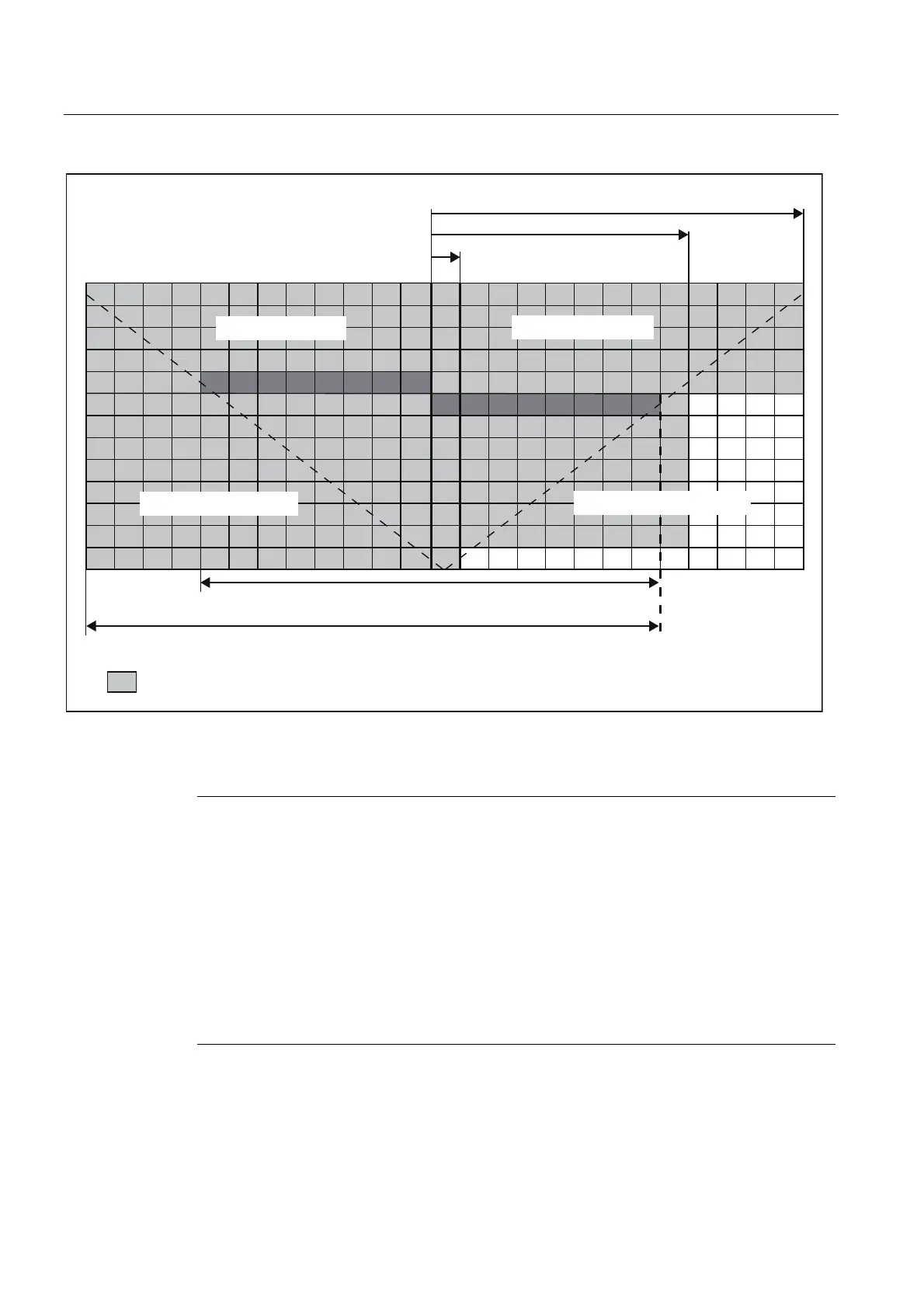

Figure 3-10 Fir tree profile
Note
Please note the following:
Bit 2
0
of the number of revolutions is fixed on the 12th cycle, followed on the 13th cycle by
the most significant bit of the number of increments/revolution.
The leading and subsequent data bits transmitted by the encoder (or zeros) are not
evaluated by SIMOTION C.
The encoder used in the example should be configured as follows:
– Encoder pulses per revolution: 256
– Data width: 16
– Message length: 21 bits (or 25 bits)
– Message profile: Fir tree
