Siemens SINAMICS PERFECT HARMONY GH150 - 3.8.10 Touch screen operator panel

Signal assignment of the interfaces
Connector/pin Signal
X1.3 L
X1.4 Not assigned
X1.5 N
X1.6 Not assigned
X1.7 PE
X2.4 Undervoltage REL_A
X2.5 Undervoltage REL_B
X2.6 Presence of output voltage REL_A
X2.7 Presence of output voltage REL_B
X6.1 / X7.1 / X8.1 / X9.1 PE
X6.2 / X7.2 / X8.2 / X9.2 P-GRD
X6.3 / X7.3 / X8.3 / X9.3 ± 55 V
3.8.10 Touch screen operator panel
The converter is operated and diagnosed using the operator panel.

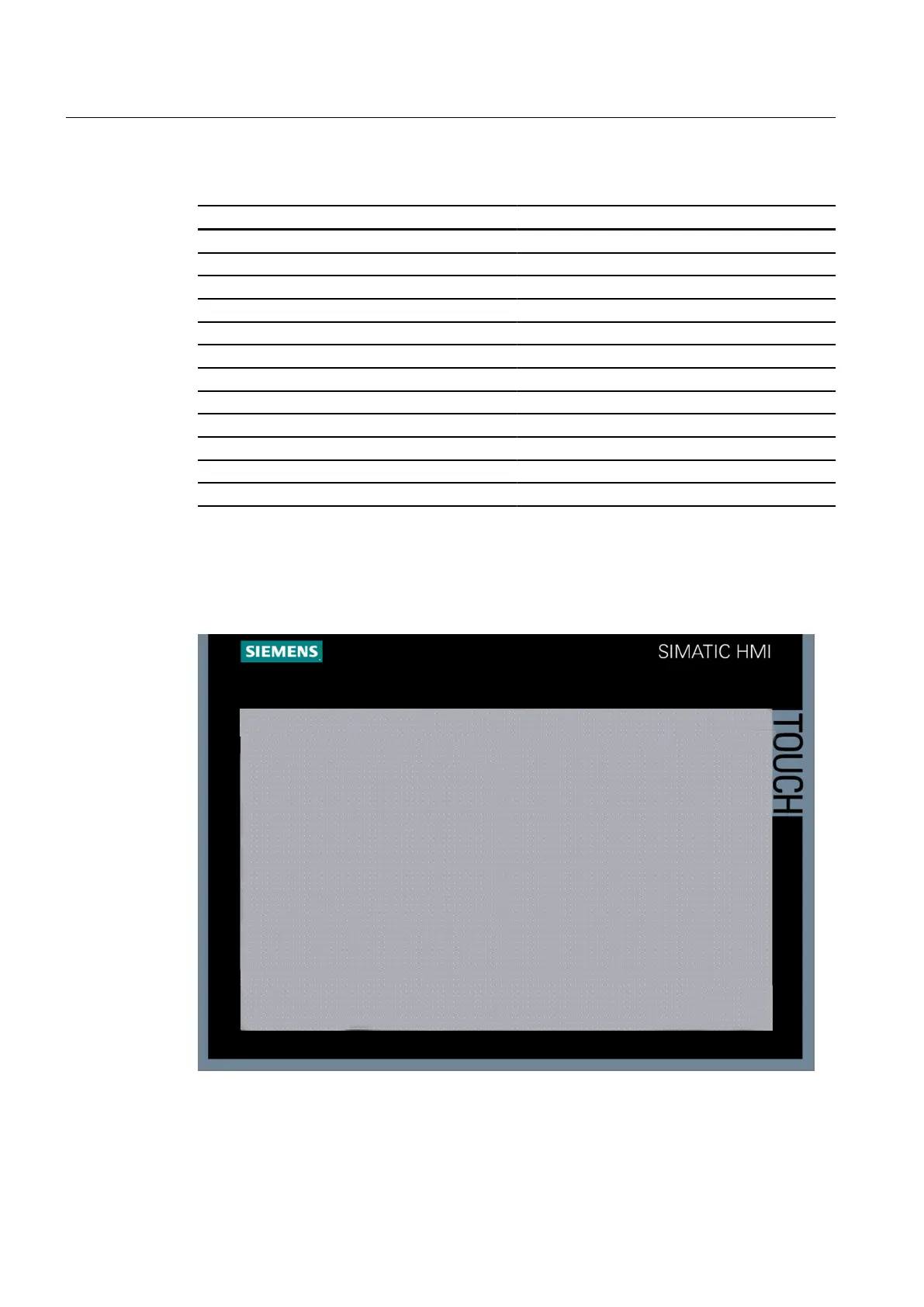

Figure 3-7 Operator panel
The operator panel communicates with the drive via Ethernet.
Description
