6.11 Fastening the cable ducts with cable ties
Fasten all cable ducts whose cover faces downward with cable ties. Wind the cable ties around
the entire cable duct. The cable ties must be located at the same positions as in the delivered
state.

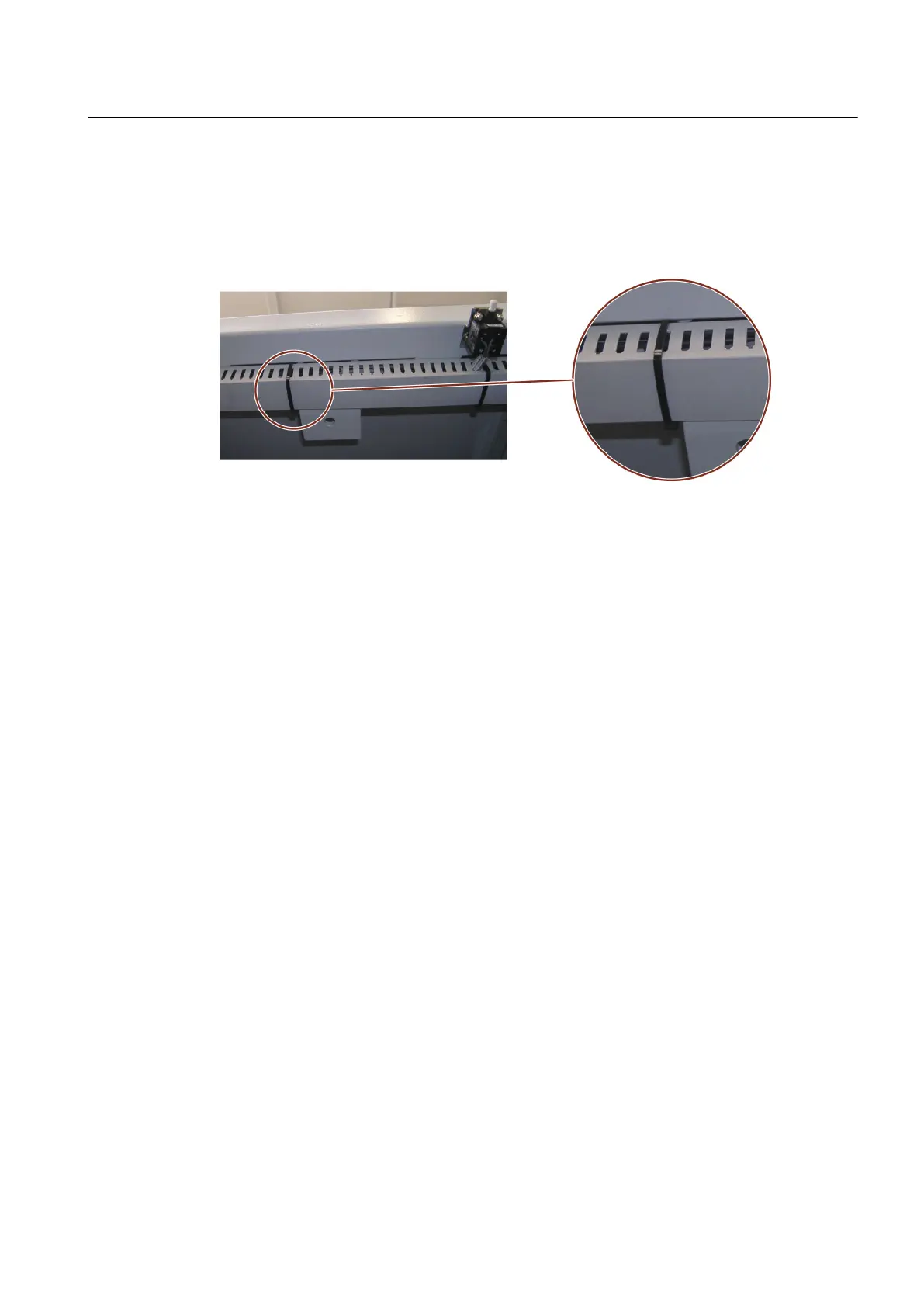

Figure 6-7 Schematic diagram: Fastening the cable ties
Electrical connection
6.11 Fastening the cable ducts with cable ties
SINAMICS PERFECT HARMONY GH150 6SL3825
Operating Instructions 05/2020 81
