3. Insert the threaded bolts through the holes ②. Use the holes in the corners and then every
300 mm.

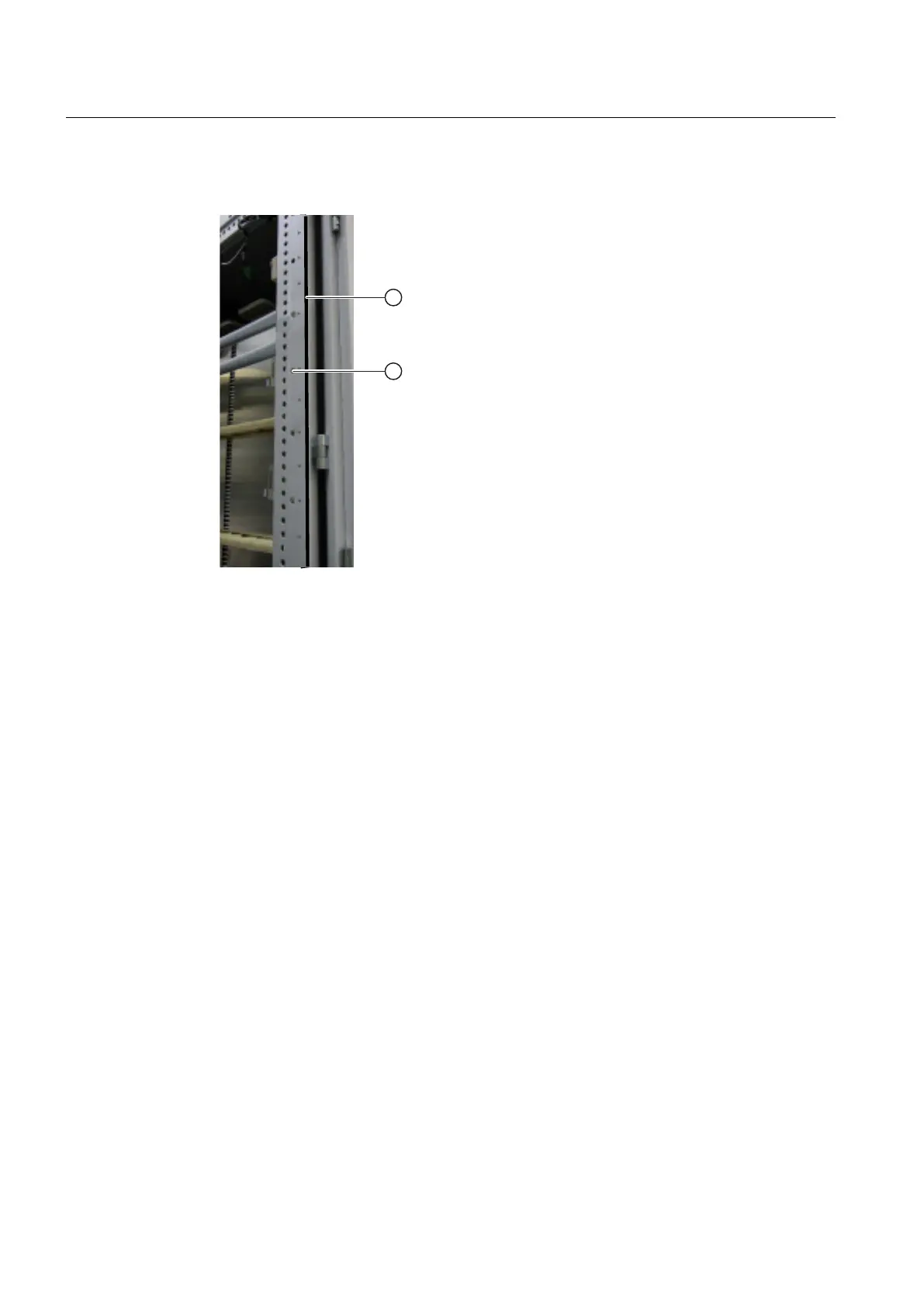

Figure 5-1 Screwing the cabinets together
4. Attach the contact washers to the threaded pins.
5. Screw the transport units together using the nuts with a torque of 32 Nm.
5.4 Connect to the foundation
Four holes for M12 screws are provided on each cabinet panel to secure the cabinet to the
foundation. Information on mounting holes and their fixing dimensions are specified in the
dimension drawing.
Install the transport units in accordance with the specifications provided in the accompanying
dimension drawings. When doing this, maintain the specified distance between the top of the
cabinet and the ceiling.
Assembly
5.4 Connect to the foundation
SINAMICS PERFECT HARMONY GH150 6SL3825
64 Operating Instructions 05/2020
