3.9 Interfaces
3.9.1 Hydraulic interfaces
The cooling circuit dissipates the semiconductor losses. The water flows into the cooling circuit
through the inlet pipe. The water is heated by the waste in the semiconductors. The water flows
out through the return pipe.
See also
Connecting the water circuits (Page 66)
3.9.2 Electrical interfaces
Auxiliary supply and signals
15-pin interfaces for the auxiliary power supply and signals are available at the input and output.

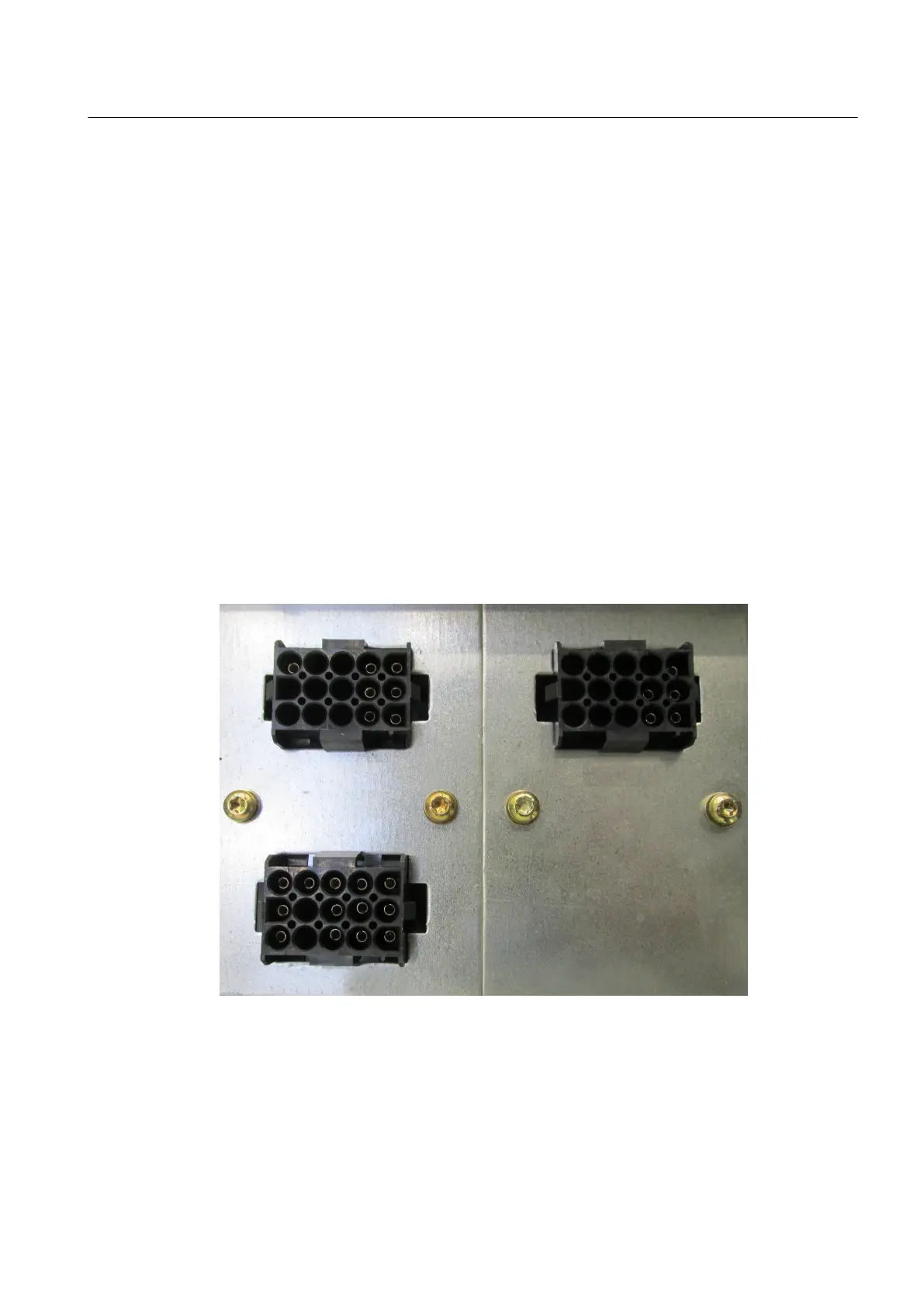

Figure 3-9 Auxiliary supply and signal interfaces
See also
Laying the signal lines (Page 76)
