Location and display of the indicators
You can find the indicators at the following locations:
● The tilt indicators are located in the upper third of the cabinet.
If the arrow above the line ① is blued, the tilt indicator has tripped.
● The shock indicators are located at the bottom of the cabinet.
If one or both arrows ② are black, the shock indicator has tripped.

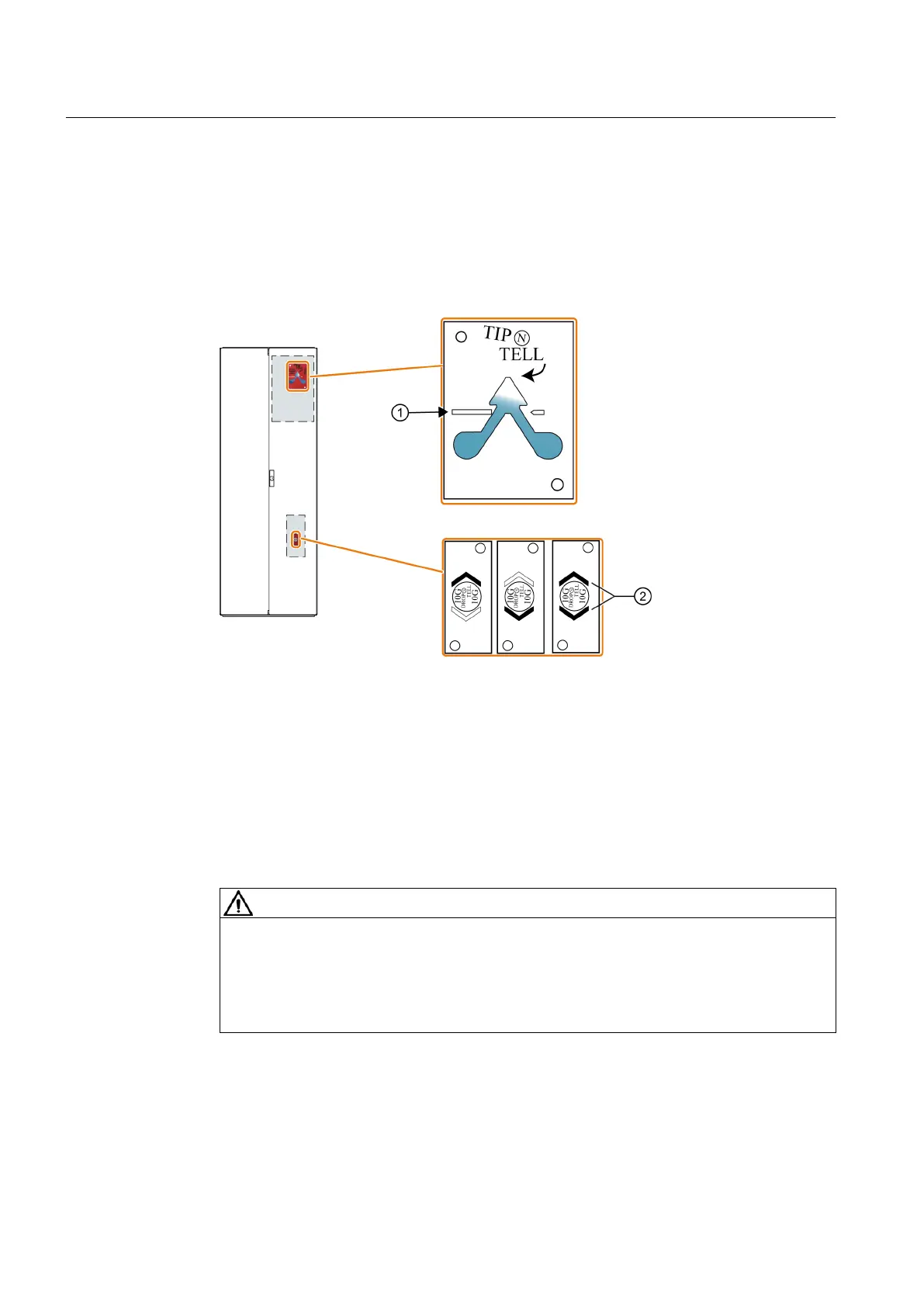

Figure 4-1 Example of attaching and displaying the shock and tilt indicators
4.2.2 Checking the load handling attachments
● Inspect the load suspension devices, e.g. lifting lugs or eyebolts attached to the equipment,
for possible damage. Replace load suspension devices if they are damaged.
● Before use, check that the load suspension devices are correctly attached.
● When lifting, use only approved and undamaged lifting gear of sufficient rated capacity.
Check the lifting gear prior to its use.
WARNING
Danger to life as a result of damaged load suspension devices and lifting gear
If the load suspension devices and lifting gear are damaged or not correctly secured, then
the equipment may fall while being lifted and transported. This can result in death, serious
injury or material damage.
● Inspect the load handling attachments and lifting gear before use.
