Procedure
To switch to the desktop when the autostart/autologon mode is activated, proceed as follows:
1. Switch on the PC system and wait until the "SINUMERIK" welcome screen is displayed.
2. While the "SINUMERIK" welcome screen is being displayed, make one of the following
entries:
– Press the key 3 on your keyboard.
– Click or tip the copyright information.
The counter for starting SINUMERIK Operate is suspended and you can select one of three
options:

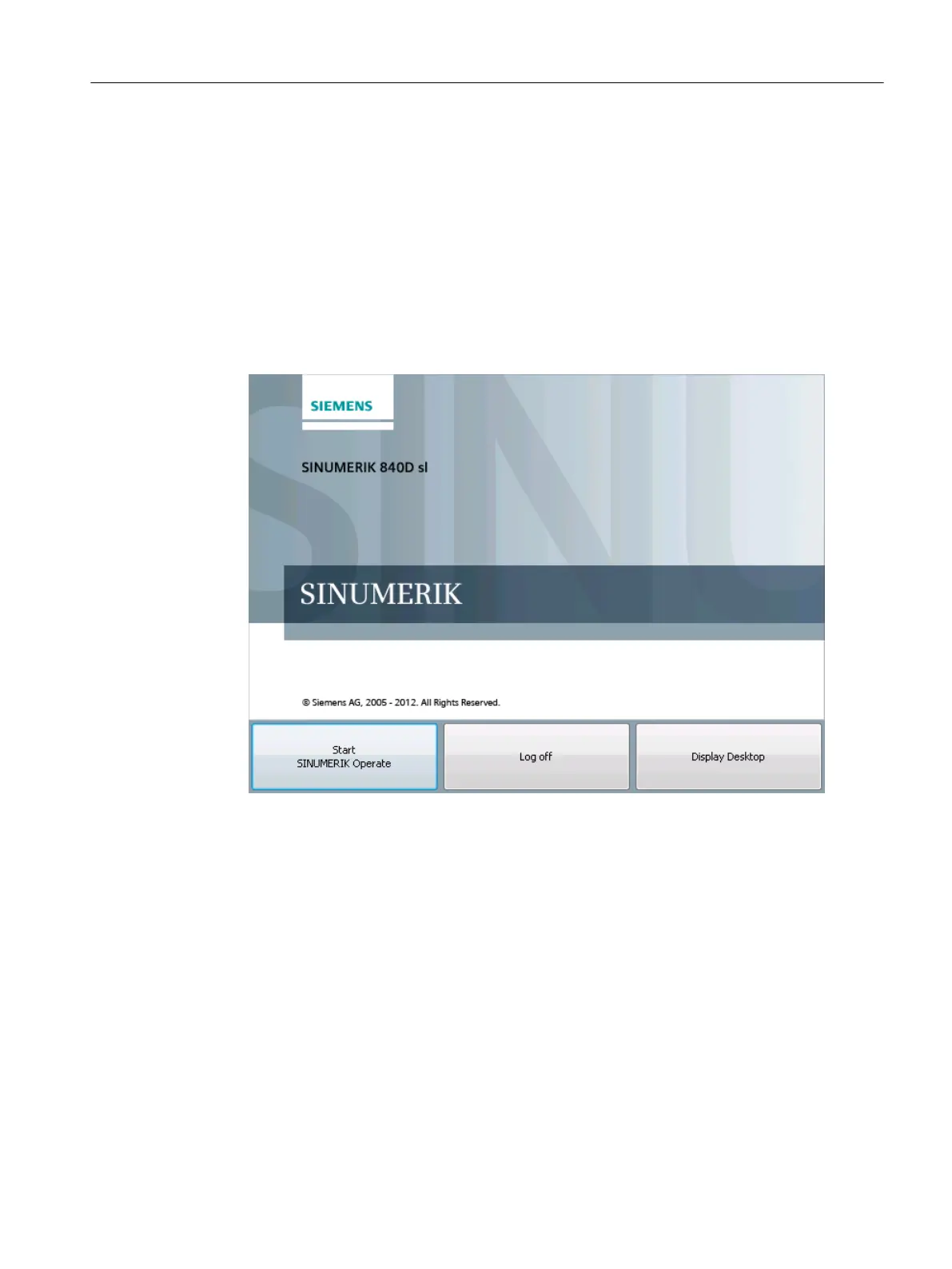

Figure 7-3 Welcome screen "SINUMERIK" after key input
3. Select the "Display Desktop" option.
Result
The Service Desktop opens.
Service and diagnostics
7.4 Switching to the Service Desktop during autostart / autologon operation
PCU Base Software (IM10)
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1 161
