You set the direction of rotation of an NC rotary axis via MD32100 $MA_AX_MOTION_DIR.
MD32100 $MA_AX_MOTION_DIR Traversing direction (not control direction)
-1 Direction reversal
0, 1 No direction reversal
Defining the direction of rotation
You set the directions of rotation for the user interface in the following machine data:
MD52207 $MCS_AXIS_USAGE_ATTRIB[n] Attributes of the axes in the channel
[n] channel axis number
Bit 3 Displayed positive direction of rotation is counter-clockwise (for rotary axes)
The view must be from the inside of the machine (operator's view) to the axis of rotation.
Bit 4 Displayed direction of rotation for M3 is counter-clockwise (for spindles)
This bit can be set from the operator's view or according to DIN.
Bit 5 Direction of rotation for M3 corresponds to minus rotary axis (for spindles)
This bit must be set analogous to PLC bit DB31, ... DBX17.6!

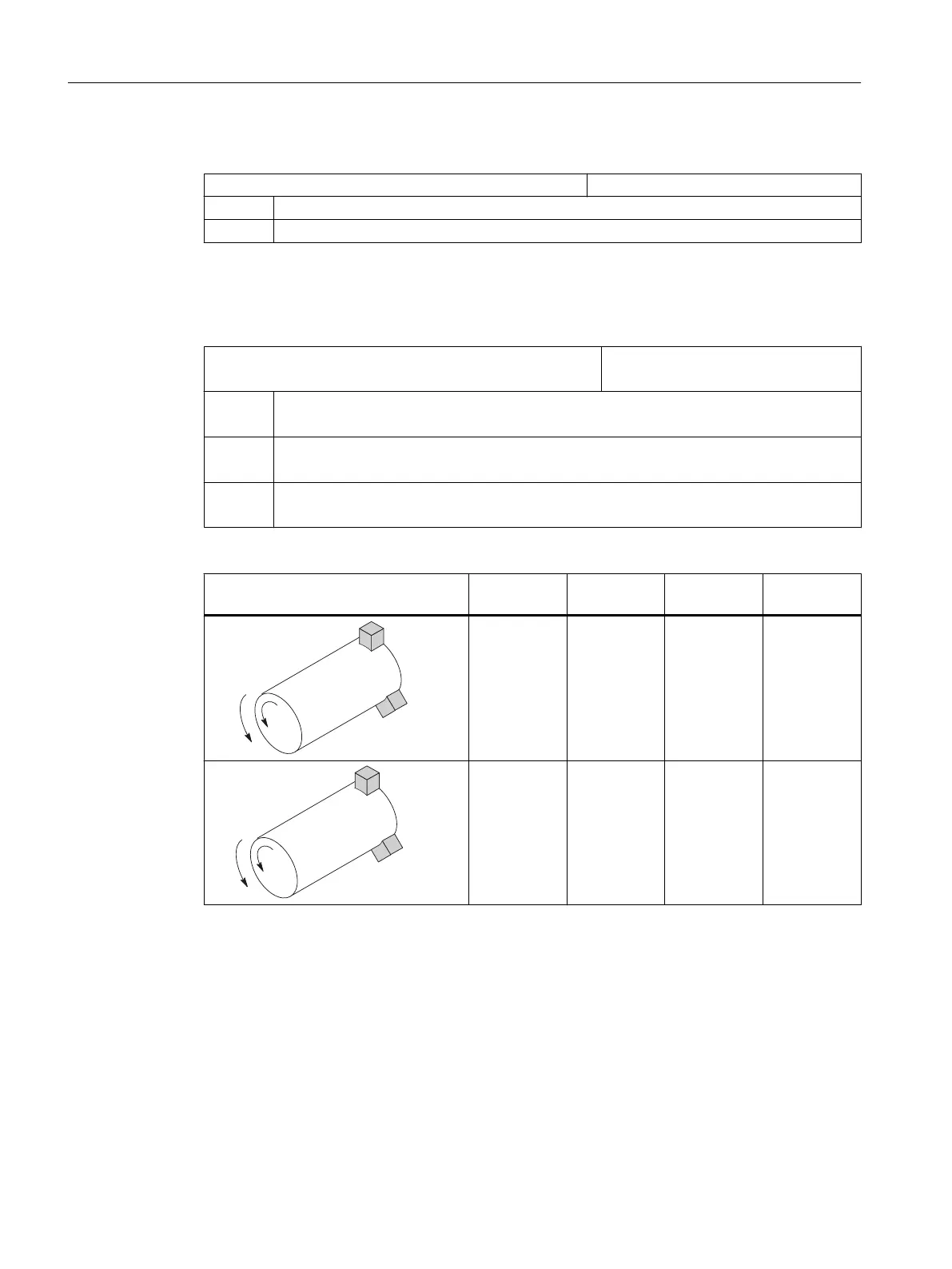

As a result, the following setting options are obtained for the counterspindle:
Counterspindle direction of rotation 52207[n]
bit 3 =
52207[n]
bit 4 = *)
52207[n]
bit 5 =
DB31, ...
DBX17.6
1
1
0
0
1
0
1
1
