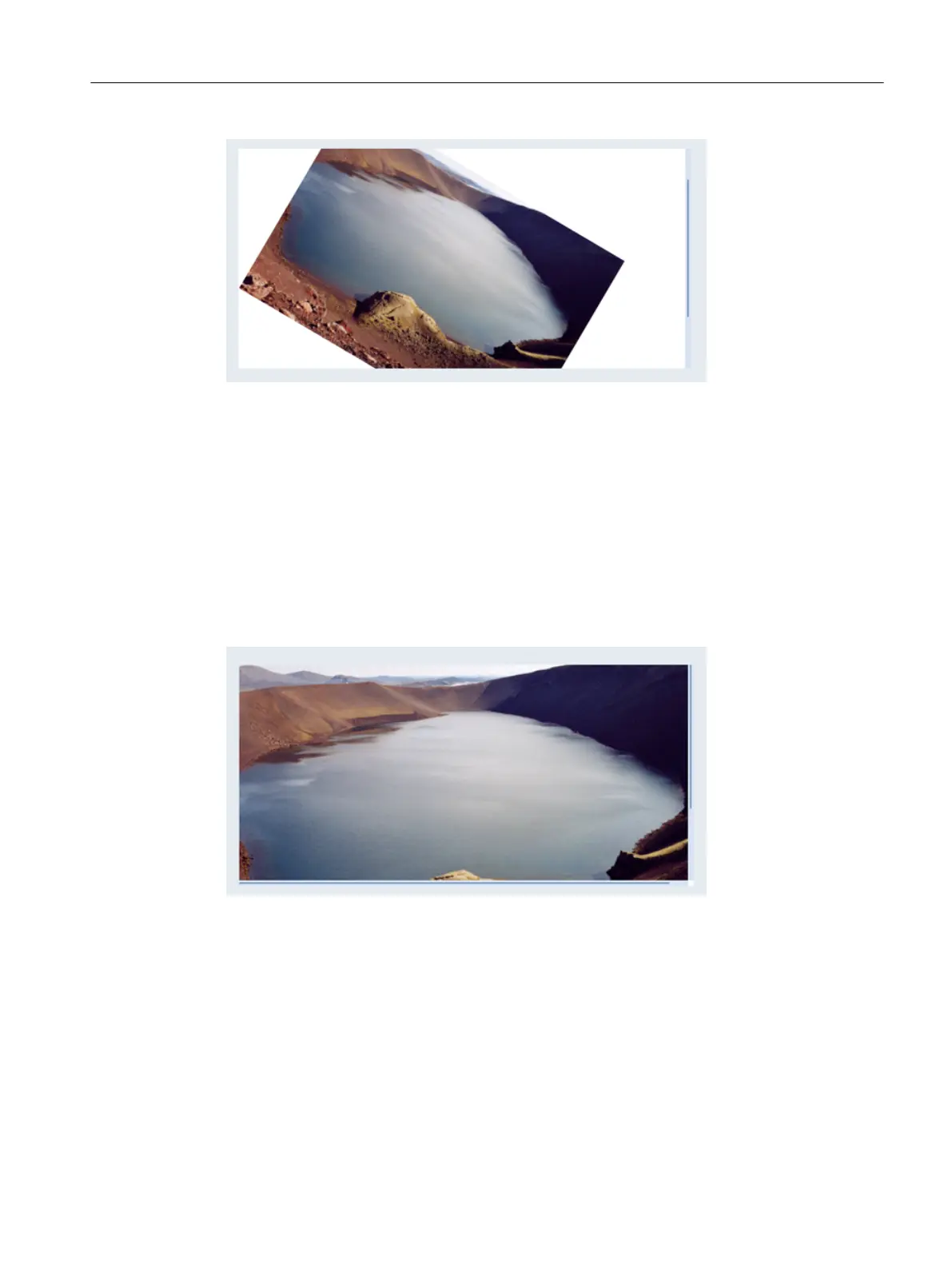

Example of bitmap zooming
Allowing zooming for a bitmap:
<control name="image_view" xpos="100" ypos="123" width="300"
height="200" fieldtype="imagebox" refvar="image_box_pict_name"
hotlink="true" >
<property item_data="1000" />
<property setzoommode="true" />
</control>
imageboxset control function
The properties can also be set using the control.imageboxset function.
Generating user dialogs
1.11 Multitouch operation
Easy XML
Programming Manual, 12/2017, 6FC5397-1DP40-6BA1 143
