Detailed Description
2.5 Block search
Mode Group, Channel, Program Operation, Reset Response (K1)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-35
Y
X
100
200
0
300
100 200 300 400
Approach point
(170,30)
Tool
change point
(450,300)
Approach movement
Target block N220

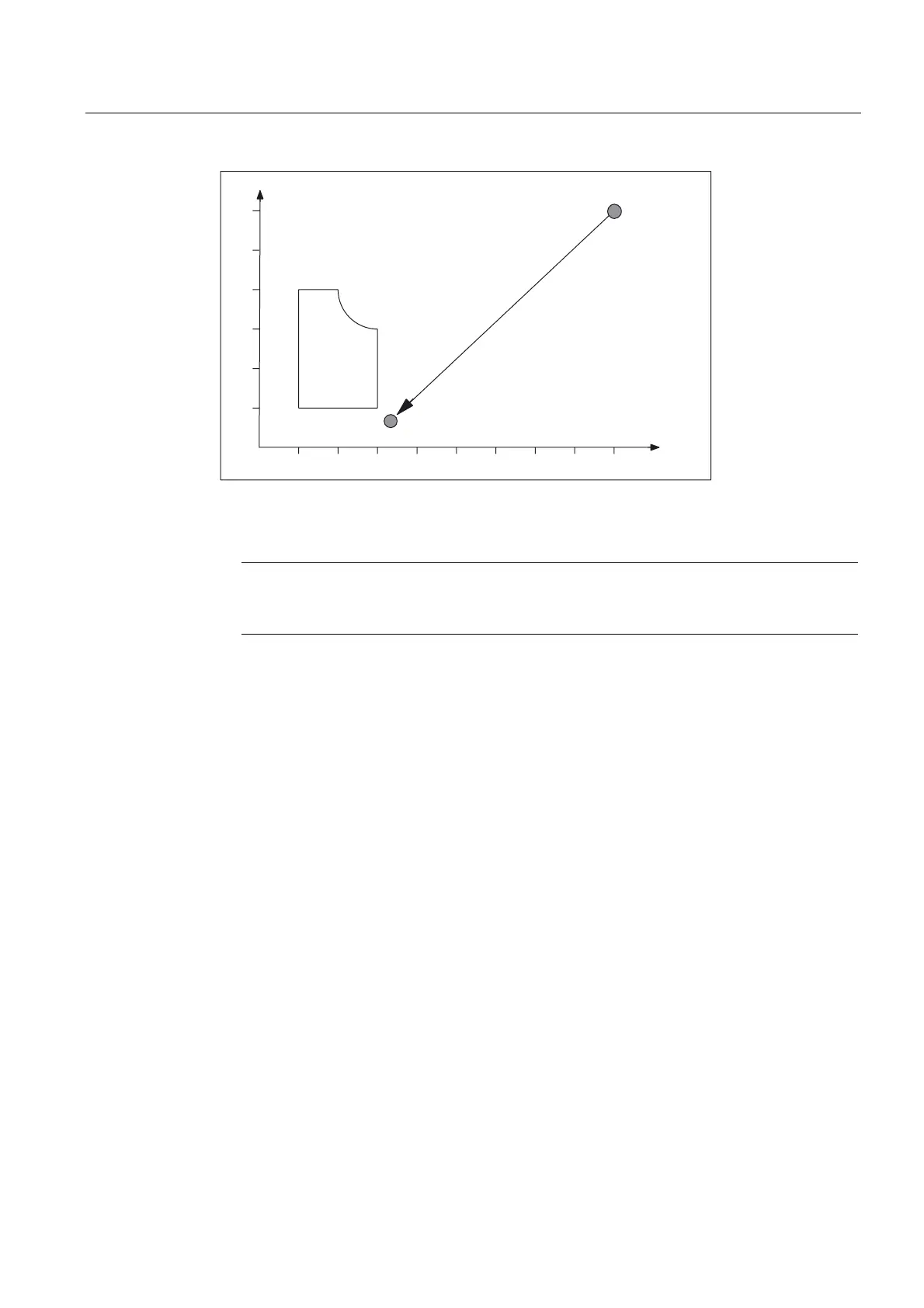

Fig. 2-4 Approach movement for search to block end point (target block N220)
Note
"Search to contour" with target block N220 would generate an approach movement to the
tool change point (start point of the target block).
Type 2 block search with calculation at contour
Example with automatic tool change after block search with active tool management:
1. to 3. Same as example for Type 4 block search
4. Search to contour, block number N260
5. to 10. Same as example for Type 4 block search
