Siemens SINUMERIK 810D Programming Manual

Frames
6.1 Coordinate transformation via frame variables
Job planning
6-4 Programming Manual, 03/2006 Edition, 6FC5398-2BP10-1BA0
$P_IFRAME

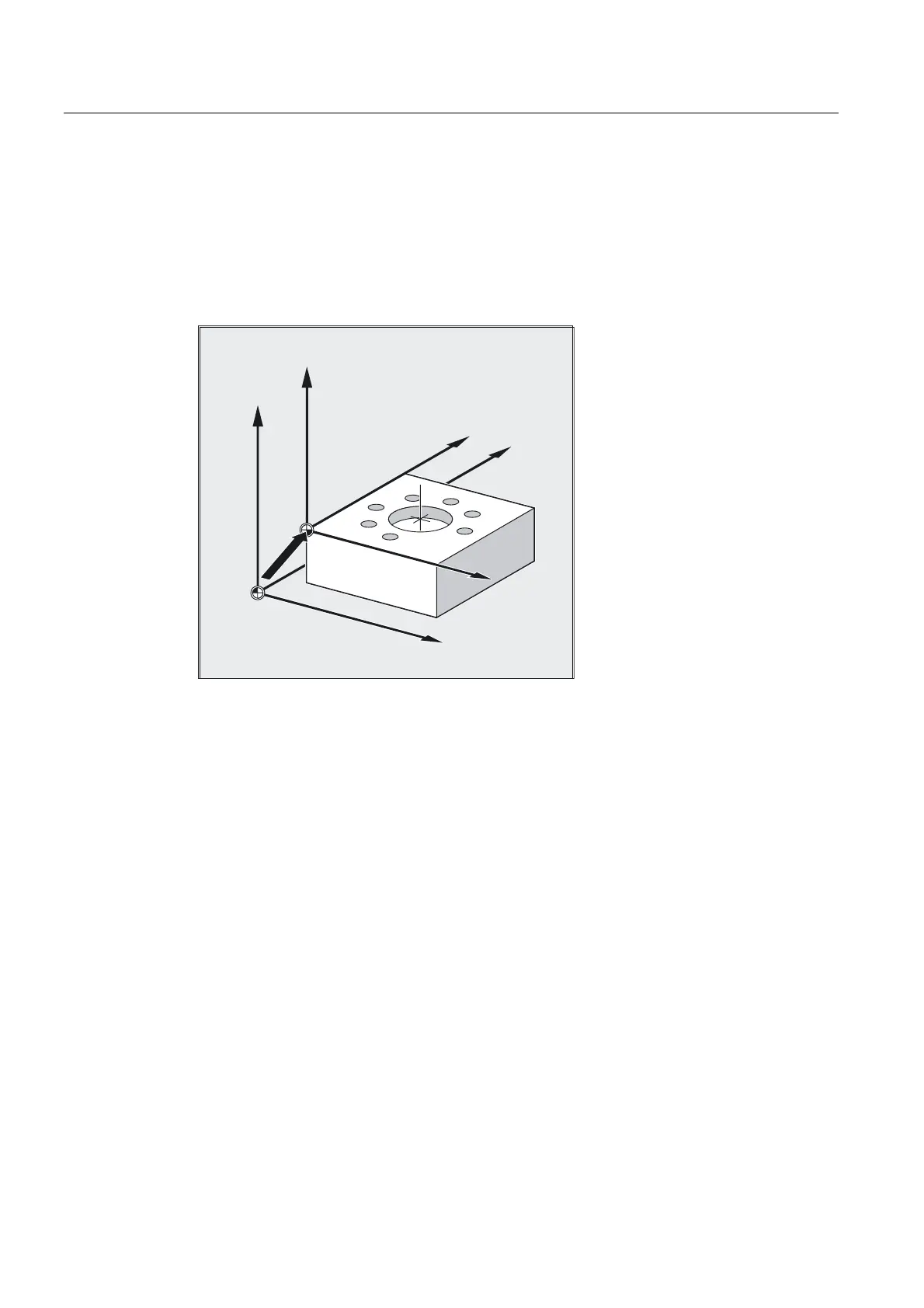

Current, settable frame variable that establishes the reference between the basic origin
system (BOS) and the settable zero system (SZS).
• $P_IFRAME corresponds to $P_UIFR[$P_IFRNUM]
• After G54 is programmed, for example, $P_IFRAME contains the translation, rotation,
scaling and mirroring defined by G54.
=
%16
<
%16
;
%16
(16
(16
(16
=
;
<
