DMP Compact Modules
8.1 DMP compact module 16I (6FC5 111-0CA01-0AA0)
The DMP compact module 16I is an encapsulated module. It can be inserted
into an NCU terminal block slot as a plug-on module.
PM765
Inputs
IN 7 ... IN 0
HIGH byte
X1
43210
01234 567MP
Status
LEDs
Fixing screw
Strip label
Inputs
IN 0 ... IN 7
LOW byte
0V
X3
X2
0
.
.
7
X3
X2
LOW byte
0
.
.
7
HIGH byte
1.5
0V
1.5

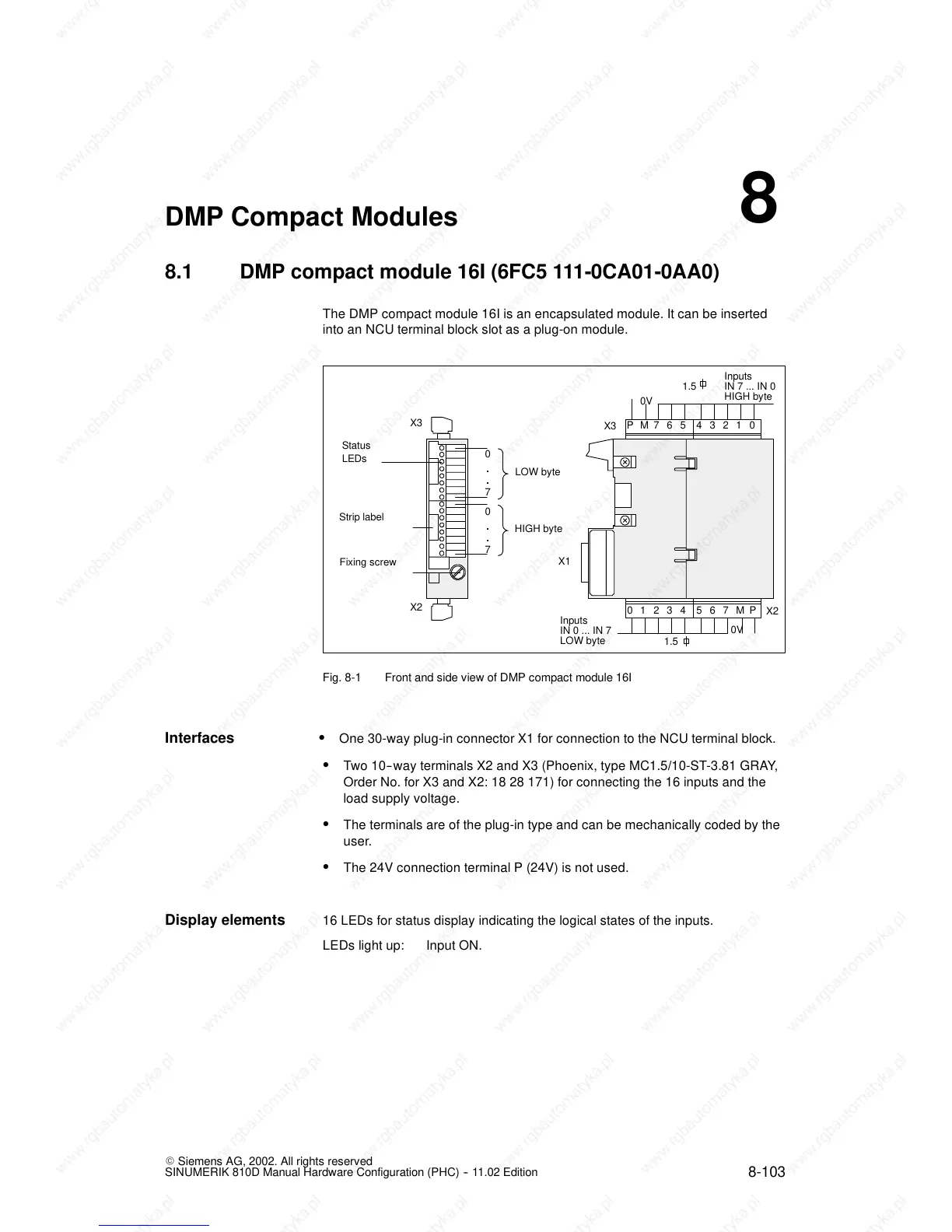

Fig. 8-1 Front and side view of DMP compact module 16I
S One 30-way plug-in connector X1 for connection to the NCU terminal block.
S Two 10--way terminals X2 and X3 (Phoenix, type MC1.5/10-ST-3.81 GRAY,
Order No. for X3 and X2: 18 28 171) for connecting the 16 inputs and the
load supply voltage.
S The terminals are of the plug-in type and can be mechanically coded by the
user.
S The 24V connection terminal P (24V) is not used.
16 LEDs for status display indicating the logical states of the inputs.
LEDs light up: Input ON.
Interfaces
Display elements
8
