Siemens SINUMERIK 810D

12.95
3.2 Installing the SINUMERIK 810D
3-47
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition

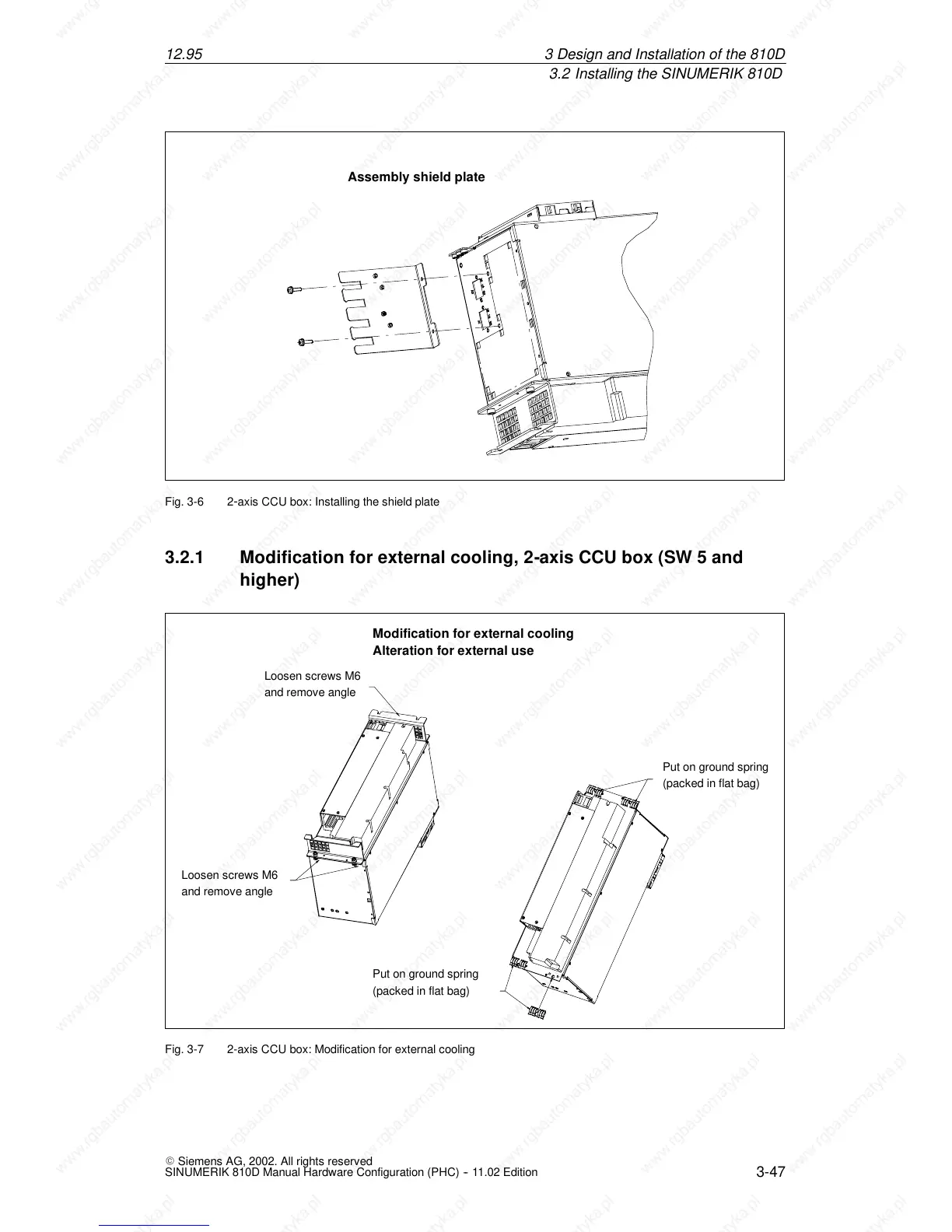

Assembly shield plate
Fig. 3-6 2-axis CCU box: Installing the shield plate
3.2.1 Modification fo r external cooling , 2-axis CCU b o x (SW 5 and
higher)
Modification for external cooling
Alteration for external use
Put on ground spring
(packed in flat bag)
Loosen screws M6
and remove angle
Put on ground spring
(packed in flat bag)
Loosen screws M6
and remove angle
Fig. 3-7 2-axis CCU box: Modification for external cooling
3
De
s
i
g
n
a
nd In
s
t
a
l
l
a
tion o
f
the
8
10D12.95
