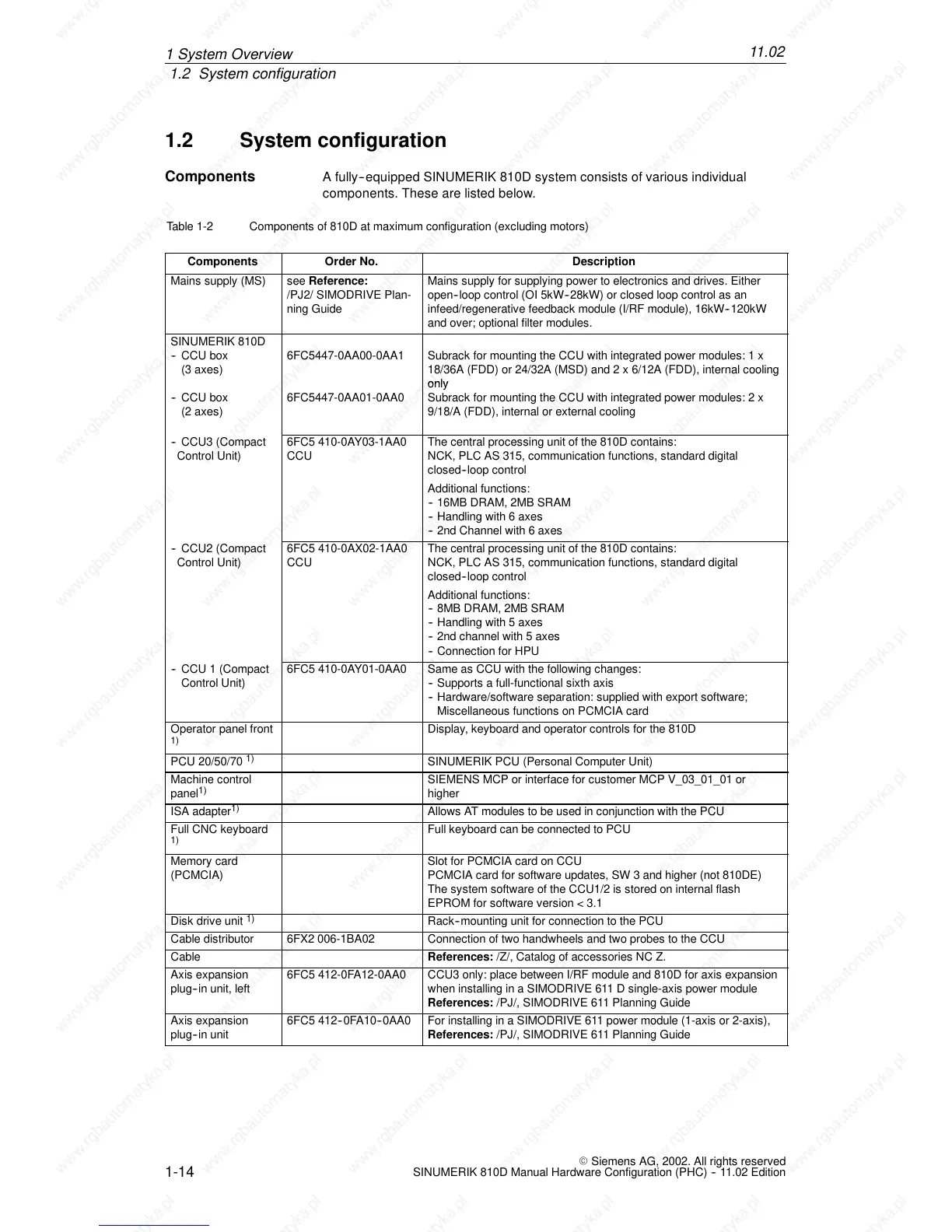

1.2 System configuration
1-14
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
1.2 System configuration
A fully --equipped SINUMERIK 810D system consists of various individual
components. These are listed below.
Table 1-2 Components of 810D at maximum configuration (excluding motors)
Components Order No. Description
Mains supply (MS) see Reference:
/PJ2/ SIMODRIVE Plan-
ning Guide
Mains supply for supplying power to electronics and drives. Either
open--loop control (OI 5kW--28kW) or closed loop control as an
infeed/regenerative feedback module (I/RF module), 16kW--120kW
and over; optional filter modules.
SINUMERIK 810D
-- CCU box
(3 axes)
6FC5447-0AA00-0AA1 Subrack for mounting the CCU with integrated power modules: 1 x
18/36A (FDD) or 24/32A (MSD) and 2 x 6/12A (FDD), internal cooling
o
n
l
y
-- CCU box
(2 axes)
6FC5447-0AA01-0AA0
on
l
y
Subrack for mounting the CCU with integrated power modules: 2 x
9/18/A (FDD), internal or external cooling
-- CCU3 (Compact
Control Unit)
6FC5 410-0AY03-1AA0
CCU
The central processing unit of the 810D contains:
NCK, PLC AS 315, communication functions, standard digital
closed--loop control
Additional functions:
-- 16MB DRAM, 2MB SRAM
-- Handling with 6 axes
-- 2nd Channel with 6 axes
-- CCU2 (Compact
Control Unit)
6FC5 410-0AX02-1AA0
CCU
The central processing unit of the 810D contains:
NCK, PLC AS 315, communication functions, standard digital
closed--loop control
Additional functions:
-- 8MB DRAM, 2MB SRAM
-- Handling with 5 axes
-- 2nd channel with 5 axes
-- Connection for HPU
-- CCU 1 (Compact
Control Unit)
6FC5 410-0AY01-0AA0 Same as CCU with the following changes:
-- Supports a full-functional sixth axis
-- Hardware/software separation: supplied with export software;
Miscellaneous functions on PCMCIA card
Operator panel front
1)
Display, keyboard and operator controls for the 810D
PCU 20/50/70
1)
SINUMERIK PCU (Personal Computer Unit)
Machine control
panel
1)
SIEMENS MCP or interface for customer MCP V_03_01_01 or
higher
ISA adapter
1)
Allows AT modules to be used in conjunction with the PCU
Full CNC keyboard
1)
Full keyboard can be connected to PCU
Memory card
(PCMCIA)
Slot for PCMCIA card on CCU
PCMCIA card for software updates, SW 3 and higher (not 810DE)
The system software of the CCU1/2 is stored on internal flash
EPROM for software version < 3.1
Disk drive unit
1)
Rack--mounting unit for connection to the PCU
Cable distributor 6FX2 006-1BA02 Connection of two handwheels and two probes to the CCU
Cable References: /Z/, Catalog of accessories NC Z.
Axis expansion
plug--in unit, left
6FC5 412-0F A12-0AA0 CCU3 only: place between I/RF module and 810D for axis expansion
when installing in a SIMODRIVE 611 D single-axis power module
References: /PJ/, SIMODRIVE 611 Planning Guide
Axis expansion
plug--in unit
6FC5 412--0FA10--0AA0 For installing in a SIMODRIVE 611 power module (1-axis or 2-axis),
References: /PJ/, SIMODRIVE 611 Planning Guide
Components
1S
y
s
tem Ove
r
view
11.02
