4.3 Measuring system
4-69
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition

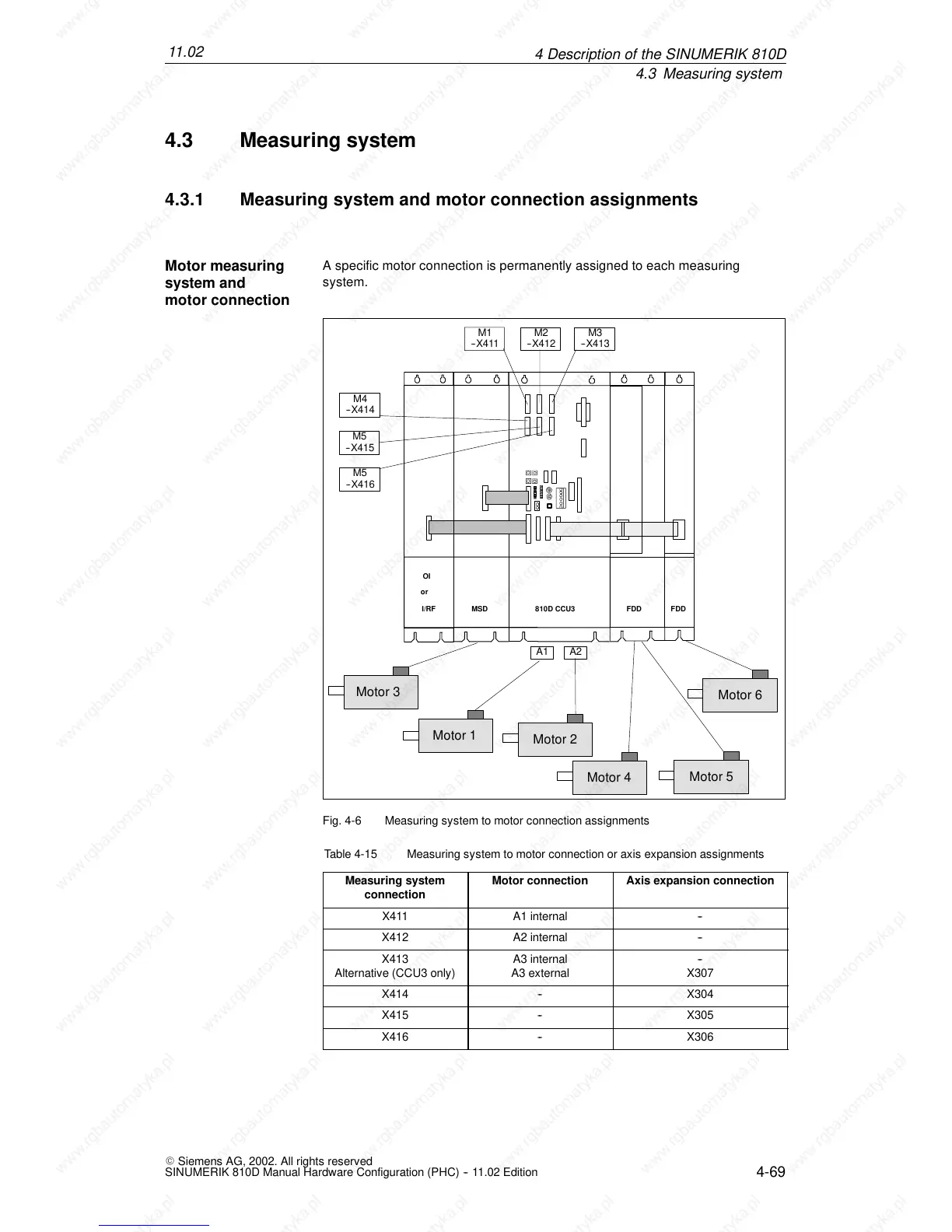

4.3 Measuring system
4.3.1 Measuring system and motor connection assignments
A specific motor connection is permanently assigned to each measuring
system.
FDD FDD810D CCU3
A1 A2
M1
-- X 411
M2
--X412
M3
--X413
M4
--X414
M5
--X415
Motor 3
Motor 1
Motor 2
Motor 4
Motor 5
I/RF
OI
or
MSD
M5
--X416
Motor 6
Fig. 4-6 Measuring system to motor connection assignments
Table 4-15 Measuring system to motor connection or axis expansion assignments
Measuring system
connection
Motor connection Axis expansion connection
X411 A1 internal --
X412 A2 internal --
X413
Alternative (CCU3 only)
A3 internal
A3 external
--
X307
X414 -- X304
X415 -- X305
X416 -- X306
Motor measuring
system and
motor connection
4De
s
c
r
i
p
tion o
f
the SINUM
E
RI
K
8
10D
11.02
