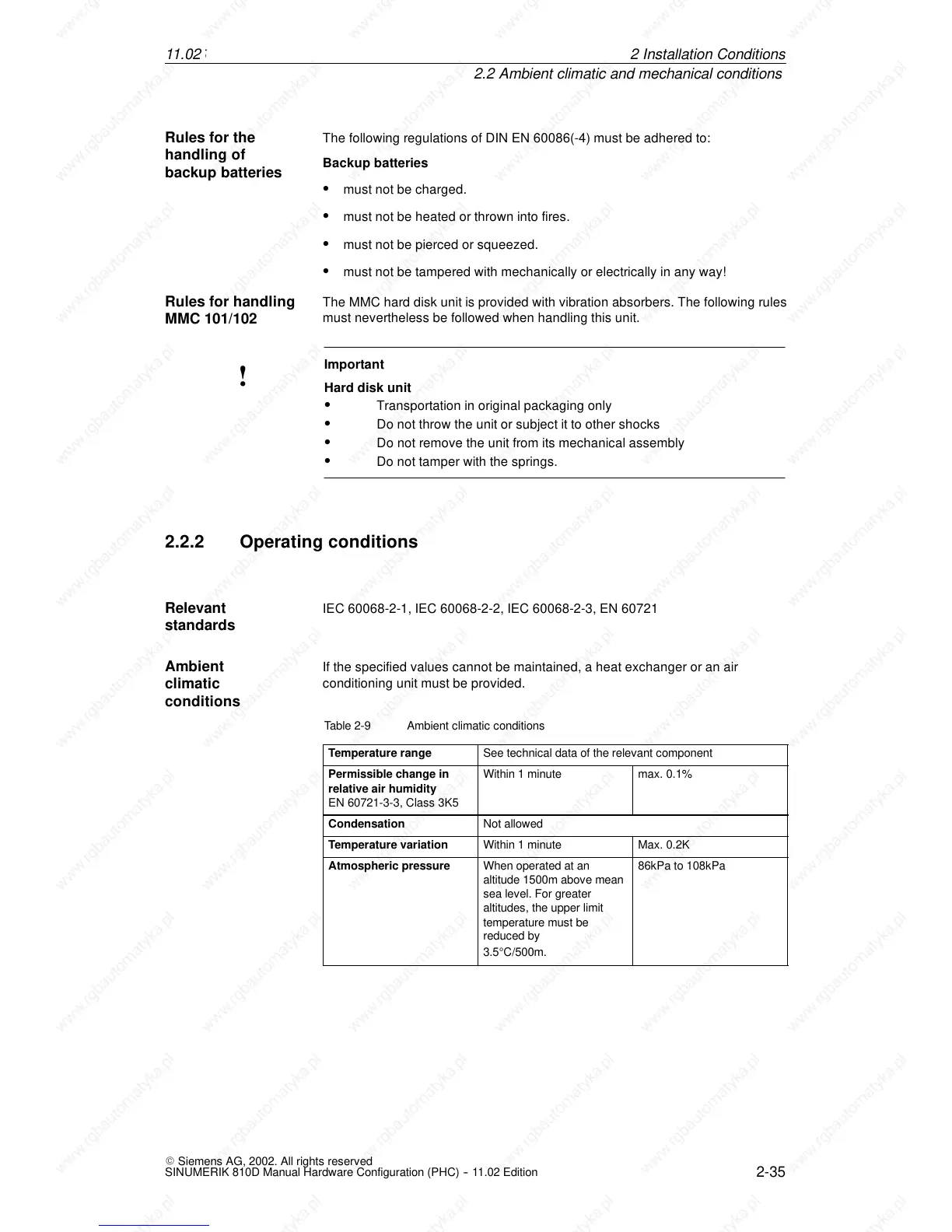

2.2 Ambient climatic and mechanical conditions
2-35
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
The following regulations of DIN EN 60086(-4) must be adhered to:
Backup batteries
S must not be charged.
S must not be heated or thrown into fires.
S must not be pierced or squeezed.
S must not be tampered with mechanically or electrically in any way!
The MMC hard disk unit is provided with vibration absorbers. The following rules
must nevertheless be followed when handling this unit.
!
Important
Hard disk unit
S Transportation in original packaging only
S Do not throw the unit or subject it to other shocks
S Do not remove the unit from its mechanical assembly
S Do not tamper with the s prings.
2.2.2 Operating conditions
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3, EN 60721
If the specified values cannot be maintained, a heat exchanger or an air
conditioning unit must be provided.
Table 2-9 Ambient climatic conditions
Temperature range
See technical data of the relevant component
Permissible change in
relative air humidity
EN 60721-3-3, Class 3K5
Within1minute max. 0.1%
Condensation Not allowed
Temperature variation Within1minute Max. 0.2K
Atmospheric pressure When operated at an
altitude 1500m above mean
sea level. For greater
altitudes, the upper limit
temperature must be
reduced by
3.5C/500m.
86kPa to 108kPa
Rules for the
handling of
backup batteries
Rules for handling
MMC 101/102
Relevant
standards
Ambient
climatic
conditions
2In
s
t
a
l
l
a
tion Condition
s
11.02
