12.95
8.5 DMP compact module 1I NC analog (6FC5 211-0AA10-0AA0)
8-112
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
8.5 DMP compact module 1I NC analog
(6FC5 211-0AA10-0AA0)
The DMP compact module 1I NC (6FC5 211-0AA10-0AA0) analog is an
encapsulated rapid analog input module with an access time of
75μs. It can be inserted into an NCU terminal block slot as a plug-on module
(maximum of four modules per terminal block).
M2M1
P2P1
24VDC
6, 1 Shield
2 Ground
3 Analog input In+
4 Analog input In--
5 Ground
X1
Status
LED
Fixing screw
Strip label
POWER
SUPPLY
O.K.
ANALOG
IN
Supply terminals
X3
X2
0V
1
32
1
2
S1
S2
2.5
2.5
6..1
Terminal:

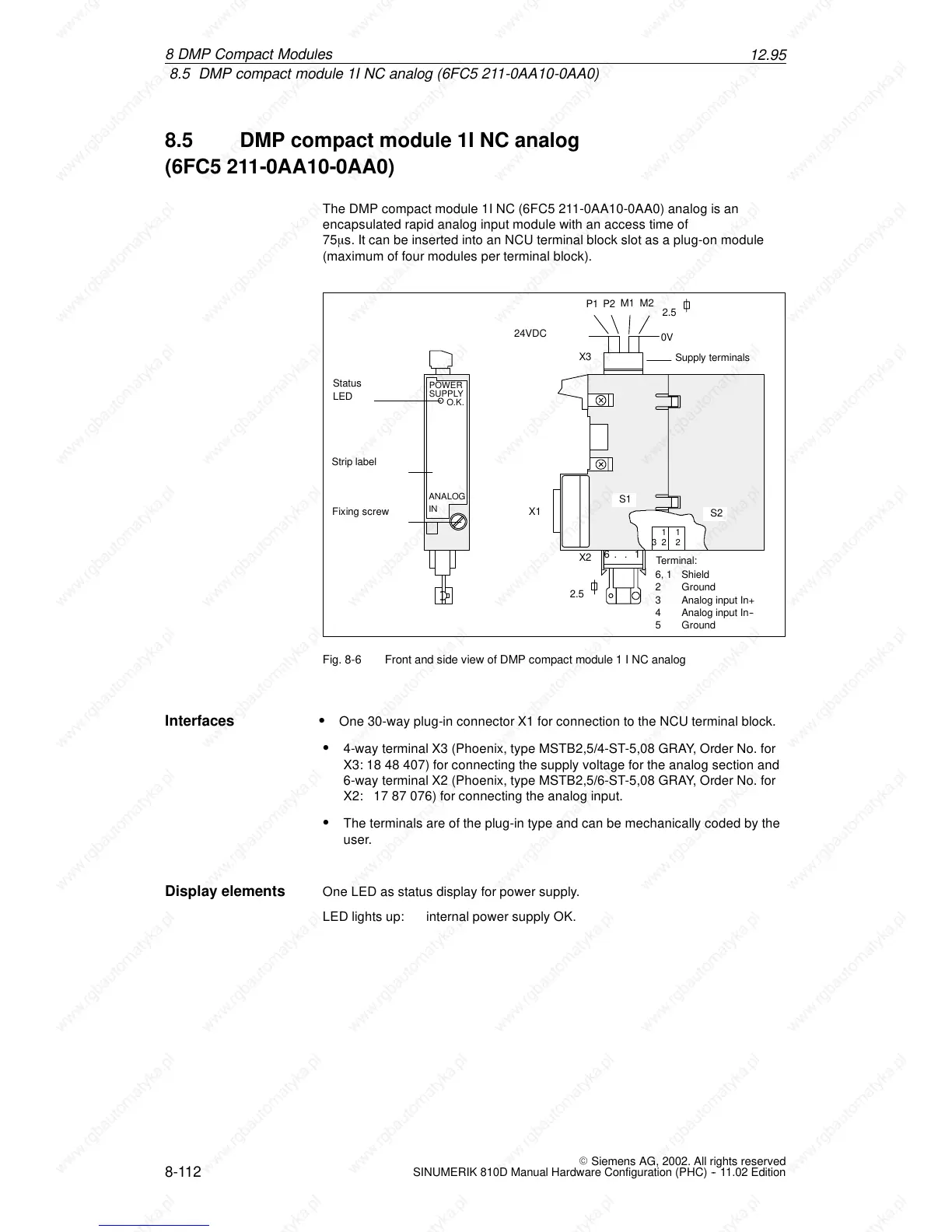

Fig. 8-6 Front and side view of DMP compact module 1 I NC analog
S One 30-way plug-in connector X1 for connection to the NCU terminal block.
S 4-way terminal X3 (Phoenix, type MSTB2,5/4-ST-5,08 GRAY, Order No. for
X3: 18 48 407) for connecting the supply voltage for the analog section and
6-way terminal X2 (Phoenix, type MSTB2,5/6-ST-5,08 GRAY, Order No. for
X2: 17 87 076) for connecting the analog input.
S The terminals are of the plug-in type and can be mechanically coded by the
user.
One LED as status display for power supply.
LED lights up: internal power supply OK.
Interfaces
Display elements
DMP Com
p
a
ct Modu
l
e
s
