Axis Expansion
5.1 Axis expansion plug-in unit
The axis expansion plug-in unit is mounted in a SIMODRIVE 611 power module
and then connected to the SINUMERIK 810D at axis expansion terminal
X304--X306. The plug-in unit is designed for use in 1-axis and 2-axis power
modules.
A left axis expansion plug-in unit is available for the CCU3 with the terminal of
connector X307 (CCU3) and X301 (expansion plug-in unit) at the same height.
SIMODRIVE
SIEMENS
Axis expansion
plug-in unit
Axis expansion plug-in unit, left
MS
(I/RF or UPS)
PS
PS810D
(CCU3)

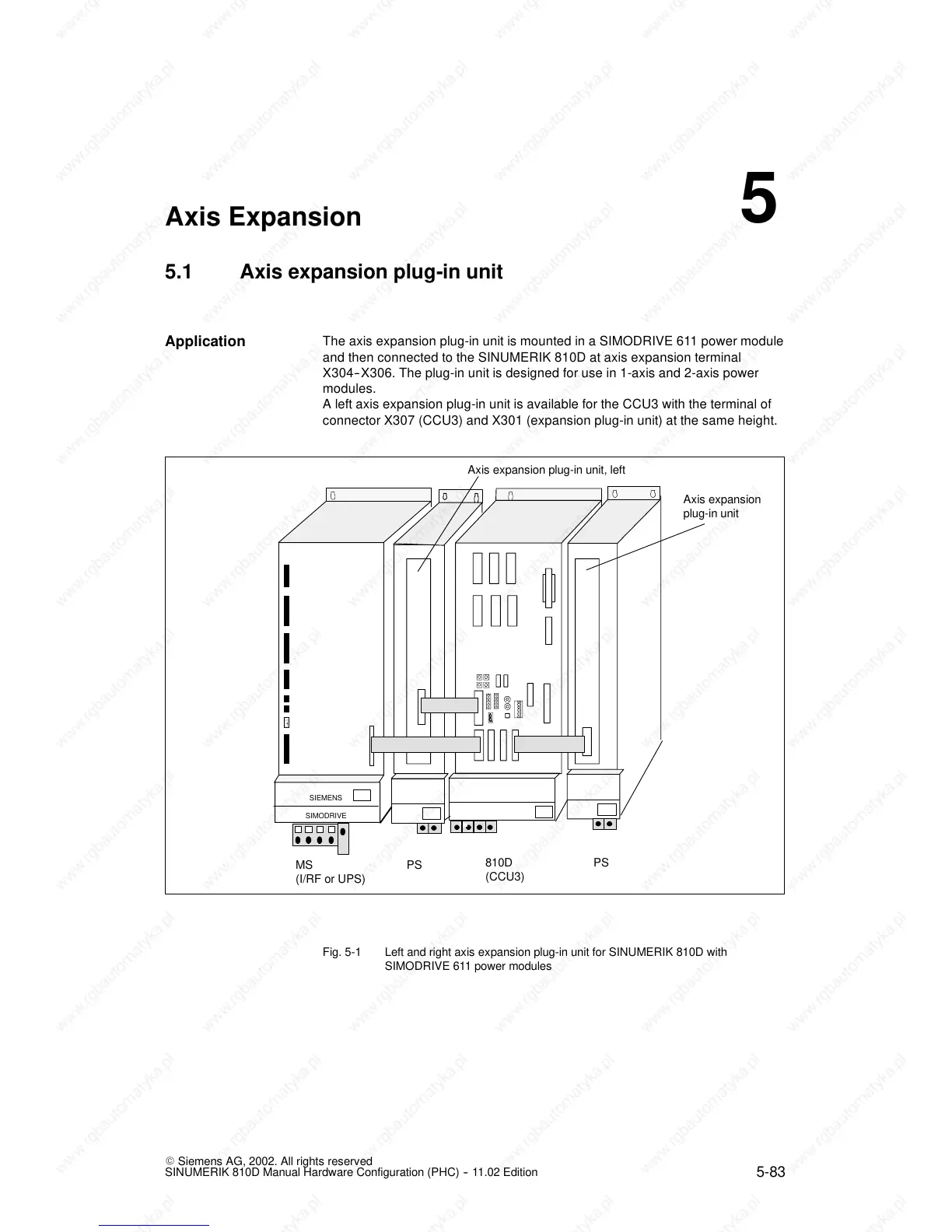

Fig. 5-1 Left and right axis expansion plug-in unit for SINUMERIK 810D with
SIMODRIVE 611 power modules
Application
5
