8.3 DMP compact module 8O (6FC5 111-0CA03-0AA1)
The DMP compact module 8O is an encapsulated module. It can be inserted
into an NCU terminal block slot as a plug--on module.
X3
765
Outputs
OUT 7 ... OUT 4
X1
4
Status
LEDs
Fixing screw
Strip label
Outputs
OUT 0 ... OUT 3
0V
X2
0
.
.
7
X3
X2
24V
LOAD
DC 2.5
210
0V
24V
LOAD
DC 2.5
PM
PM3

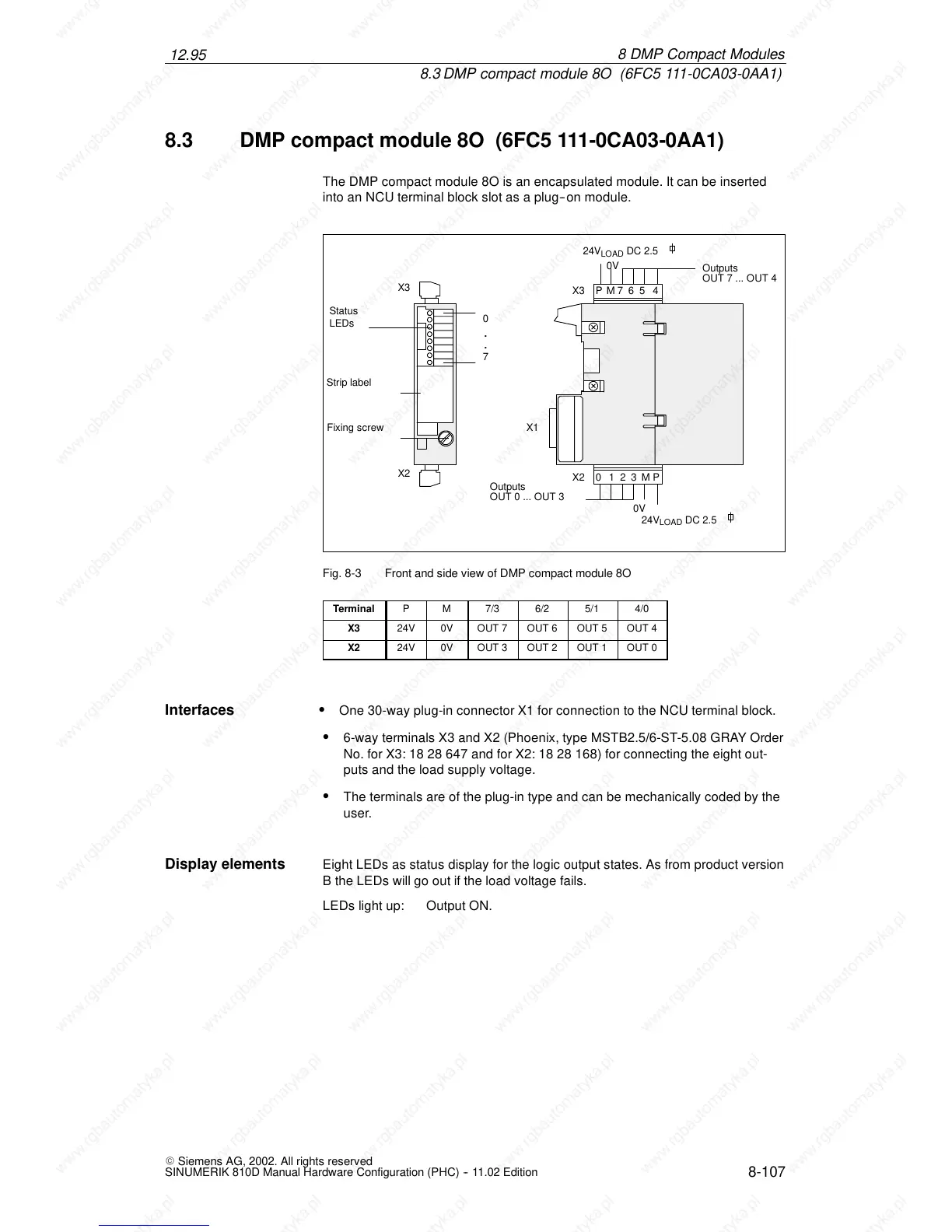

Fig. 8-3 Front and side view of DMP compact module 8O
Terminal P M 7/3 6/2 5/1 4/0
X3 24V 0V OUT 7 OUT 6 OUT 5 OUT 4
X2 24V 0V OUT 3 OUT 2 OUT 1 OUT 0
S One 30-way plug-in connector X1 for connection to the NCU terminal block.
S 6-way terminals X3 and X2 (Phoenix, type MSTB2.5/6-ST-5.08 GRAY Order
No. for X3: 18 28 647 and for X2: 18 28 168) for c onnecting the eight out-
puts and the load supply voltage.
S The terminals are of the plug-in type and can be mechanically coded by the
user.
Eight LEDs as status display for the logic output states. As from product version
B the LEDs will go out if the load voltage fails.
LEDs light up: Output ON.
Interfaces
Display elements
