3-41
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
Design and Installation of the 810D
3.1 Design of the SINUMERIK 810D
The SINUMERIK 810D consists of three components:
CCU3 module 3-axis CCU box
2-axis CCU box

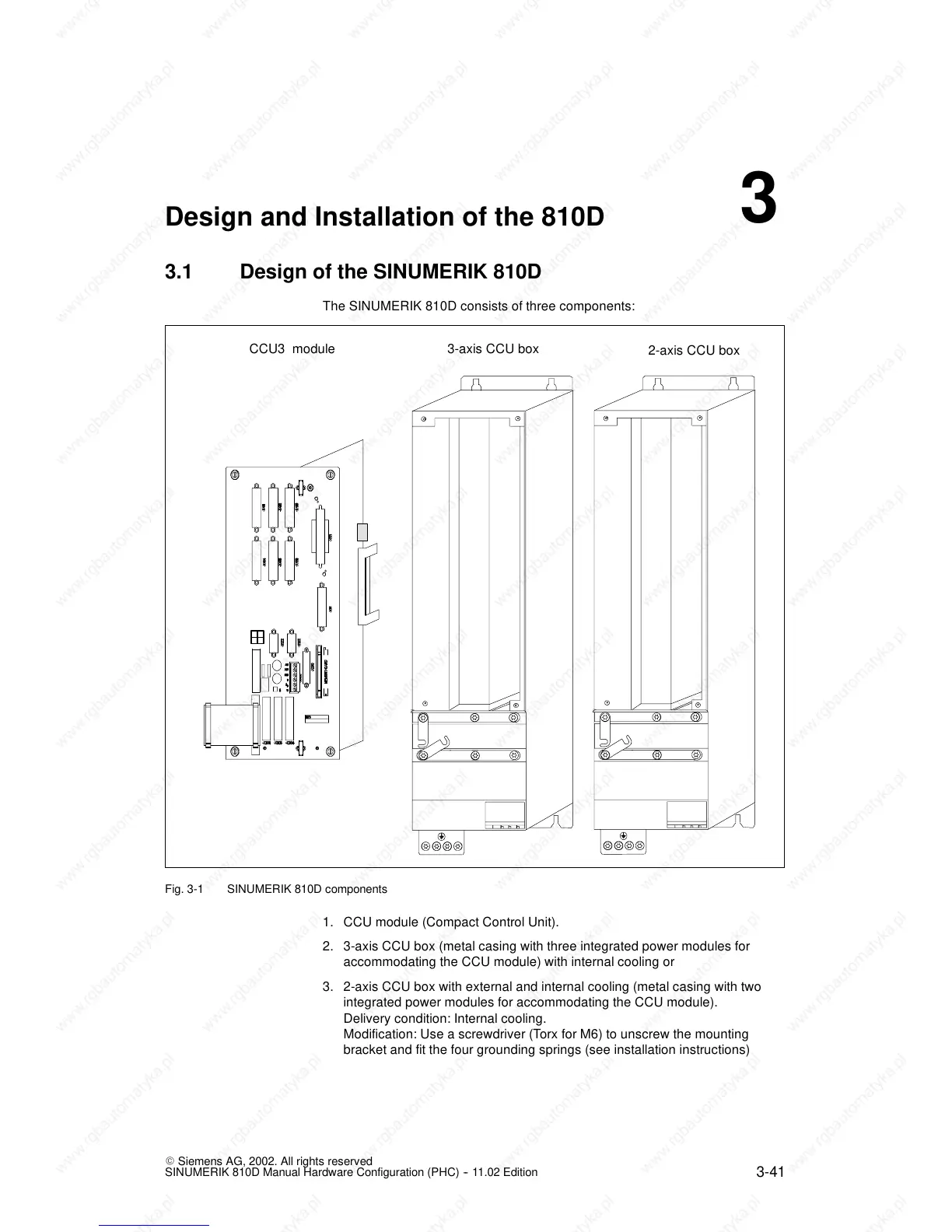

Fig. 3-1 SINUMERIK 810D components
1. CCU module (Compact Control Unit).
2. 3-axis CCU box (metal casing with three integrated power modules for
accommodating the CCU module) with internal cooling or
3. 2-axis CCU box with external and internal cooling (metal casing with two
integrated power modules for accommodating the CCU module).
Delivery condition: Internal cooling.
Modification: Use a screwdriver (Torx for M6) to unscrew the mounting
bracket and fit the four grounding springs (see installation instructions)
3
