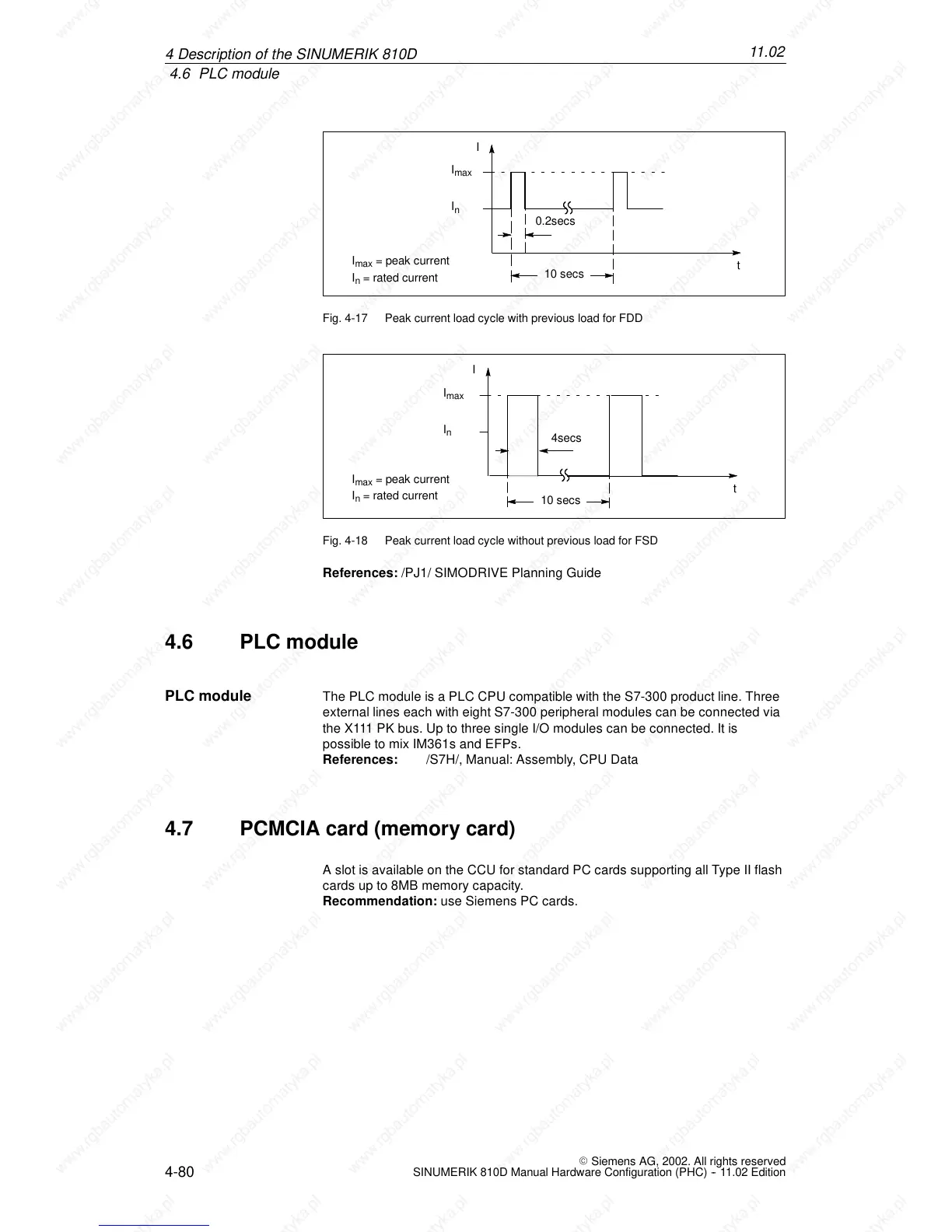

Fig. 4-17 Peak current load cycle with previous load for FDD
t
I
I
max
I
n
4secs
10 secs
I
max
= peak current
I
n
= rated current
Fig. 4-18 Peak current load cycle without previous load for FSD
References: /PJ1/ SIMODRIVE Planning Guide
4.6 PLC module
The PLC module is a PLC CPU compatible with the S7-300 product line. Three
external lines each with eight S7-300 peripheral modules can be connected via
the X111 PK bus. Up to three single I/O modules can be connected. It is
possible to mix IM361s and EFPs.
References: /S7H/, Manual: Assembly, CPU Data
4.7 PCMCIA card (memory card)
A slot is available on the CCU for standard PC cards supporting all Type II flash
cards up to 8MB memory capacity.
Recommendation: use Siemens PC cards.
