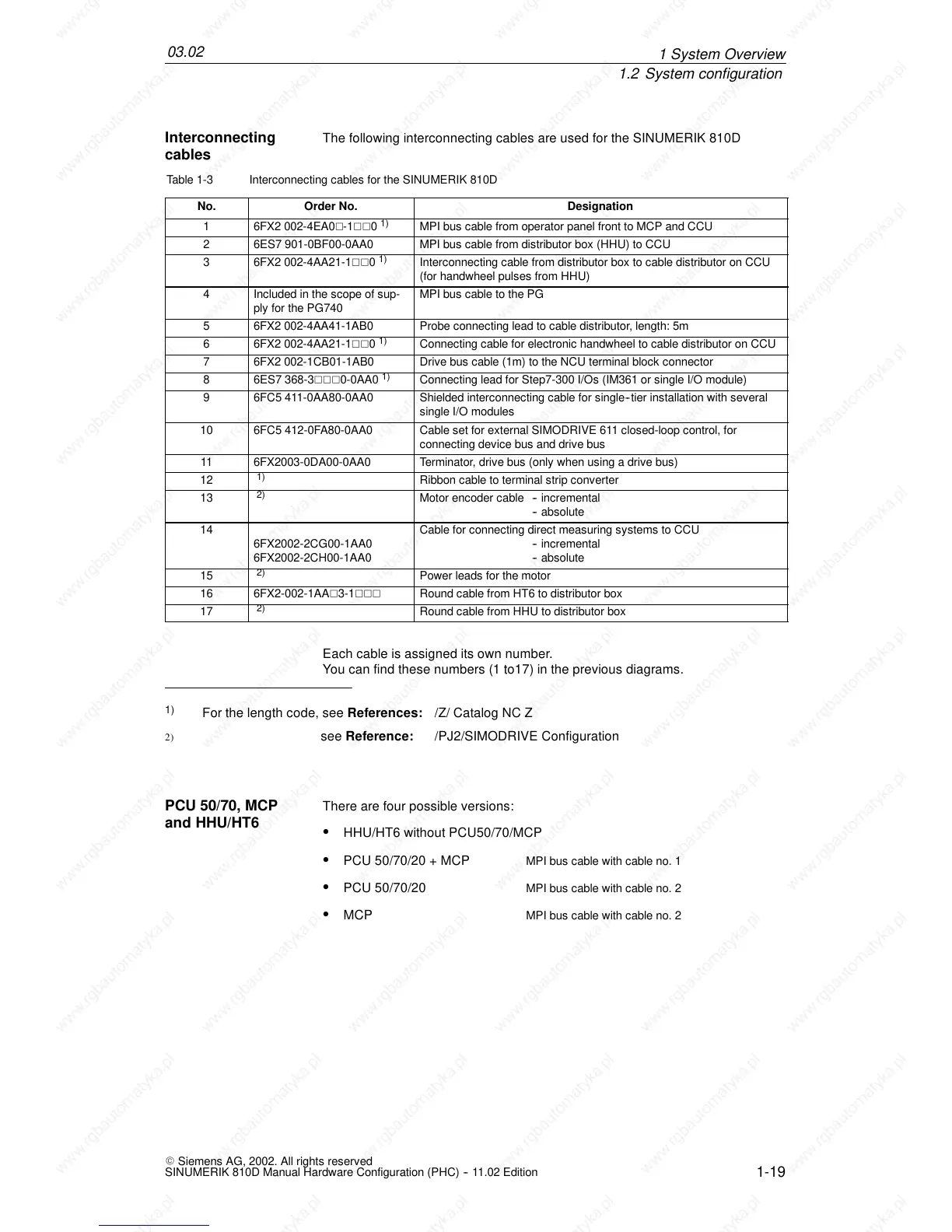

The following interconnecting cables are used for the SINUMERIK 810D
Table 1-3 Interconnecting cables for the SINUMERIK 810D
No.
Order No. Designation
1 6FX2 002-4EA0V-1VV0
1)
MPI bus cable from operator panel front to MCP and CCU
2 6ES7 901-0BF00-0AA0 MPI bus cable from distributor box (HHU) to CCU
3 6FX2 002-4AA21-1VV0
1)
Interconnecting cable from distributor box to cable distributor on CCU
(for handwheel pulses from HHU)
4 Included in the scope of sup-
ply for the PG740
MPI bus cable to the PG
5 6FX2 002-4AA41-1AB0 Probe connecting lead to cable distributor , length: 5m
6 6FX2 002-4AA21-1VV0
1)
Connecting cable for electronic handwheel to cable distributor on CCU
7 6FX2 002-1CB01-1AB0 Drive bus cable (1m) to the NCU terminal block connector
8 6ES7 368-3VVV0-0AA0
1)
Connecting lead for Step7-300 I/Os (IM361 or single I/O module)
9 6FC5 411-0AA80-0AA0 Shielded interconnecting cable for single--tier installation with several
single I/O modules
10 6FC5 412-0F A80-0AA0 Cable set for external SIMODRIVE 61 1 closed-loop control, for
connecting device bus and drive bus
11 6FX2003-0DA00-0AA0 Terminator, drive bus (only when using a drive bus)
12
1)
Ribbon cable to terminal strip converter
13
2)
Motor encoder cable -- incremental
-- absolute
14
6FX2002-2CG00-1AA0
6FX2002-2CH00-1AA0
Cable for connecting direct measuring systems to CCU
-- incremental
-- absolute
15
2)
Power leads for the motor
16 6FX2-002-1AAV3-1VVV Round cable from HT6 to distributor box
17
2)
Round cable from HHU to distributor box
Each cable is assigned its own number.
You can find these numbers (1 to17) in the previous diagrams.
1)
For the length code, see References: /Z/ Catalog NC Z
2) see Reference: /PJ2/SIMODRIVE Configuration
There are four possible versions:
S HHU/HT6 without PCU50/70/MCP
S PCU 50/70/20 + MCP MPI bus cable with cable no. 1
S PCU 50/70/20 MPI bus cable with cable no. 2
S MCP MPI bus cable with cable no. 2
