12.95

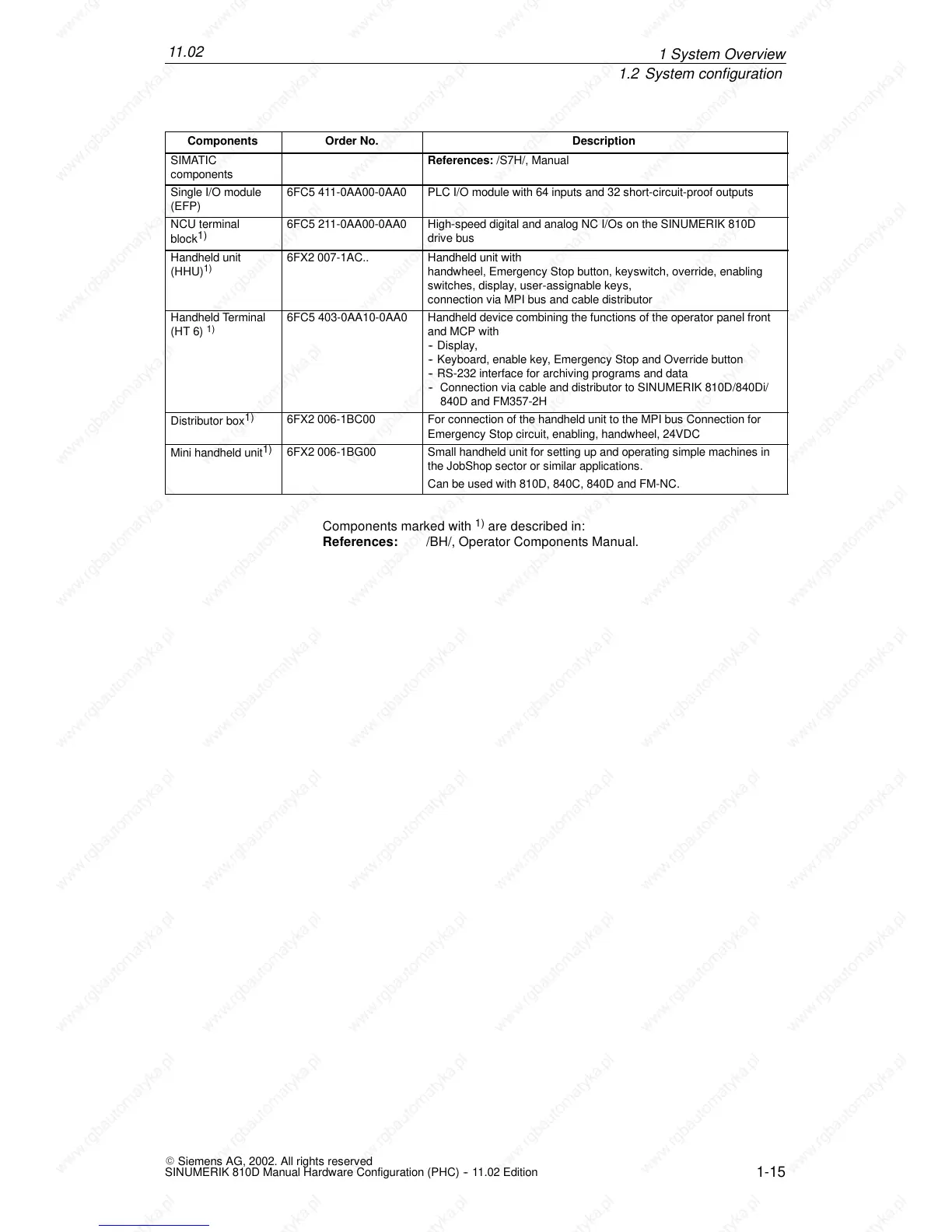

1.2 System configuration
1-15
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
Components DescriptionOrder No.
SIMATIC
components
References: /S7H/, Manual
Single I/O module
(EFP)
6FC5 411-0AA00-0AA0 PLC I/O module with 64 inputs and 32 short-circuit-proof outputs
NCU terminal
block
1)
6FC5 211-0AA00-0AA0 High-speed digital and analog NC I/Os on the SINUMERIK 810D
drive bus
Handheld unit
(HHU)
1)
6FX2 007-1AC.. Handheld unit with
handwheel, Emergency Stop button, keyswitch, override, enabling
switches, display, user-assignable keys,
connection via MPI bus and cable distributor
Handheld Terminal
(HT 6)
1)
6FC5 403-0AA10-0AA0 Handheld device combining the functions of the operator panel front
and MCP with
-- D i s p l a y ,
-- Keyboard, enable key, Emergency Stop and Override button
-- RS-232 interface for archiving programs and data
-- Connection via cable and distributor to SINUMERIK 810D/840Di/
840D and FM357-2H
Distributor box
1)
6FX2 006-1BC00 For connection of the handheld unit to the MPI bus Connection for
Emergency Stop circuit, enabling, handwheel, 24VDC
Mini handheld unit
1)
6FX2 006-1BG00 Small handheld unit for setting up and operating simple machines in
the JobShop sector or similar applications.
Can be used with 810D, 840C, 840D and FM-NC.
Components marked with
1)
are described in:
References: /BH/, Operator Components Manual.
