Siemens SINUMERIK 810D Configuration Manual

12.95
8.4 DMP compact module 1I analog (6FC5 111-0CA04-0AA0)
8-110
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
Analog voltage measurement
VV
Measurement with PT100
Differential input
(common-mode
interferences
are suppressed)
Unipolar
(standard)
PT100 with
4-way connector
PT100 with
2-way connect
o
S
6
M
5
--
4
+
3
2
S
1
X2
S
6
M
5
--
4
+
3
2
S
1
X2
S
6
M
5
--
4
+
3
S
1
X2
S
6
M
5
--
4
+
3
I
2
S
1
X2
I
2

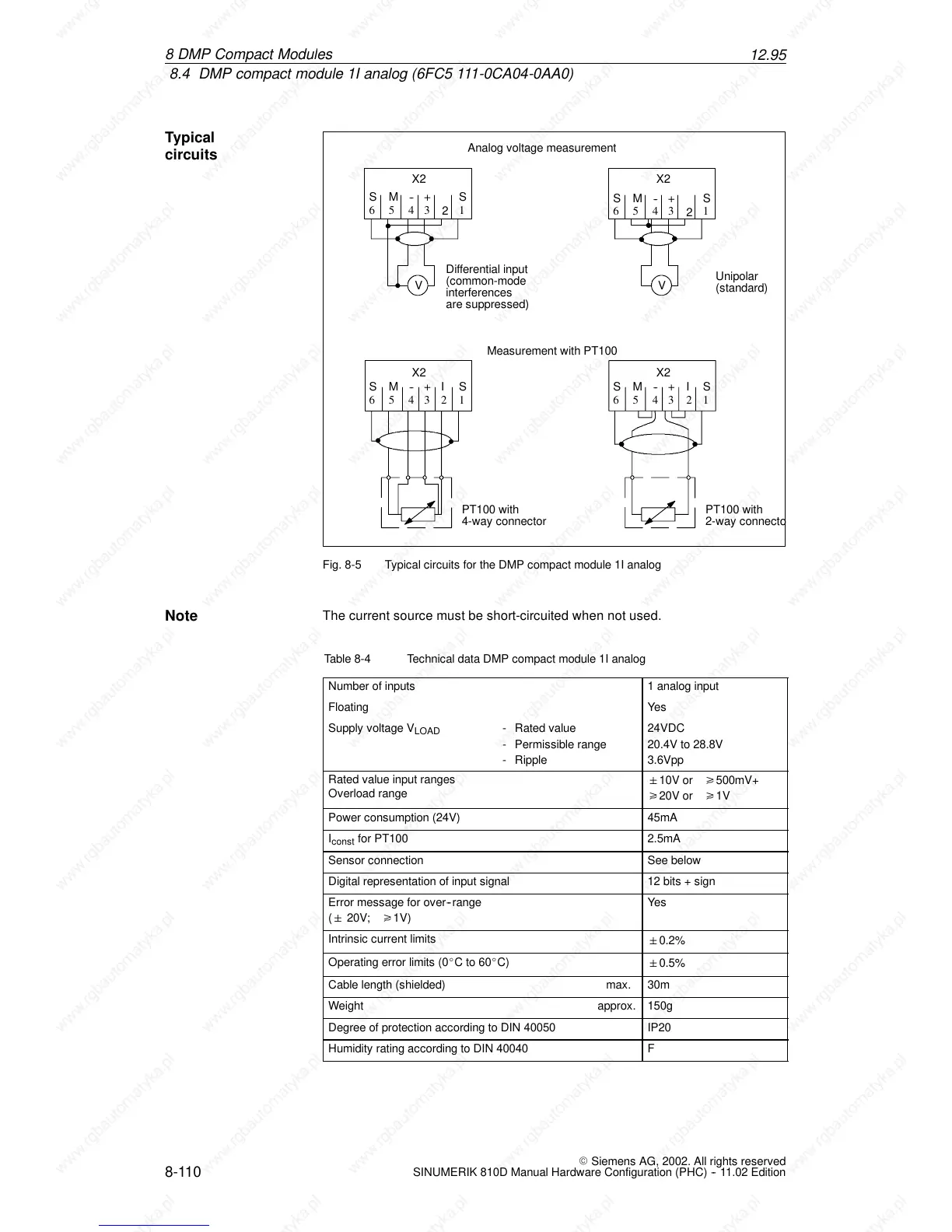

Fig. 8-5 Typical circuits for the DMP compact module 1I analog
The current source must be short-circuited when not used.
Table 8-4 Technical data DMP compact module 1I analog
Number of inputs
1 analog input
Floating Yes
Supply voltage V
LOAD
- Rated value 24VDC
- Permissible range 20.4V to 28.8V
- Ripple 3.6Vpp
Rated value input ranges
Overload range
10V or 500mV+
20V or 1V
Power consumption (24V) 45mA
I
const
for PT100 2.5mA
Sensor connection See below
Digital representation of input signal 12 bits + sign
Error message for over--range
( 20V; 1V)
Yes
Intrinsic current limits
0.2%
Operating error limits (0_Cto60_C)
0.5%
Cable length (shielded) max. 30m
Weight approx. 150g
Degree of protection according to DIN 40050 IP20
Humidity rating according to DIN 40040 F
Typical
circuits
Note
8
DMP Com
p
a
ct Modu
l
e
s
