8.5 DMP compact module 1I NC analog (6FC5 211-0AA10-0AA0)
8-114
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition

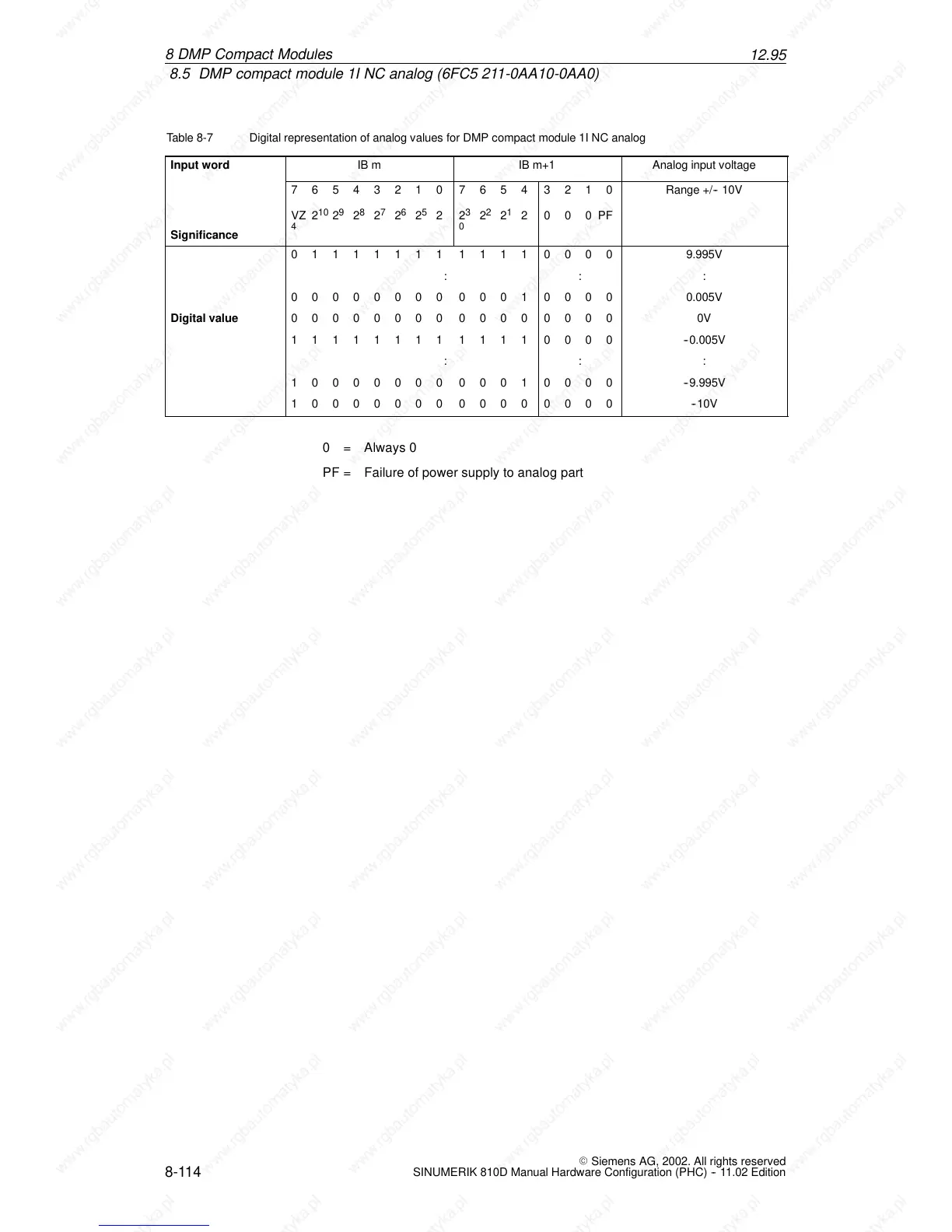

Table 8-7 Digital representation of analog values for DMP compact module 1I NC analog
Input word
IB m IB m+1 Analog input voltage
76543210 76543210 Range +/-- 10V
Significance
VZ 2
10
2
9
2
8
2
7
2
6
2
5
2
4
2
3
2
2
2
1
2
0
000PF
01111111 11110000 9.995V
: : :
00000000 00010000 0.005V
Digital value 00000000 0000 0000 0V
11111111 11110000 --0.005V
: : :
10000000 00010000 --9.995V
10000000 00000000 --10V
0=Always0
PF = Failure of power supply to analog part
