12.95
8.6 DMP compact module 1O analog (6FC5 111-0CA05-0AA0)
8-116
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition

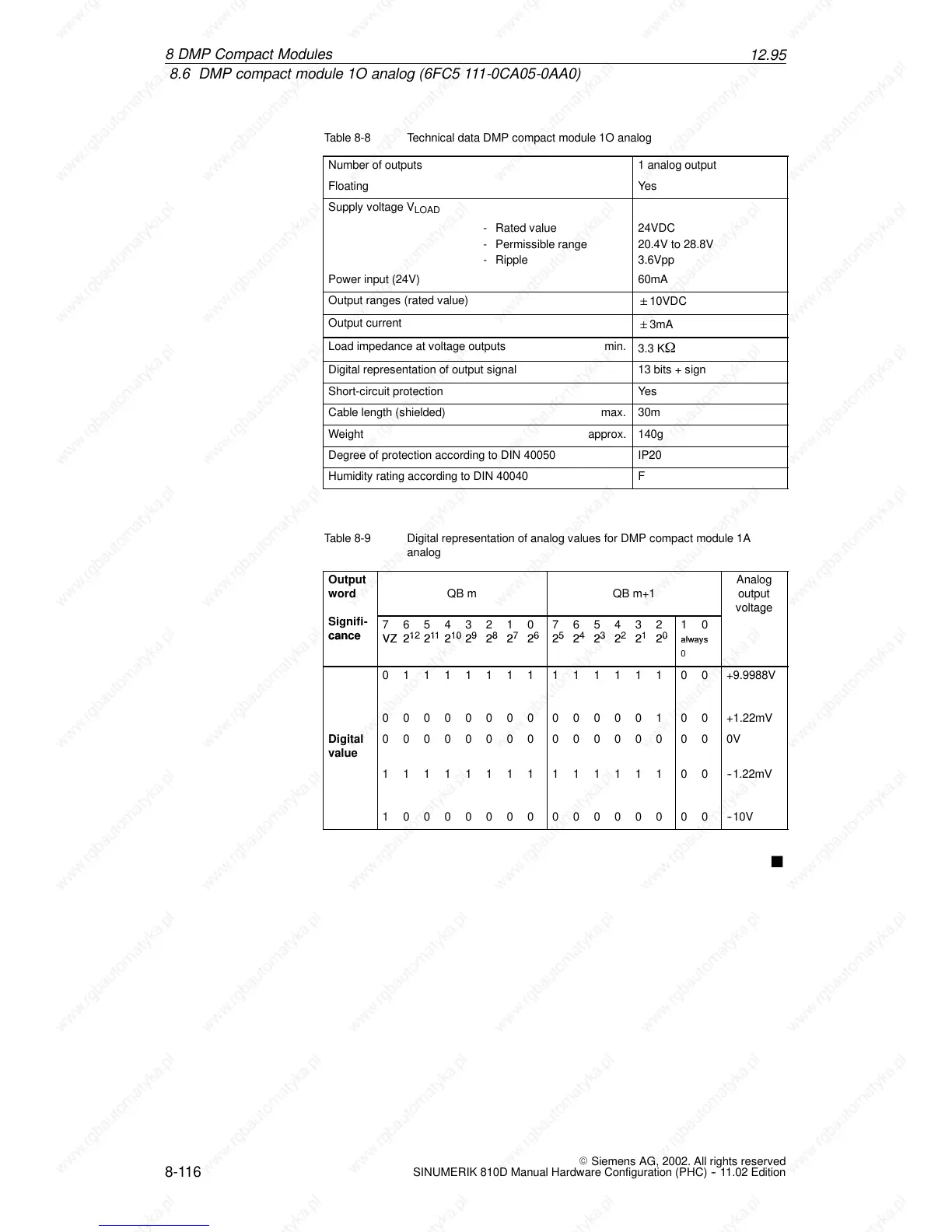

Table 8-8 Technical data DMP compact module 1O analog
Number of outputs
1 analog output
Floating Yes
Supply voltage V
LOAD
- Rated value 24VDC
- Permissible range 20.4V to 28.8V
- Ripple 3.6Vpp
Power input (24V) 60mA
Output ranges (rated value)
10VDC
Output current
3mA
Load impedance at voltage outputs min.
3.3 Kτ
Digital representation of output signal 13 bits + sign
Short-circuit protection Yes
Cable length (shielded) max. 30m
Weight approx. 140g
Degree of protection according to DIN 40050 IP20
Humidity rating according to DIN 40040 F
Table 8-9 Digital representation of analog values for DMP compact module 1A
analog
Output
word
QB m QB m+1
Analog
output
voltage
Signifi-
cance
76543210
V
Z
2
12
2
11
2
10
2
9
2
8
2
7
2
6
765432
2
5
2
4
2
3
2
2
2
1
2
0
10
a
l
w
a
y
s
v
o
l
t
a
g
e
c
a
n
c
e
V
Z
2
1
2
2
1
1
2
1
0
2
9
2
8
2
7
2
6
2
5
2
4
2
3
2
2
2
1
2
0
always
0
01111111 111111 00 +9.9988V
00000000 000001 00 +1.22mV
Digital
value
00000000 000000 00 0V
11111111 111111 00 --1.22mV
10000000 000000 00 --10V
J
