12.95

5.2Axis expansion with the SIMODRIVE 611D closed-loop control module

5-87

E Siemens AG, 2002. All rights reserved

SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition

For connecting the SIMODRIVE 611D closed-loop control module located to the

immediate right of the 810D.

Drive bus cable

Device bus cable

54 105

62

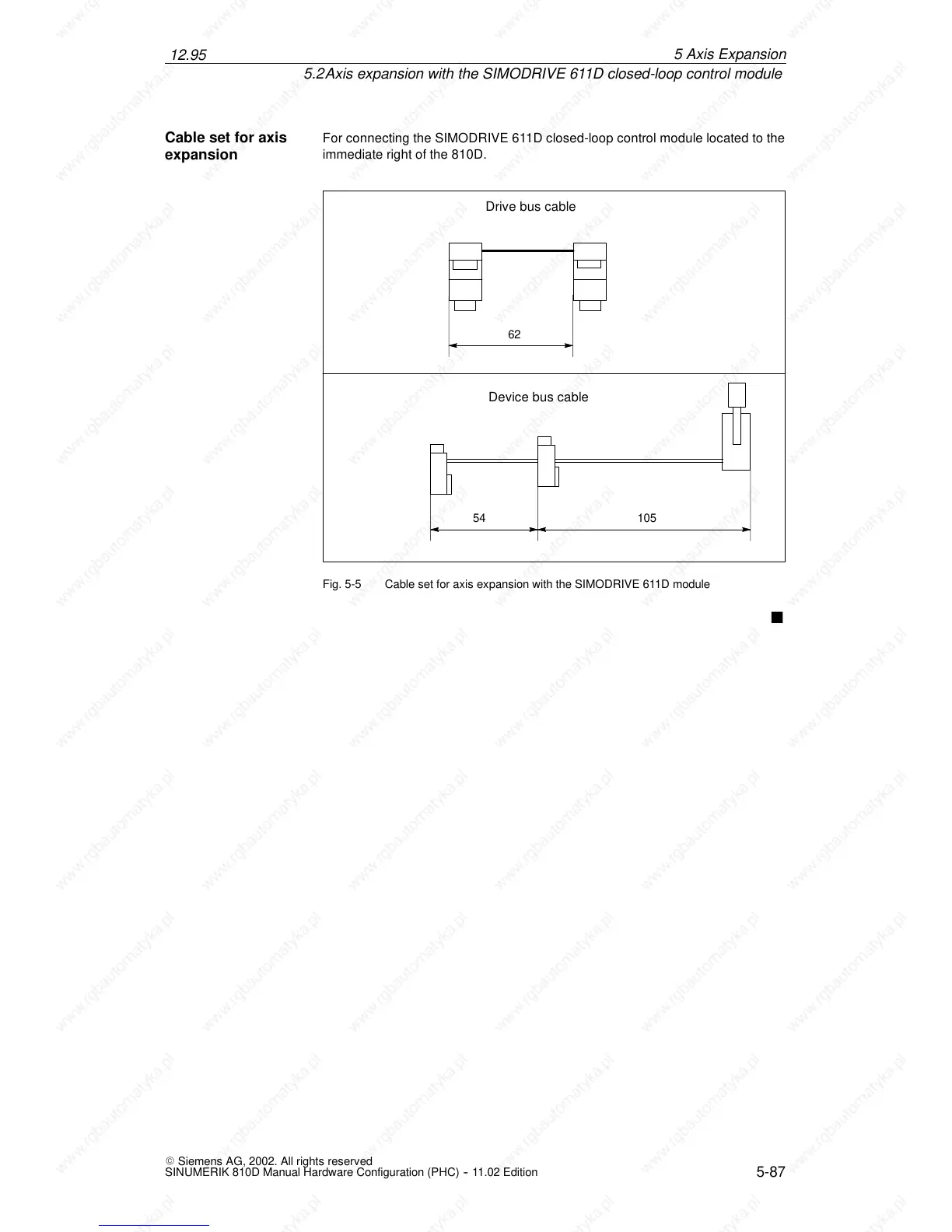

Fig. 5-5 Cable set for axis expansion with the SIMODRIVE 611D module

J

Cable set for axis

expansion

5A

x

i

s

E

x

p

a

n

s

ion
