6-89
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
I/O Modules
6.1 Single I/O module
The single I/O module has 64 inputs and 32 short-circuit-proof outputs
(isolated). Each output has a load rating of 0.5A. The simultaneity factor is 75%.
Up to three single I/O modules can be connected to the SINUMERIK 810D.
Combinations with SIMATIC S7-300 phases are permissible.
The compact I/O module (connector X3 IN) is connected to the SINUMERIK
810D (connector X111). The max. cable length is 10m. Two different cable
versions are available for connecting one single I/O module to the next:
S For installation of one module: 6ES7 368-3jjj0-0AA0
S For single-tier installation of several single I/O modules:
6FC5 411-0AA80-0AA0, length 150mm.
810D
X111
IN OUT
IN OUT
IN OUT
X3
X3
X3
IM 361 or second single I/O module
Terminal strip converter
Terminal strip converter
Terminal strip converter
6ES7 368-3jjj0-0AA0
6FC5 411-0AA80-0AA0, length 150mm
6ES7 368-3jjj0-0AA0
Ribbon cable
Ribbon cable
Ribbon cable
SINUMERIK 810D
6ES7 368-3jjj0-0AA0
Connecting cable shielded for single-tier configuration only
6FC5 411-0AA80-0AA0, length 150mm
X404
32 I
X405
32 I
X402
32O
X3 IN
X3 OUT
Single I/O module
Single I/O module
Single I/O module
Single I/O module

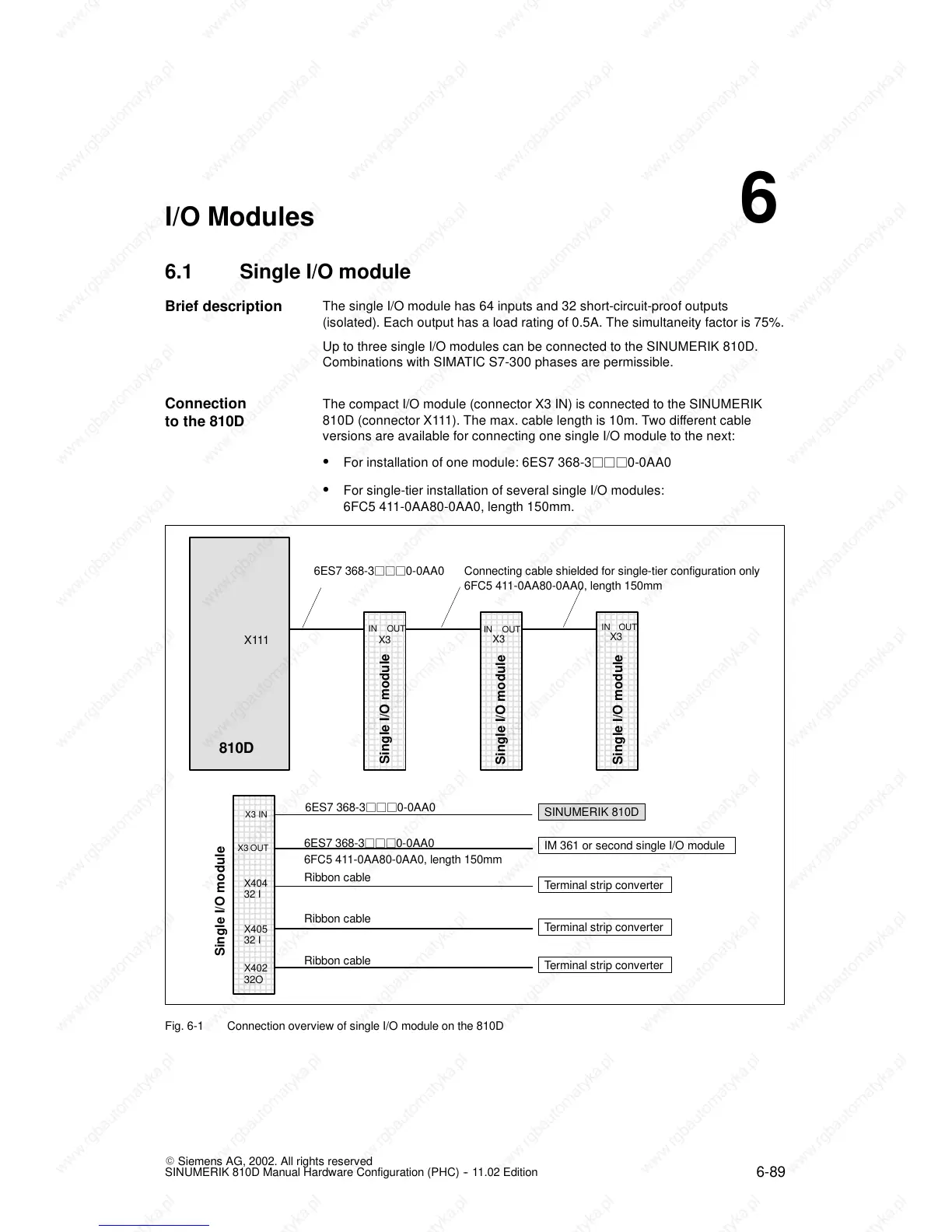

Fig. 6-1 Connection overview of single I/O module on the 810D
Brief description
Connection
to the 810D
6
