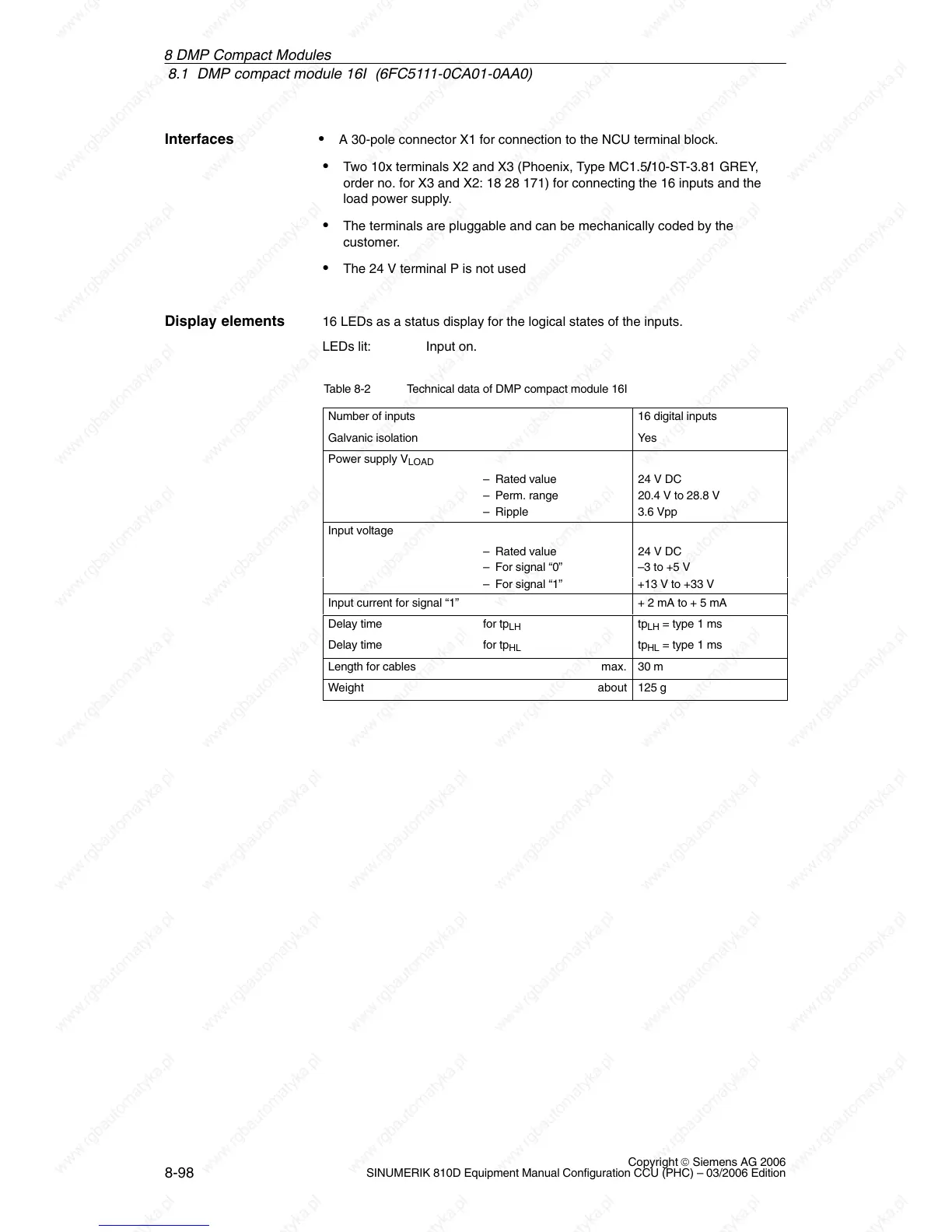

8.1 DMP compact module 16I (6FC5111-0CA01-0AA0)
8-98
Copyright © Siemens AG 2006
SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition
A 30-pole connector X1 for connection to the NCU terminal block.
Two 10x terminals X2 and X3 (Phoenix, Type MC1.5/10-ST-3.81 GREY,
order no. for X3 and X2: 18 28 171) for connecting the 16 inputs and the
load power supply.
The terminals are pluggable and can be mechanically coded by the
customer.
The 24 V terminal P is not used
16 LEDs as a status display for the logical states of the inputs.
LEDs lit: Input on.
Table 8-2 Technical data of DMP compact module 16I
Number of inputs
16 digital inputs
Galvanic isolation Yes
Power supply V
LOAD
– Rated value 24 V DC
– Perm. range 20.4 V to 28.8 V
– Ripple 3.6 Vpp
Input voltage
– Rated value 24 V DC
– For signal “0” –3 to +5 V
– For signal “1” +13 V to +33 V
Input current for signal “1” + 2 mA to + 5 mA
Delay time for tp
LH
tp
LH
= type 1 ms
Delay time for tp
HL
tp
HL
= type 1 ms
Length for cables max. 30 m
Weight about 125 g
Interfaces
Display elements
8 DMP Com
