8.4 DMP compact module 1I analog (6FC5111-0CA04-0AA0)
8-103
Copyright © Siemens AG 2006
SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition
8.4 DMP compact module 1I analog (6FC5111-0CA04-0AA0)
The DMP compact module 1I analog is an encapsulated module. It can be
plugged into a slot of the NCU terminal block as a plug-in module. (Maximum of
4 modules per terminal block) The conversion time is a max. of 60 ms in the
rated range and a max. of 80 ms in the overshoot range.
M2M1
P2P1
24 V DC
6, 1 Shield
2 Current source PT100
3 Analog input In+
4 Analog input In–
5 Ground
X1
Status
LEDs
Fixing
screw
Labeling
strips
POWER
SUPPLY
OK
ANALOG
IN
Connecting terminals
X3
X2
0 V
1
3 2
1
2
S1
S2
2.5
2.5
6..1
Terminal:

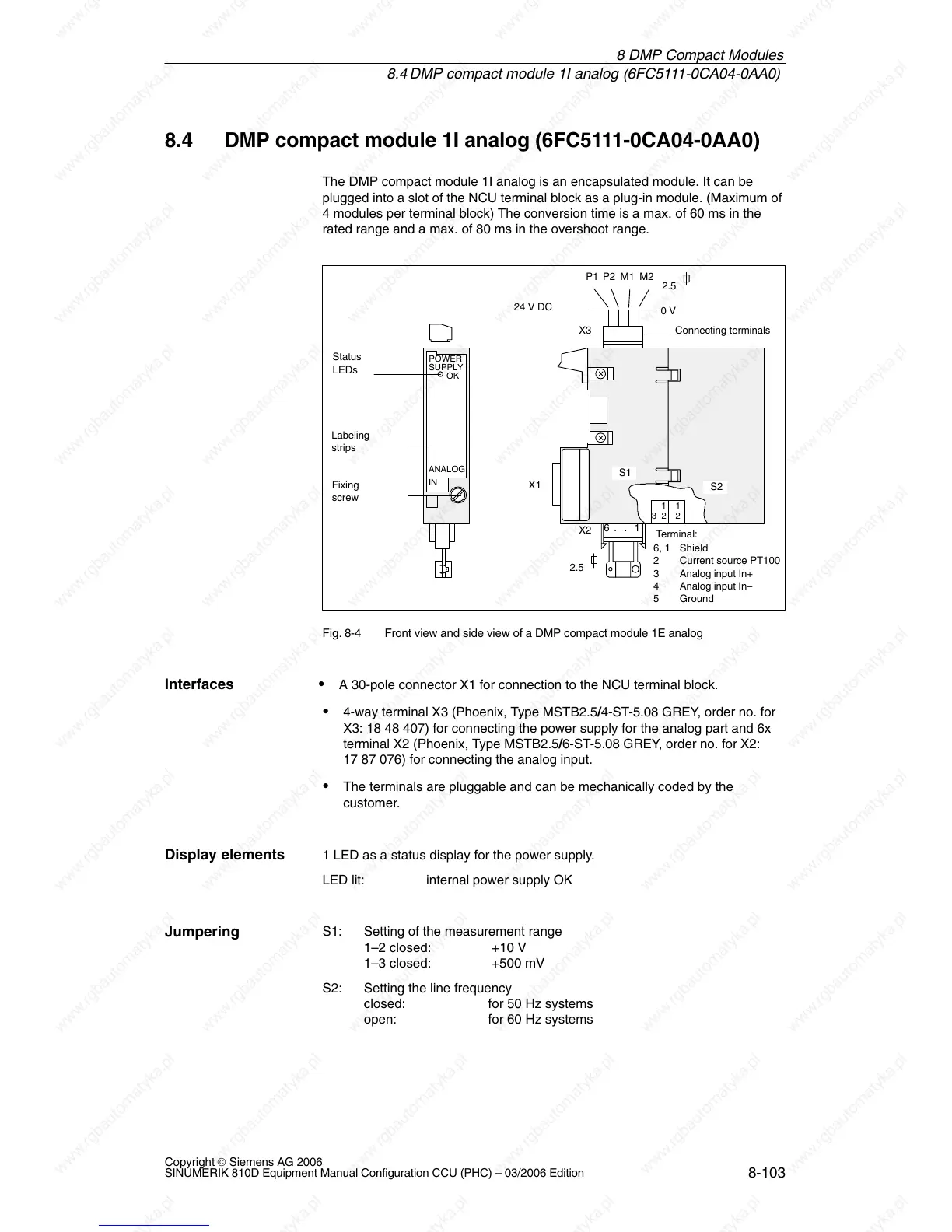

Fig. 8-4 Front view and side view of a DMP compact module 1E analog
A 30-pole connector X1 for connection to the NCU terminal block.
4-way terminal X3 (Phoenix, Type MSTB2.5/4-ST-5.08 GREY, order no. for
X3: 18 48 407) for connecting the power supply for the analog part and 6x
terminal X2 (Phoenix, Type MSTB2.5/6-ST-5.08 GREY, order no. for X2:
17 87 076) for connecting the analog input.
The terminals are pluggable and can be mechanically coded by the
customer.
1 LED as a status display for the power supply.
LED lit: internal power supply OK
S1: Setting of the measurement range
1–2 closed: +10 V
1–3 closed: +500 mV
S2: Setting the line frequency
closed: for 50 Hz systems
open: for 60 Hz systems
Interfaces
Display elements
Jumpering
