3.2 Assembly of the SINUMERIK 810D
3-43
Copyright © Siemens AG 2006
SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition
Mounting the shielding plate
Montage Schirmblech

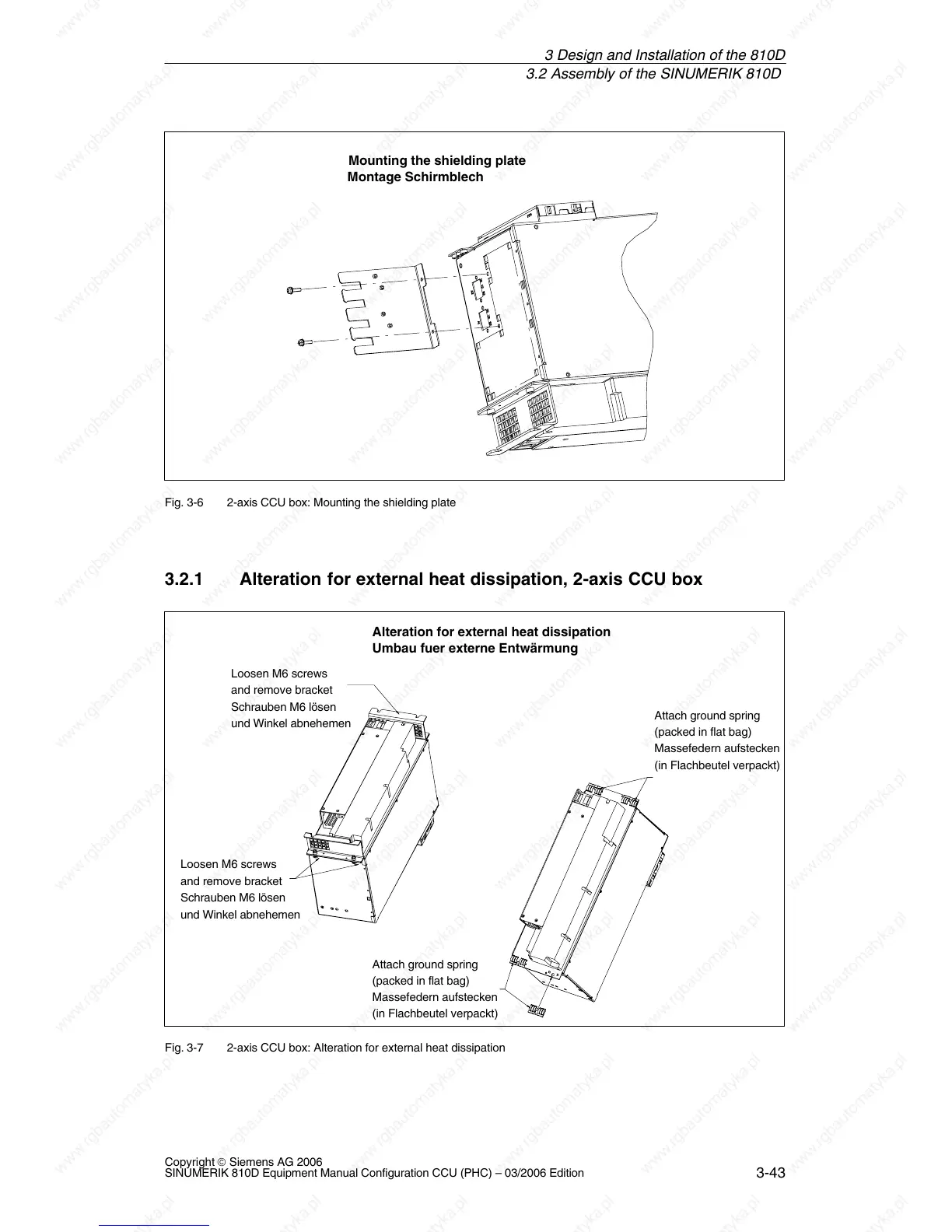

Fig. 3-6 2-axis CCU box: Mounting the shielding plate
3.2.1 Alteration for external heat dissipation, 2-axis CCU box
Alteration for external heat dissipation
Umbau fuer externe Entwärmung
Attach ground spring
(packed in flat bag)
Massefedern aufstecken
(in Flachbeutel verpackt)
Loosen M6 screws
and remove bracket
Schrauben M6 lösen
und Winkel abnehemen
Attach ground spring
(packed in flat bag)
Massefedern aufstecken
(in Flachbeutel verpackt)
Loosen M6 screws
and remove bracket
Schrauben M6 lösen
und Winkel abnehemen
Fig. 3-7 2-axis CCU box: Alteration for external heat dissipation
3 Desi
g
n and Installation of the 810D
