3.2 Assembly of the SINUMERIK 810D
3-44
Copyright © Siemens AG 2006
SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition
ÁÁ
ÁÁ
ÁÁ
Á
Á
Á
Á
Á
Á
Motor cables
Attachment point for
motor brake plug
connection
Shielding plate
Equipotential
bonding
terminal
Equipotential
bonding terminal
Tube clip
A3A2A1
Type of plug connection*
Motor brake:
PHOENIX
Type: MSTB 2.5/2-STF-5.08-BD1-2SO
Order No.: 1863 631
Type: MVSTBU 2.5/2-GFB-5.08
Order No.: 1788 347
*Included with SIEMENS motor
cable
Shield connection

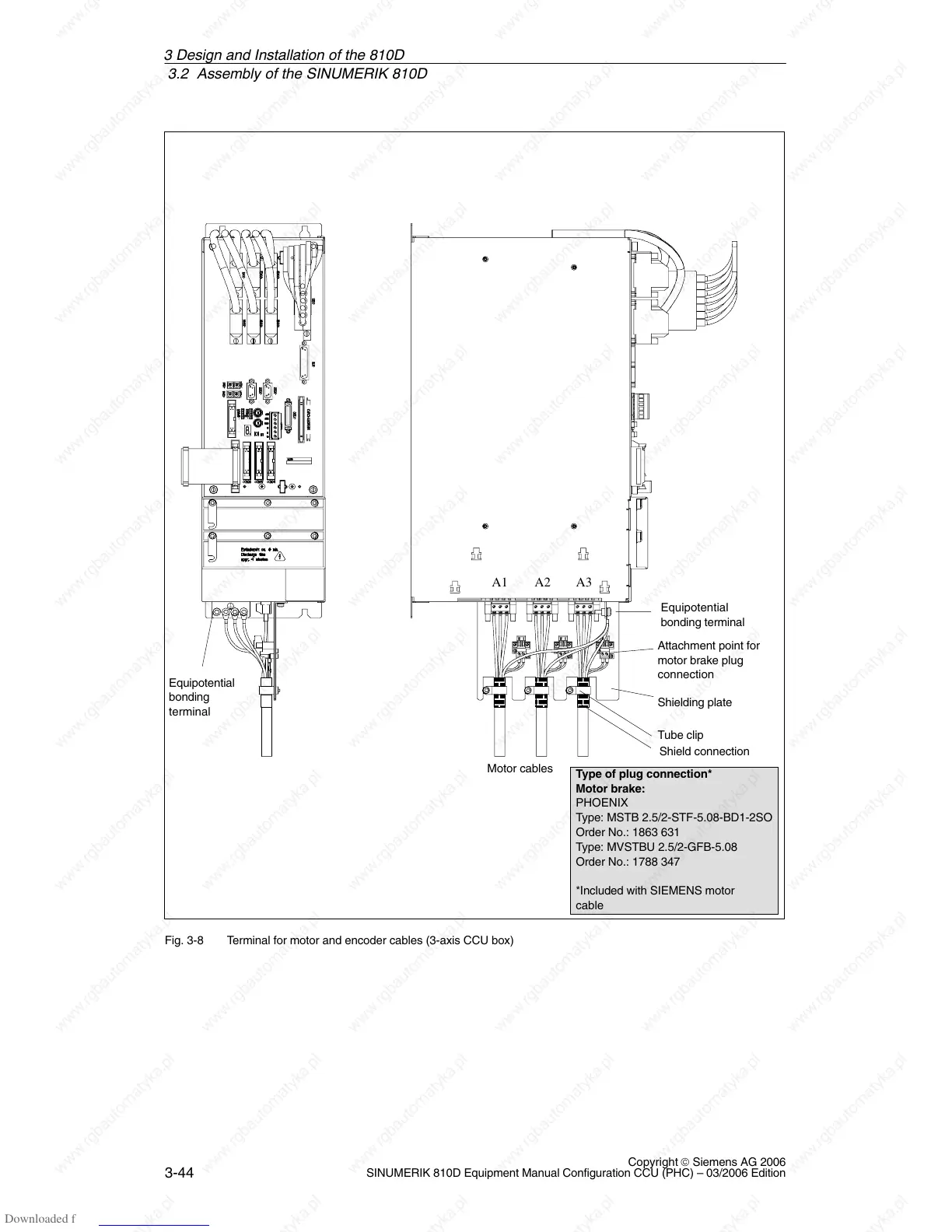

Fig. 3-8 Terminal for motor and encoder cables (3-axis CCU box)
