8.3 DMP compact module 8O (6FC5111-0CA03-0AA2)
8-101
Copyright © Siemens AG 2006
SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition
8.3 DMP compact module 8O (6FC5111-0CA03-0AA2)
The DMP compact module 8O is an encapsulated module. It can be plugged
into a slot of the NCU terminal block as a plug-in module.
X3
765
Outputs
OUT 7 ... OUT 4
X1
4
Status
LEDs
Fixing
screw
Labeling
strips
Outputs
OUT 0 ... OUT 3
0V
X2
0
.
.
7
X3
X2
24 V
LOAD
DC 2.5
210
0V
24 V
LOAD
DC 2.5
PM
PM3
M = GND

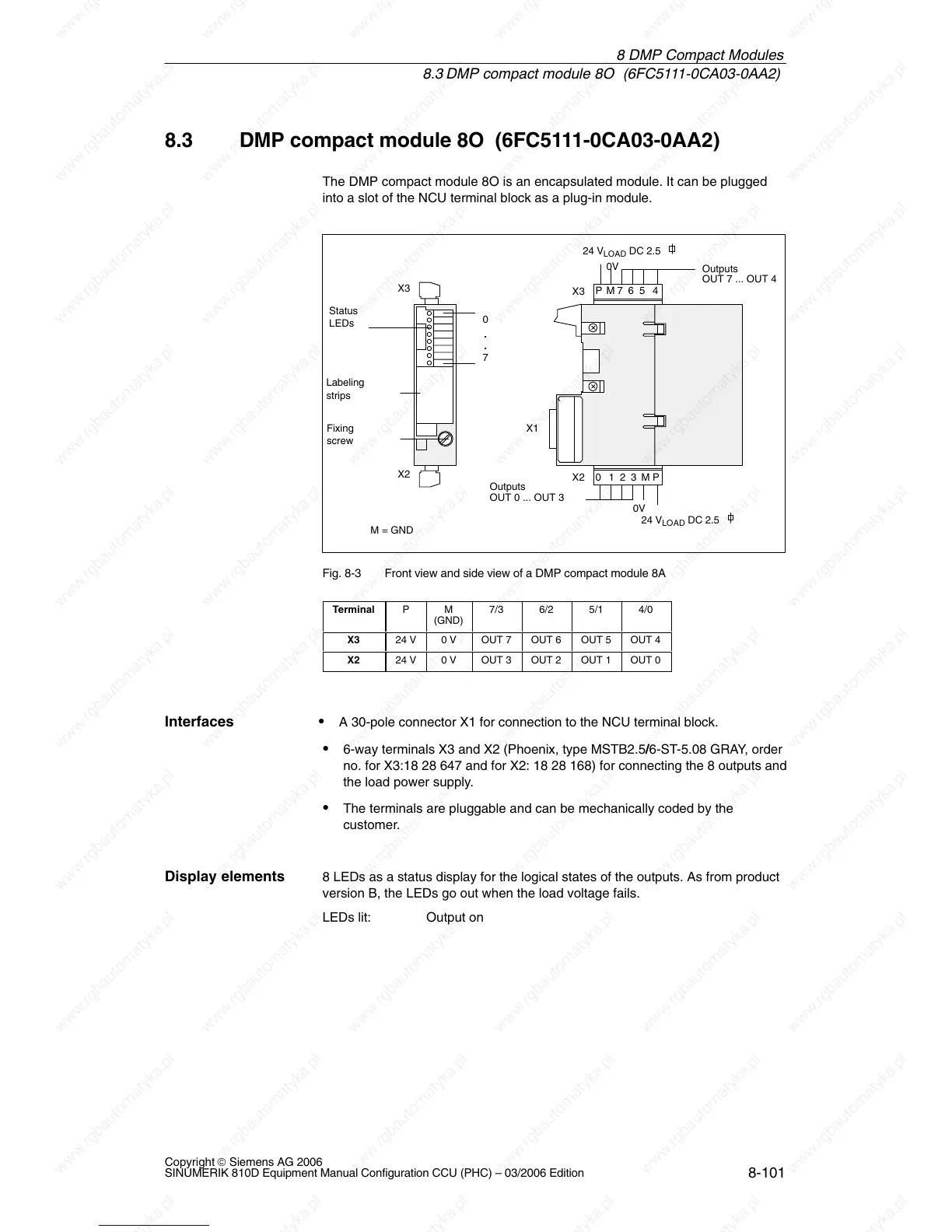

Fig. 8-3 Front view and side view of a DMP compact module 8A
Terminal P M
(GND)
7/3 6/2 5/1 4/0
X3 24 V 0 V OUT 7 OUT 6 OUT 5 OUT 4
X2 24 V 0 V OUT 3 OUT 2 OUT 1 OUT 0
A 30-pole connector X1 for connection to the NCU terminal block.
6-way terminals X3 and X2 (Phoenix, type MSTB2.5/6-ST-5.08 GRAY, order
no. for X3:18 28 647 and for X2: 18 28 168) for connecting the 8 outputs and
the load power supply.
The terminals are pluggable and can be mechanically coded by the
customer.
8 LEDs as a status display for the logical states of the outputs. As from product
version B, the LEDs go out when the load voltage fails.
LEDs lit: Output on
Interfaces
Display elements
8 DMP Com
