1.2 System configuration
1-14
Copyright © Siemens AG 2006
SINUMERIK 810D Equipment Manual Configuration CCU (PHC) – 03/2006 Edition
MCP
Diskette
unit
Operator panel front
Axis
expansion
plug-in
unit
I/R
FSD FSD
Handwheel (2x)
Measurement (2x) *)
Cable
distributor
Single
I/O module
810D
2x
Motor encoder
cable
Terminal block
Motors
e.g. 1FNx, 1FEx, 1FKx
Distributor box
Motor cable
QWERTY
keyboard
5x
OI
or
2x
1x
PCU
MPI
cable
SIMATIC
IM cable
611
power
module
Encoder cable
direct
measuring system
Direct measuring
system
(e.g. on the X416)
SIMATIC
Profibus I/O
ÄÄ
ÄÄ
Handheld
unit
Handheld unit or mini handheld unit or HT 6
14
15
14
*) One measurement input can be replaced by a 3rd handwheel
HT 6
16
17
(CCU3)
Axis
expansion
plug-in
unit
1x
MSD
* TEMP
* POWER
SINUMERIK

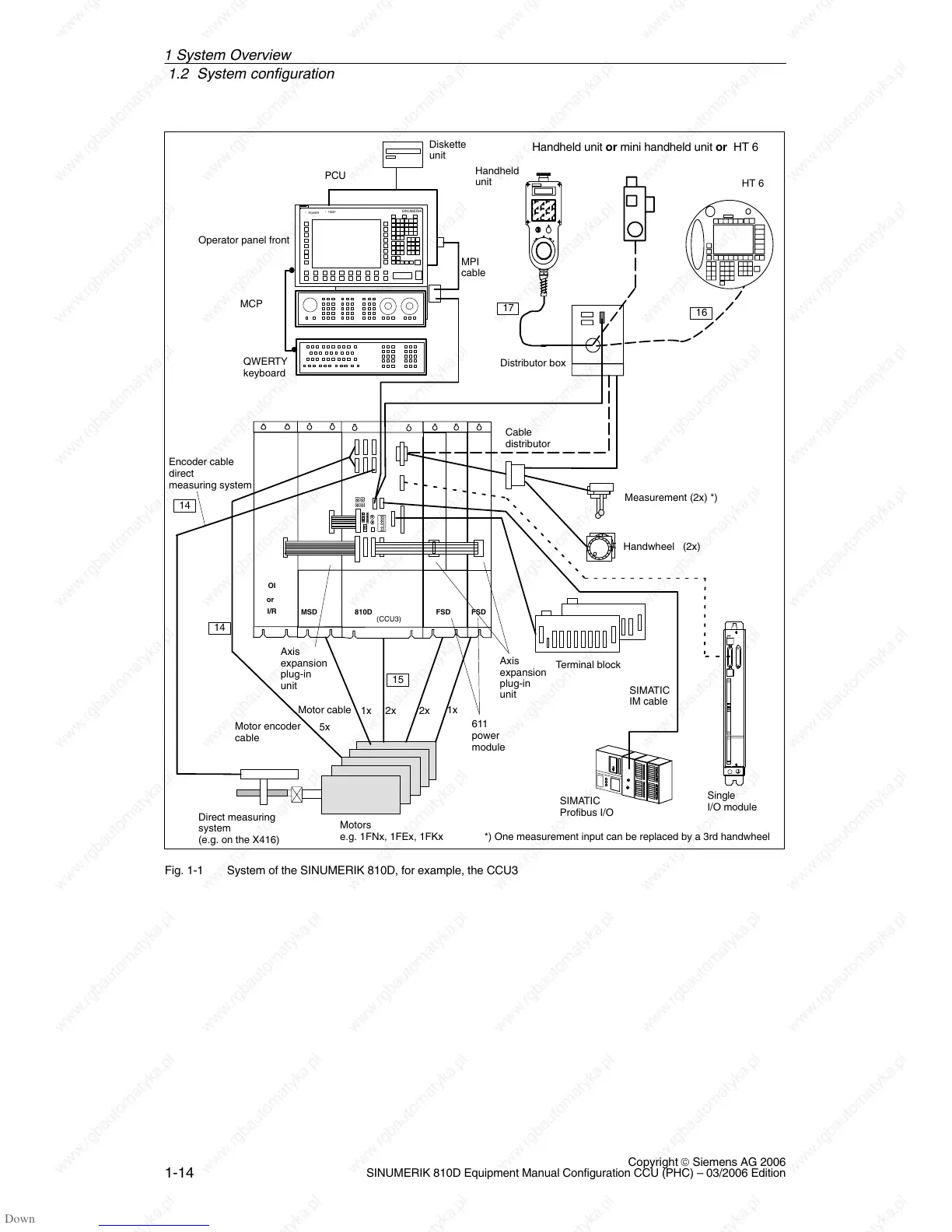

Fig. 1-1 System of the SINUMERIK 810D, for example, the CCU3
1 S
y
stem Overview
